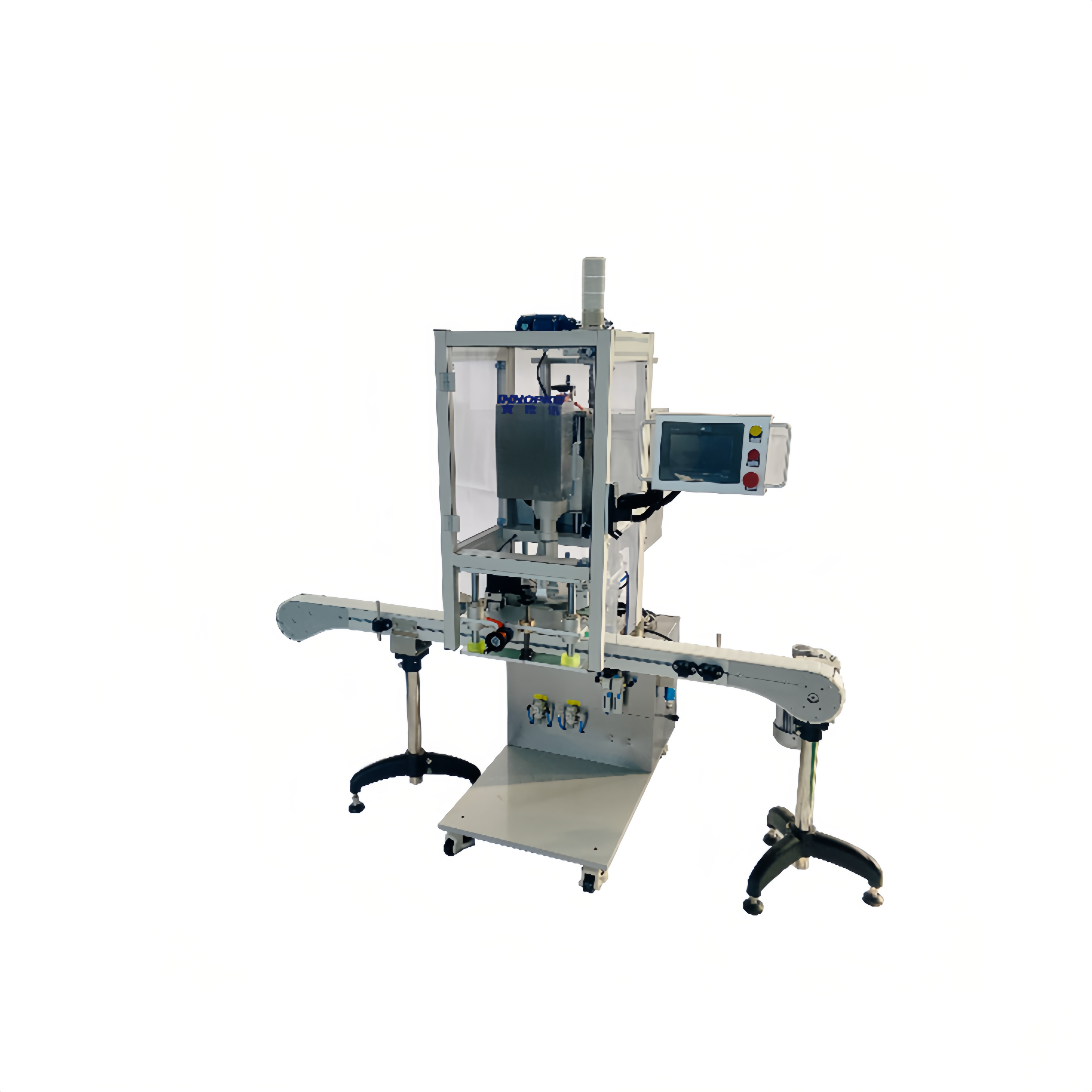

Product Features:
1: Compatible with most cap types
Suitable for round screw caps and pump-type caps.
2: Silicone-lined gripping jaws
Two silicone-coated jaws prevent slippage and protect caps from scratches.
3: Servo-controlled torque head
Accurate torque and speed control via servo system ensures consistent capping.
4: Compact and space-saving
Single-head capping design; small footprint for flexible operation.
5: Adjustable jaw height
Quickly adjusts to fit bottles of different heights.
6: Easy integration with conveyor lines
Can be mounted directly on existing conveyor for seamless workflow.
7: Up to 30 bottles per minute
Efficient for daily operations of small to mid-size enterprises.
Technical Parameter
| Cap Size | Ø25-Ø60mm |
| Container Dimension | 20～110mm |
| Container Height | 80～210 mm |
| power Supply | 220v AC 50/60Hz |
| power | 800W |
| Air Pressure | 0.5～0.7MP |
| Air Consumption | 200L/min |
| Dimensions | 930mm(L) x 710mm(W) x 910 mm(H) |
| Weight | 90KG |
