KENT KGS-4080WM1 Precision Programmable Surface Grinder (Used)
Used Taiwan-built KENT KGS-4080WM1 three-axis programmable surface grinder — 800×400 mm magnetic chuck, Mitsubishi PLC touch control, Z-axis AC servo auto downfeed to 0.001 mm and a mirror finish of Ra 0.16–0.4 μm. Inspected and export-ready for Thai mold, precision-tooling and jig shops.
- Brand
- KENT / 建德
- Model
- KGS-4080WM1
- Location
- China → Thailand (export-ready)
- Availability
- Available
Price
Price is member-only
Create a free account and verify your email to see the price for this machine.
Prefer not to register? Message us on WhatsApp or email and we'll send the price and condition report directly.
Description

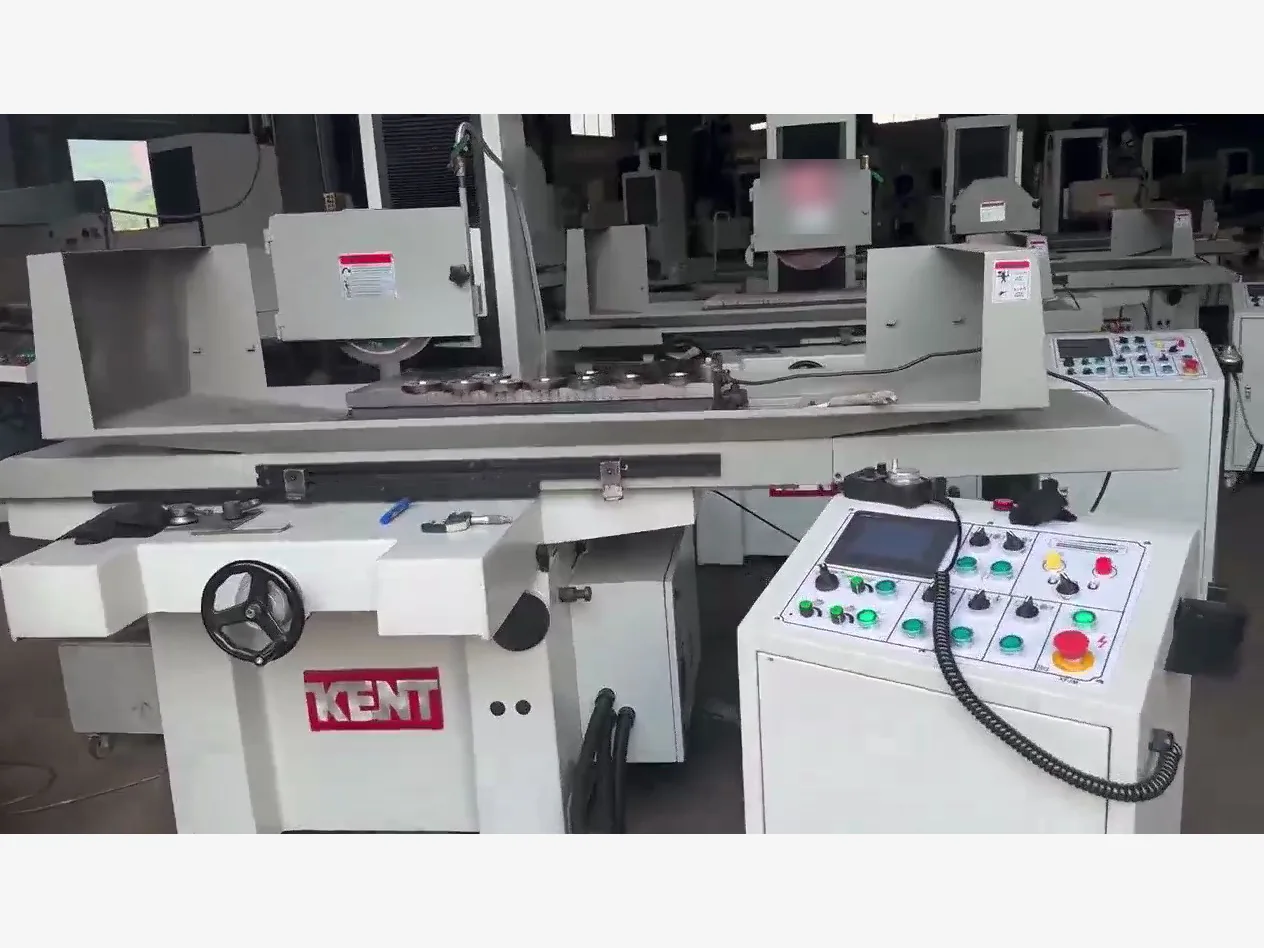

The KGS-4080WM1 is the 'precision servo three-axis production' grade of KENT's 4080 large wet-grinding series: X hydraulic reciprocation, Y hydraulic auto in-feed and a Z-axis AC servo for programmable auto downfeed. A Mitsubishi PLC touch pendant stores multiple grinding recipes (rough allowance, finish allowance, spark-out dwell, reciprocation count) for unattended batch cycles that auto-stop on completion and survive a power cut. The Meehanite double-wall casting is long-cycle stress-relieved; X/Y hard rails carry hand-scraped Turcite-B for crawl-free, low-vibration grinding of large plates. Built for long stamping dies, plastic mold frames, hydraulic backing plates and precision inserts — a staple of the Chonburi / Rayong mold cluster, where local agents stock servo, PLC and spindle-bearing spares. Ships export-ready from China; verified buyers receive a per-unit condition report and quotation.
Specifications
- Body
- Meehanite double-wall casting, stress-relieved; hand-scraped Turcite-B hard rails
- Control
- Mitsubishi PLC touch; X hydraulic, Y hydraulic auto-feed, Z servo auto-downfeed
- T-slots
- 14 mm × 3
- Flatness
- ≤ 0.003 mm / 400 mm
- X travel
- 920 mm (hydraulic reciprocation, 5–25 m/min stepless)
- Y travel
- 450 mm (auto in-feed 0.1–10 mm/pass, rapid 1,190 mm/min)
- Z travel
- 580 mm (optional 780 mm), AC servo, rapid 220 mm/min
- Footprint
- 3,600 × 2,750 mm
- Net weight
- 3,500 kg
- Parallelism
- ≤ 0.004 mm full table
- Spindle motor
- 7.5 HP (5.5 kW), 1,450 rpm @ 50 Hz
- Grinding wheel
- Φ355 × 20–40 × Φ127
- Machine height
- 1,880 mm
- Hydraulic motor
- 3 HP, forced circulating lubrication with low-oil alarm
- Spindle bearing
- CP4 precision angular; face runout < 0.002 mm
- Surface finish Ra
- 0.16–0.4 μm (mirror-capable)
- Handwheel graduation
- 0.002 mm/div; MPG micro-feed 0.001 mm
- Auto downfeed per pass
- 0.001–0.099 mm
- Table load (incl. chuck)
- 700 kg
- Worktable / magnetic chuck
- 800 × 400 mm
- Table-to-spindle-center height
- 580 mm
