2000kg Pallet AGV Stacker
The Automated Guided Vehicle (AGV) Pallet Stacker is designed for efficient, safe, and intelligent material handling in modern warehouses, logistics centers, and manufacturing facilities. It supports a load capacity range from 1000kg to 2000kg and a lifting height up to 5.5 meter

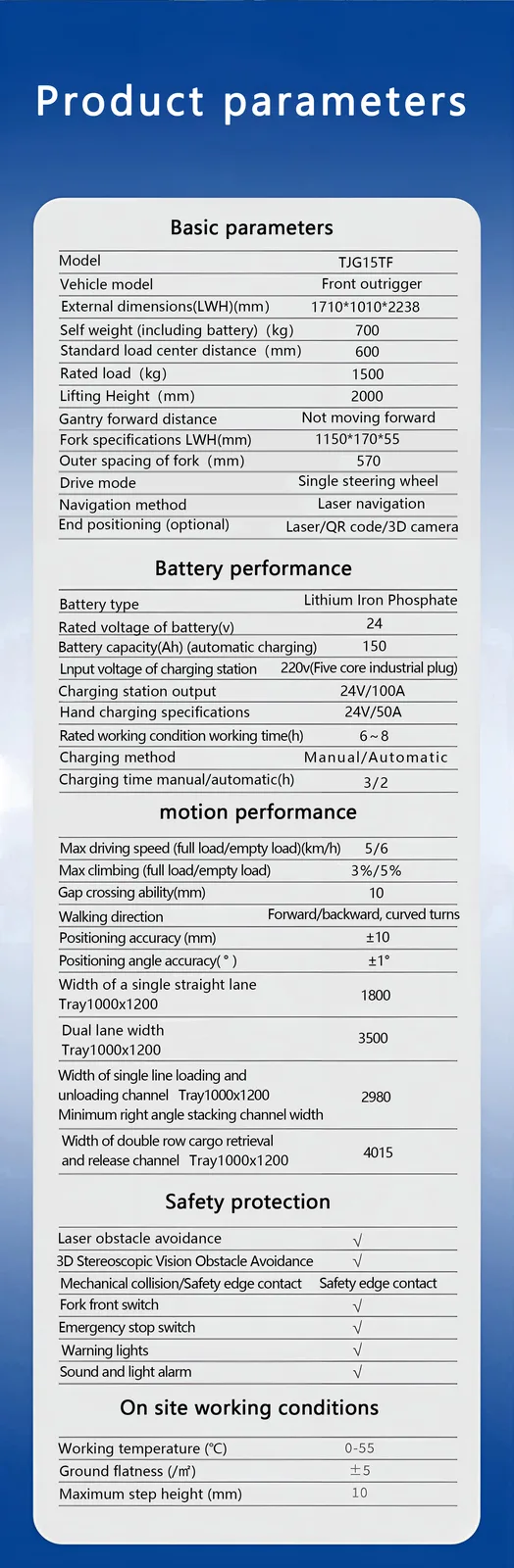

Specifications
- Category
- Details
- Drive Mode
- Single Steering Wheel
- Battery Type
- Lithium Iron Phosphate
- Vehicle Type
- Front Outrigger
- Working Time
- 6–8 hours
- Charging Mode
- Manual / Automatic
- Charging Time
- 3 h (Manual) / 2 h (Automatic)
- Rated Voltage
- 24 V
- Lifting Height
- 2000 mm
- Battery Capacity
- 150 Ah
- Navigation Method
- Laser Navigation
- Walking Direction
- Forward / Backward / Curved Turns
- Fork Outer Spacing
- 570 mm
- Rated Load Capacity
- 1500 kg
- Gap Crossing Ability
- 10 mm
- Load Center Distance
- 600 mm
- Positioning Accuracy
- ±10 mm
- Charging Station Output
- 24 V / 100 A
- Fork Dimensions (L×W×H)
- 1150 × 170 × 55 mm
- End Positioning (Optional)
- Laser / QR Code / 3D Camera
- Positioning Angle Accuracy
- ±1°
- External Dimensions (L×W×H)
- 1710 × 1010 × 2238 mm
- Manual Charging Specification
- 24 V / 50 A
- Charging Station Input Voltage
- 220 V (Five-core industrial plug)
- Double Row Cargo Channel Width
- 4015 mm
- Self Weight (Including Battery)
- 700 kg
- Dual Lane Width (Tray 1000×1200)
- 3500 mm
- Single Line Loading Channel Width
- 2980 mm
- Single Lane Width (Tray 1000×1200)
- 1800 mm
- Maximum Driving Speed (Full/Empty Load)
- 5 / 6 km/h
- Maximum Climbing Ability (Full/Empty Load)
- 3% / 5%
- Minimum Right Angle Stacking Channel Width
- 2980 mm
