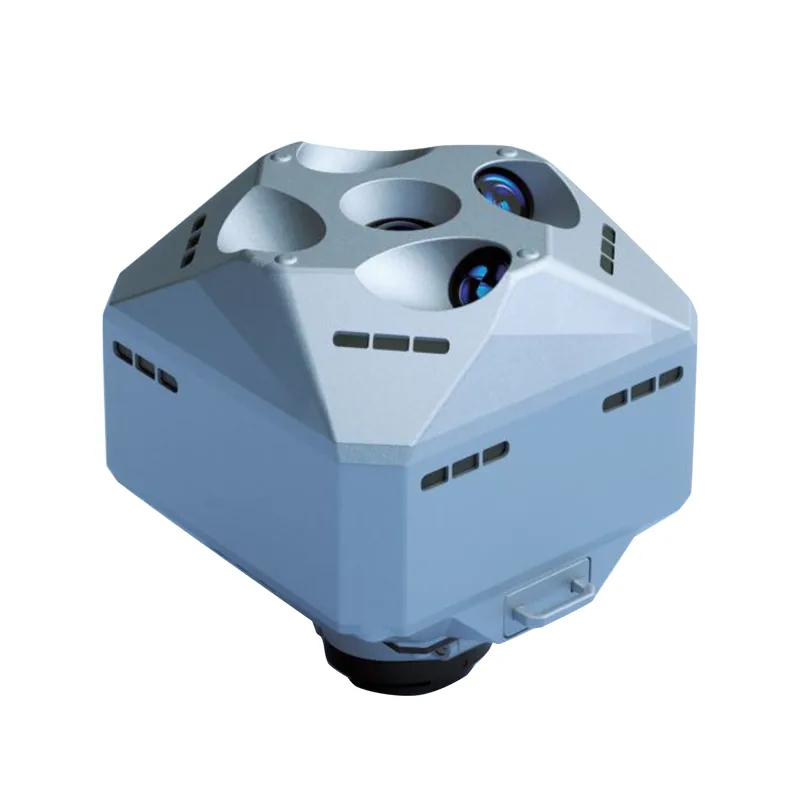

12.6MP Oblique Aerial Survey Drone
This high-precision 12.6MP tilt-photography camera module is designed for professional aerial mapping, 3D modeling, land surveying, and smart-city applications. The system integrates five APS-C sensors with a mechanical global shutter, delivering high-accuracy, distortion-free im
Specifications
- Item
- Details
- Color
- Cool gray
- Weight
- 648 g
- Aperture
- F5.6
- ISO Range
- 50–3200
- Dimensions
- 107 × 107 × 125 mm
- Pixel Count
- 126 MP total (25.2 MP × 5 cameras)
- Sensor Size
- APS-C (23.1 × 15.4 mm)
- Focal Length
- Downward: 28 mm / Tilt: 40 mm
- Photo Format
- JPG
- Shutter Type
- Mechanical global shutter
- Shutter Speed
- 1/2000 s
- Shell Material
- Aerospace-grade aluminum alloy
- Storage Capacity
- 640 GB built-in
- Number of Cameras
- 5 (oblique + downward)
- Pitch Angle Range
- Adjustable 8°–24°
- Sensor Pixel Size
- 3.76 μm
- Storage Temperature
- -20°C to 60°C
- Operating Temperature
- -10°C to 50°C
- Minimum Photo Resolution
- 6144 × 4096
