140-Ton Hydraulic Injection Molding Machine
This 140 ton hydraulic injection molding machine is designed for stable and efficient production of medium-sized thermoplastic parts such as plastic electric box covers and industrial enclosures. Featuring a horizontal clamping structure and a reliable hydraulic drive system, it
Specifications
- Structure
- Horizontal
- Inspection
- Machinery test report and video inspection available
- Application
- Electric box covers, industrial plastic housings
- Screw Speed
- 1–240 rpm
- Machine Type
- Hydraulic
- Plastic Type
- Thermoplastic
- Ejector Force
- 42 kN
- Clamping Force
- 140 Ton

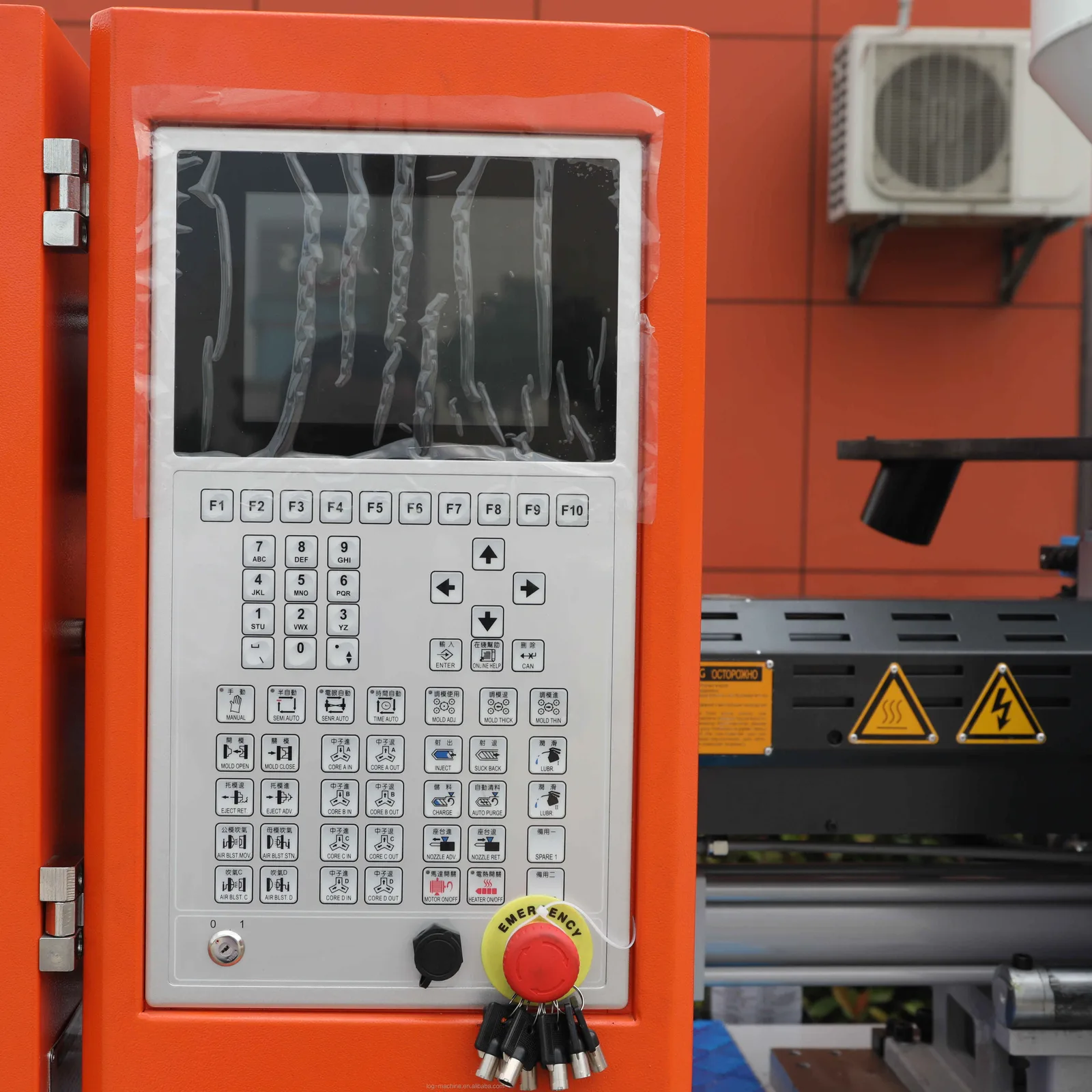

- Control System
- PLC-controlled automatic operation
- Ejector Number
- 5
- Ejector Stroke
- 120 mm
- Injection Rate
- 144 g/s
- Machine Weight
- 4,300 kg
- Screw Diameter
- 42 mm
- Installed Power
- 23 kW
- Screw L/D Ratio
- 20
- Injection Weight
- 239 g
- Mold Height Range
- 150–450 mm
- Mold Opening Stroke
- 380 mm
- Compatible Materials
- PP, PC, ABS, PET, PVC, HDPE, PA, blended plastics
- Plasticizing Capacity
- 144 g/s
- Theoretical Shot Volume
- 263 cm³
- Distance Between Tie Bars
- 460 × 410 mm
- Machine Dimensions (L×W×H)
- 4.6 × 1.25 × 2.0 m
