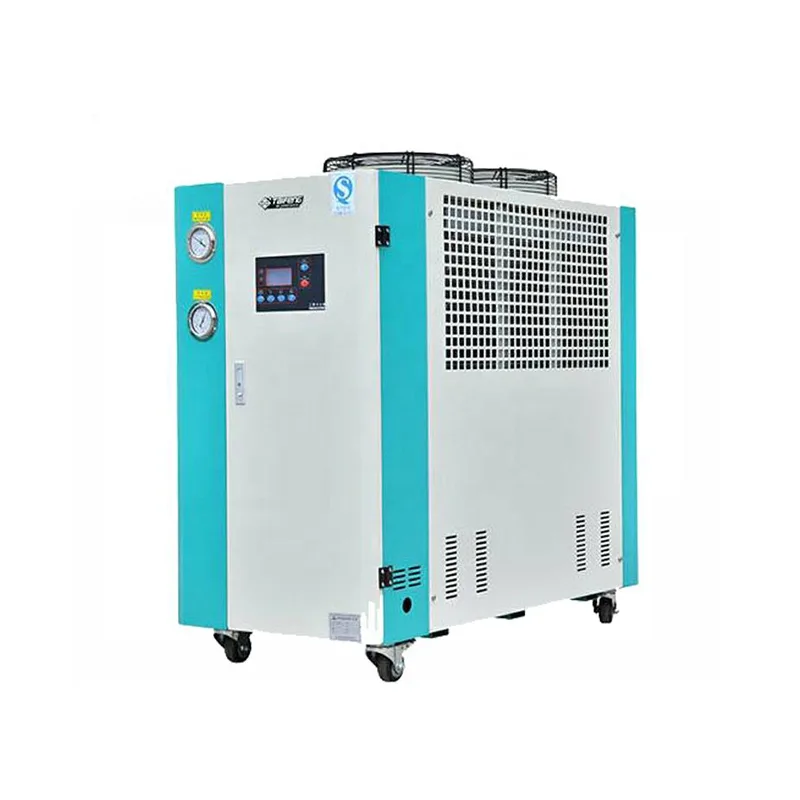

20HP Air-Cooled Industrial Chiller
This 20HP air-cooled industrial chiller is designed to provide stable and efficient cooling for industrial production and equipment operation. Featuring an independent air-cooled heat dissipation system, it operates without the need for cooling towers or external water circulatio
Specifications
- Lift
- 25 m
- Weight
- Approx. 550 kg
- Voltage
- 380 V / 3 Phase / 50 Hz
- Warranty
- 1 Year
- Condition
- New
- Fan Power
- 550 W × 2
- Noise Level
- ≤ 79 dB(A)
- Refrigerant
- R22
- Control Mode
- Automatic Temperature Control
- Power Rating
- 20 HP
- Product Type
- Air-Cooled Industrial Chiller
- Cooling Method
- Air-Cooled
- Pipe Connection
- 2″ – 2½″
- Water Pump Flow
- Approx. 8.84 m³/h
- Compressor Power
- 20 HP
- Fan Configuration
- Dual Fans
- Power Consumption
- Approx. 5.14 kW
- Safety Protection
- Overload / High & Low Pressure / Time Delay
- Water Tank Capacity
- Approx. 420 L
- Dimensions (L×W×H)
- 900 × 2200 × 1950 mm
- Refrigeration Capacity
- Approx. 51.4 kW
- Working Temperature Range
- 5 – 35 ℃
