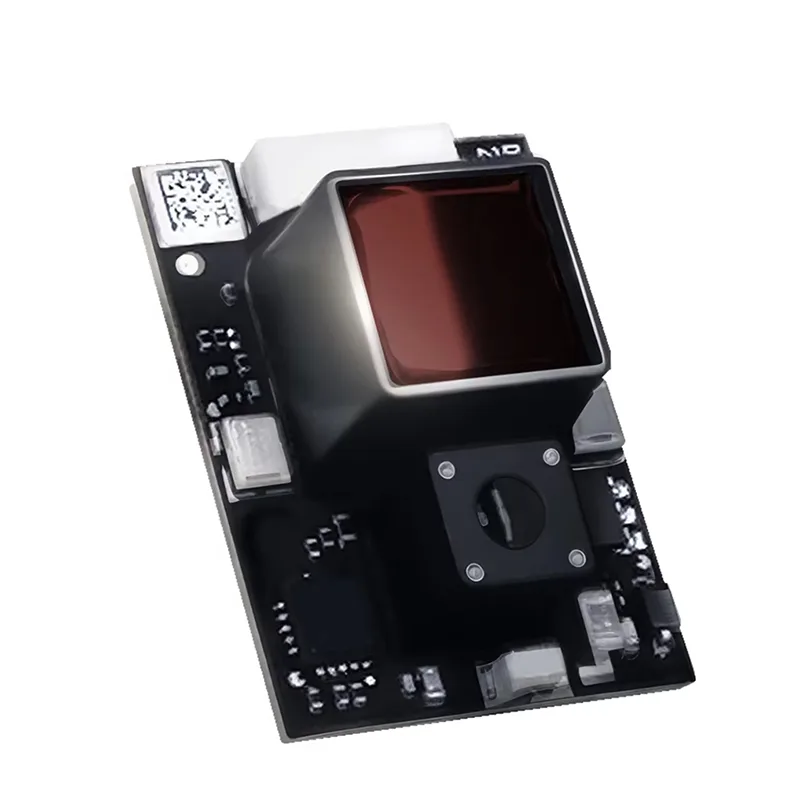

20m DToF LiDAR Ranging Module
This compact 20m dToF laser ranging module integrates a high-sensitivity infrared SPAD sensor and advanced algorithms, including time-correlated photon threshold processing, histogram analysis, and fast TDC architecture. It delivers high-precision ranging performance with strong
Specifications
- Color
- As shown
- Material
- PCB
- Condition
- New
- Precision
- High-precision ranging with reflectivity correction
- Interfaces
- Supports I2C and UART
- Application
- Micro dToF ranging applications
- Module Size
- Small & lightweight design
- Sensor Type
- Infrared-enhanced SPAD sensor
- Package Type
- Compact optical LGA package
- Power Supply
- Single 3.3V input
- Product Type
- Integrated dToF Laser Ranging Module
- Package Options
- 1 × Laser Sensor Module / 2 × Laser Sensor Module
- Ranging Distance
- Up to 20 meters
- Algorithm Integration
- Time-correlated photon threshold algorithm; Histogram statistical algorithm; Fast TDC architecture
- Ambient Light Resistance
- 12m @ 160K Lux
- Temperature Compensation
- Built-in temperature compensation
