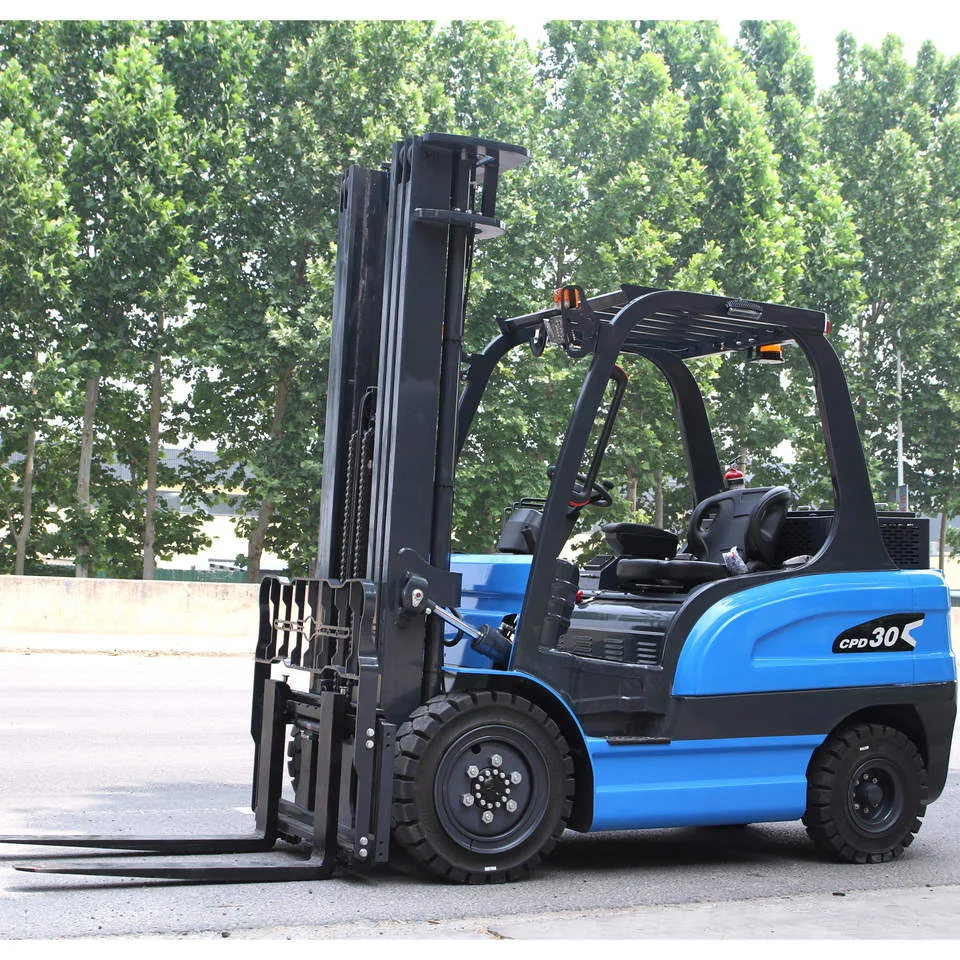

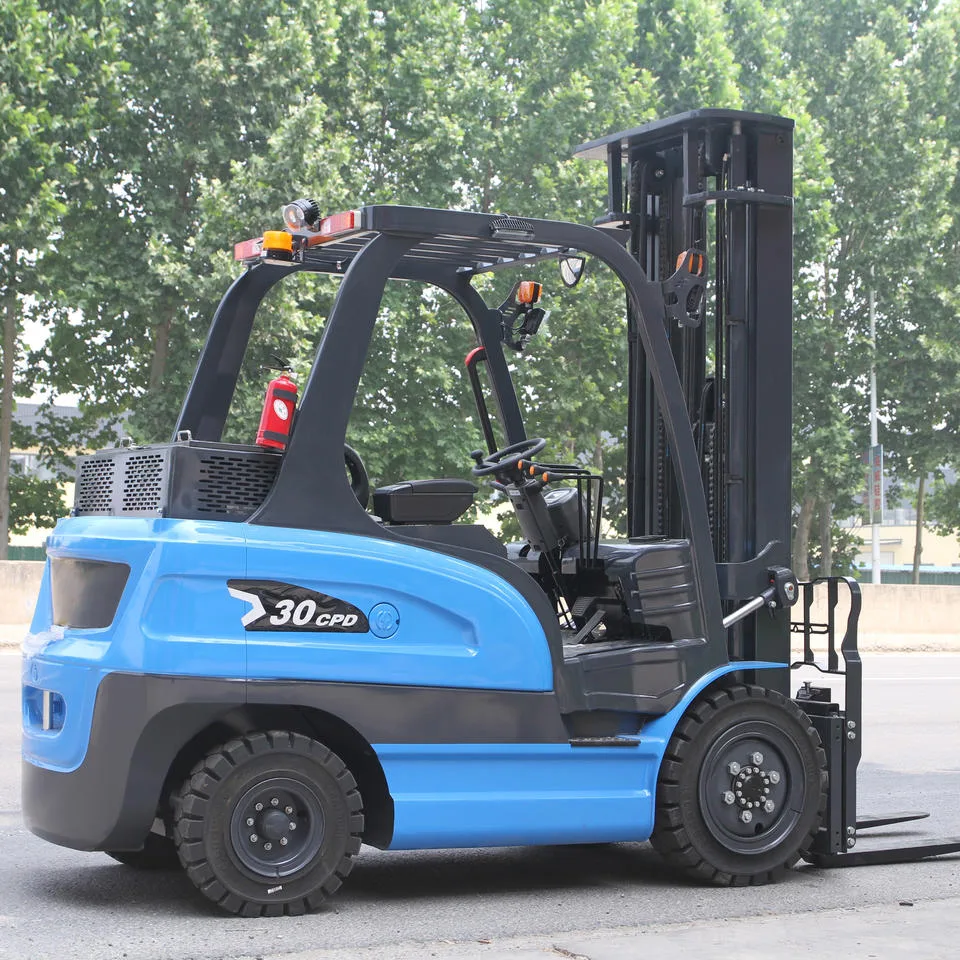

3-Ton Electric Stacker Forklift

This 3-ton full electric pallet truck stacker is designed for high-intensity warehouse and logistics applications. With a maximum lifting height of 4060 mm and a powerful electric drive system, it supports fast pallet handling, stacking, and transport operations. Its compact turn

Specifications

Item
Details
Wheelbase
1740 mm
Power Type
Electric
Application
Warehouses, logistics centers, factories, distribution hubs
Overall Size
3855 × 1230 × 2210 mm
Product Type
Full Electric Pallet Truck Stacker / Electric Forklift
Travel Speed
12 km/h
Machine Weight
4.2 tons
Operating Mode
Electric driving + electric lifting
Turning Radius
2480 mm
Fork Dimensions
1070 × 122 × 45 mm
Max Lifting Height
4060 mm
Rated Loading Capacity
3 tons
Lifting Speed (Laden/Unladen)
0.26 / 0.32 m/s
Lowering Speed (Laden/Unladen)
0.38 / 0.36 m/s
