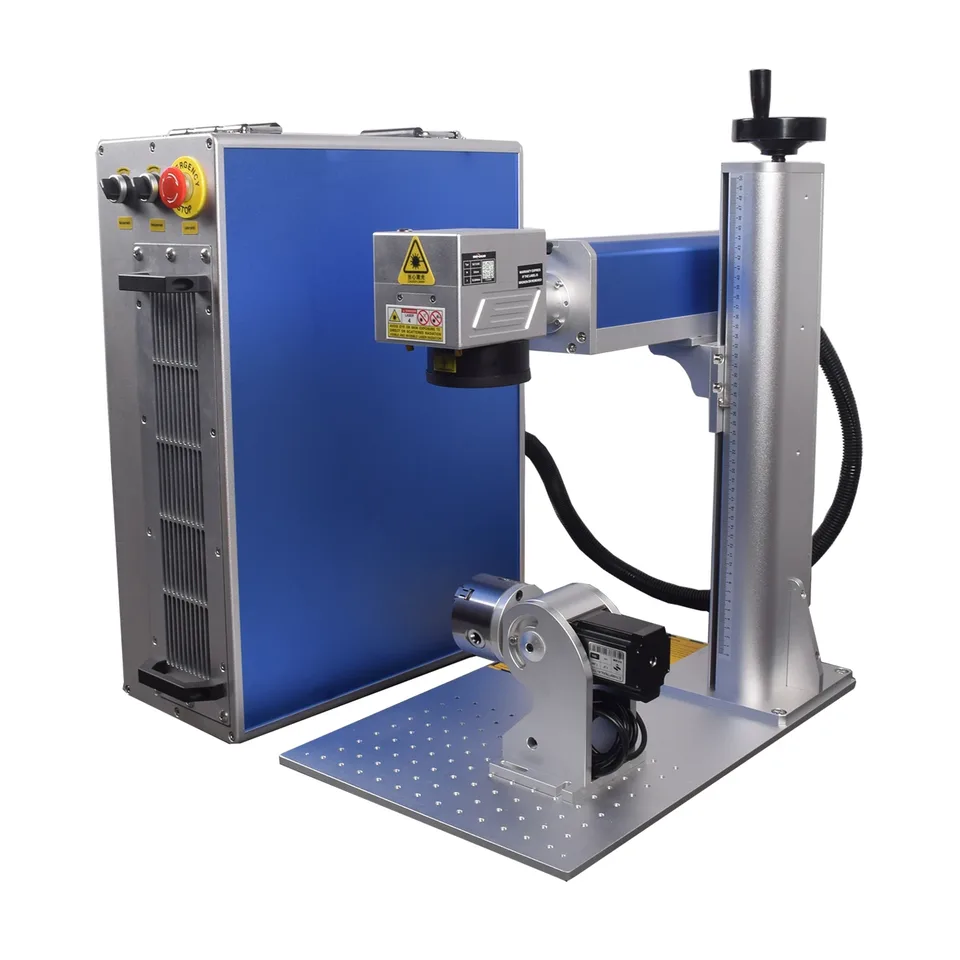

300W MOPA Fiber Laser Marking Machine
The 300W MOPA Fiber Laser Marking Machine delivers high-speed, high-precision marking performance for metals and selected non-metal materials. Featuring a 1064nm wavelength, up to 8000mm/s marking speed, and a stable air-cooled MOPA laser source, this system is ideal for deep mar
Specifications
- Voltage
- 110V / 220V optional
- Condition
- New
- Frequency
- 50Hz / 60Hz
- Laser Type
- Fiber Laser (MOPA)
- Key Feature
- High Safety Level
- Focus System

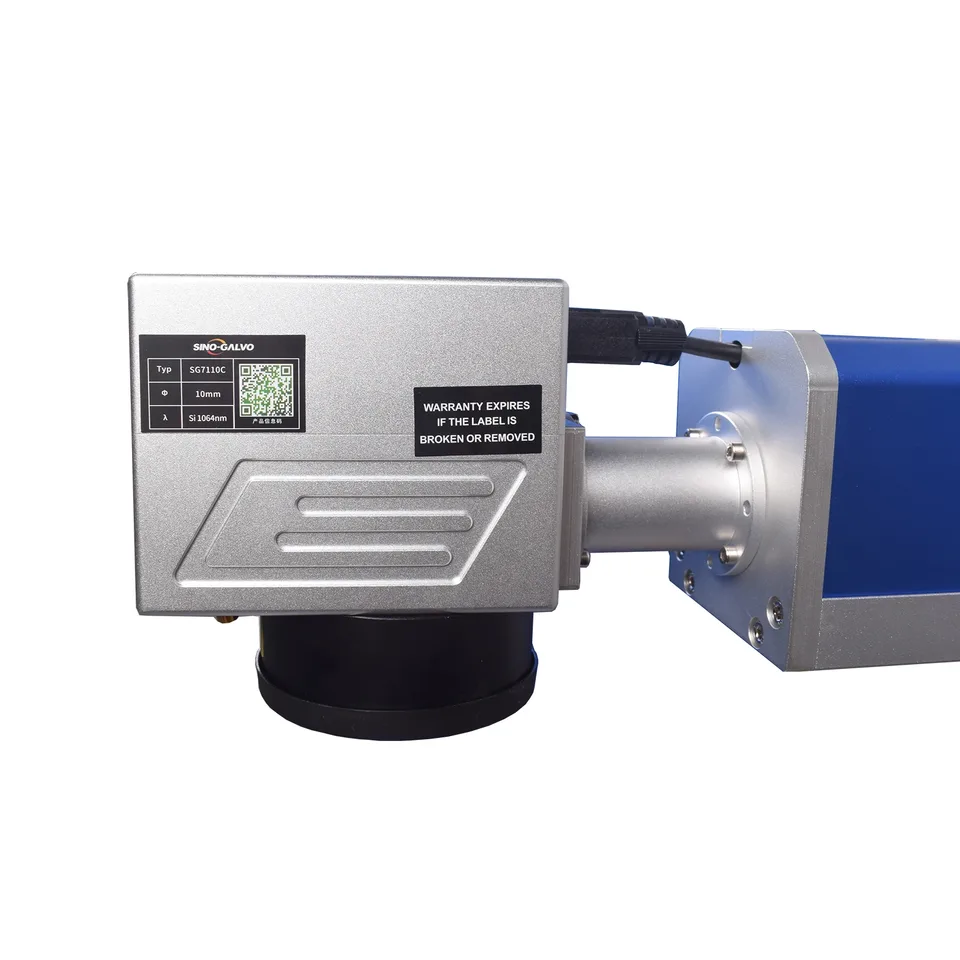

- Red-light focus, high-precision galvo scanner
- Lens Options
- 110×110mm / 200×200mm / 300×300mm
- Marking Area
- 110×110mm / 200×200mm / 300×300mm
- Marking Speed
- ≤8000 mm/s
- Cooling System
- Air Cooling
- Machine Weight
- 60 kg
- Operation Mode
- Continuous Wave
- Core Components
- Engine / PLC / Electronic System
- Control Software
- EzCad 2.1
- Laser Wavelength
- 1064 nm
- Working Accuracy
- 0.01 mm
- Applicable Metals
- Stainless steel / Aluminum / Brass / Iron / etc.
- Fiber Laser Power
- 300W MOPA
- Machine Structure
- Stand-Alone
- Supported Formats
- AI / BMP / DST / DXF / PLT / Others
- After-sales Service
- Video inspection available
- System Compatibility
- Win7 / Win8 / Win10 (32 & 64 bit)
- Applicable Non-metals
- ABS / Nylon / PVC / PES / Makrolon
