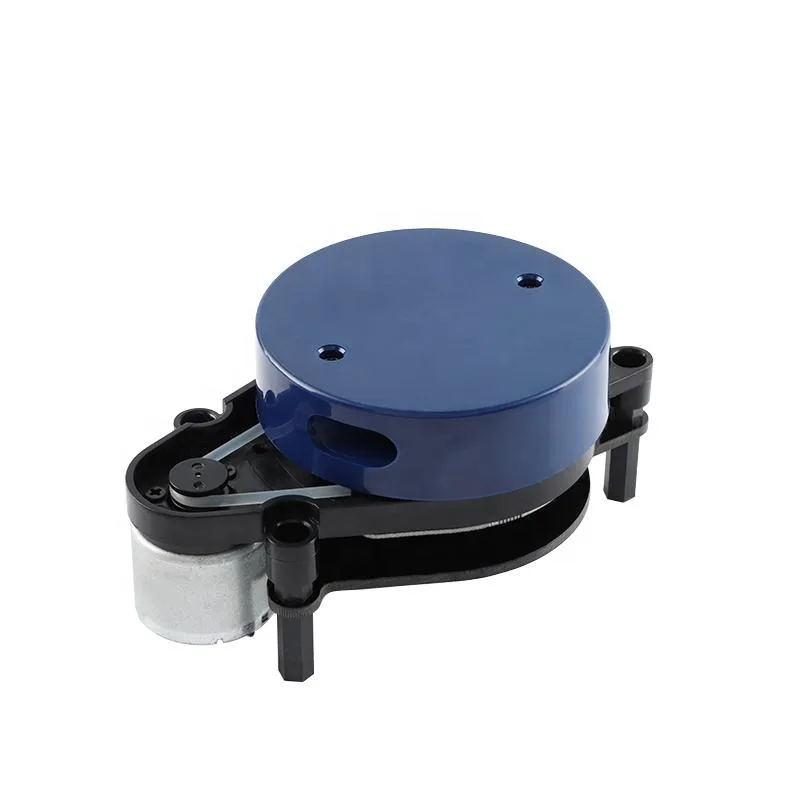

360 Scanning LiDAR Sensor
This 360-degree scanning laser radar module uses a triangulation-based measurement system combined with precision optics and algorithms to deliver high-frequency, high-accuracy ranging performance. The mechanical structure enables continuous rotation to provide real-time angle in
Specifications
- Size
- Compact, lightweight design
- Condition
- New
- Output Data
- Point cloud data + angle information
- Product Type
- 360° Scanning Laser Radar Sensor Module
- Service Life
- Long lifespan
- Scanning Type
- 360-degree mechanical rotation
- Scanning Range
- 8 meters
- Supply Voltage
- 4.8–5.2V
- Motor Frequency
- 7 Hz
- Working Current
- 200–380 mA
- Application Areas
- Robot navigation, obstacle avoidance, ROS teaching, mapping, regional security, commercial robots, vacuum robots
- Power Consumption
- Low power consumption
- Ranging Frequency
- 3000 Hz
- Performance Features
- High accuracy, low distance error, stable performance
- Communication Interface
- 3.3V UART serial port
- Ambient Light Resistance
- Strong resistance to interference
- Distance Measurement Principle
- Triangulation
