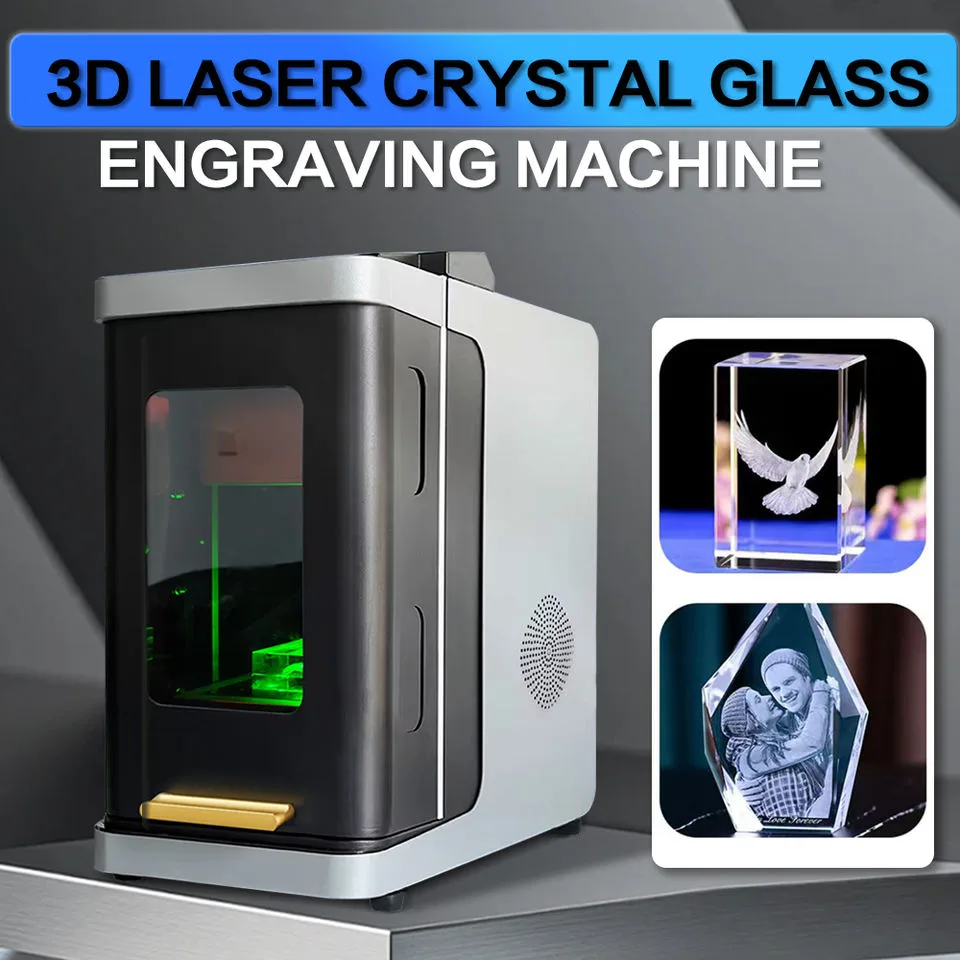

3D Crystal Laser Subsurface Engraving Machine
The 3D Crystal Laser Subsurface Engraving Machine is a high-precision solid-state laser system designed for detailed 2D and 3D subsurface engraving inside glass, crystal, and acrylic materials. With a 532nm laser, 1–10 kHz frequency range, and support for GLB 3D formats, it deliv
Specifications
- Laser Type
- Solid-state Laser
- Laser Power
- 5W
- Power Supply
- 220V 50Hz
- Laser Frequency
- 1–10 kHz
- Print Area (2D)
- 70×70×70 mm
- Print Area (3D)
- 65×65×65 mm
- Laser Wavelength
- 532nm
- 2D Printing Format
- Supports any software with print function
- 3D Printing Format
- GLTF binary format (GLB)
- Laser Safety Level
- Class 1M (IEC 60825-1)
- Operating Humidity
- 10–90% RH, non-condensing
- System Requirements
- iOS 4.2+, HarmonyOS 2.0+, Android 8.0+, Windows 10+, macOS 10.7+
- Operating Temperature
- 15–35°C

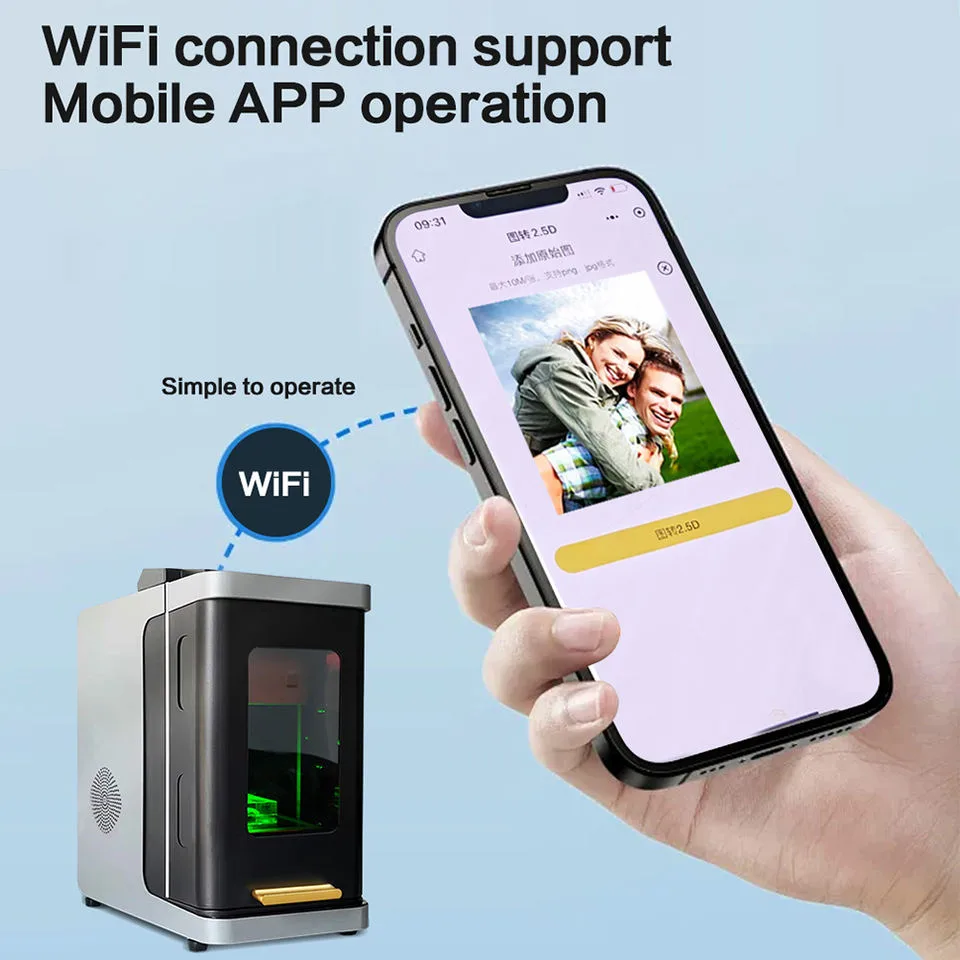

- Wireless Connectivity
- 802.11 b/g/n, 2.4GHz / 5GHz
- Environmental Compliance
- RoHS
