Live-Line Insulation Coating Robot

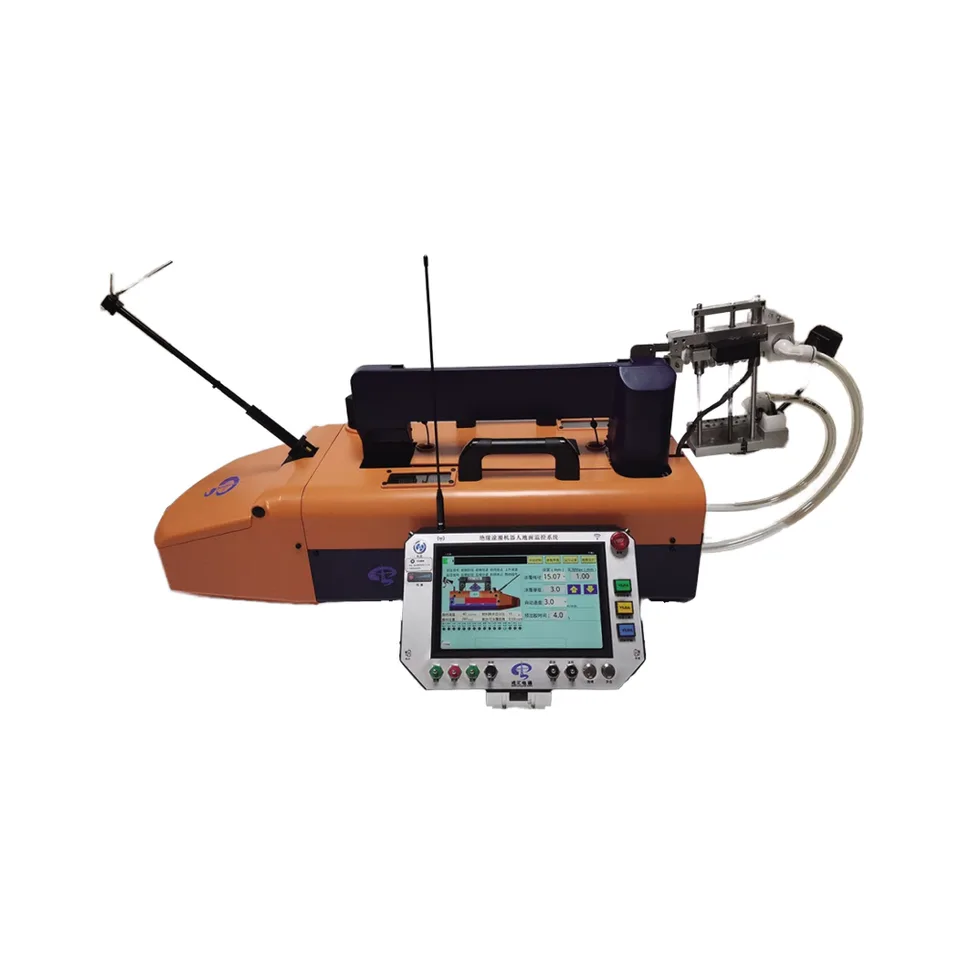

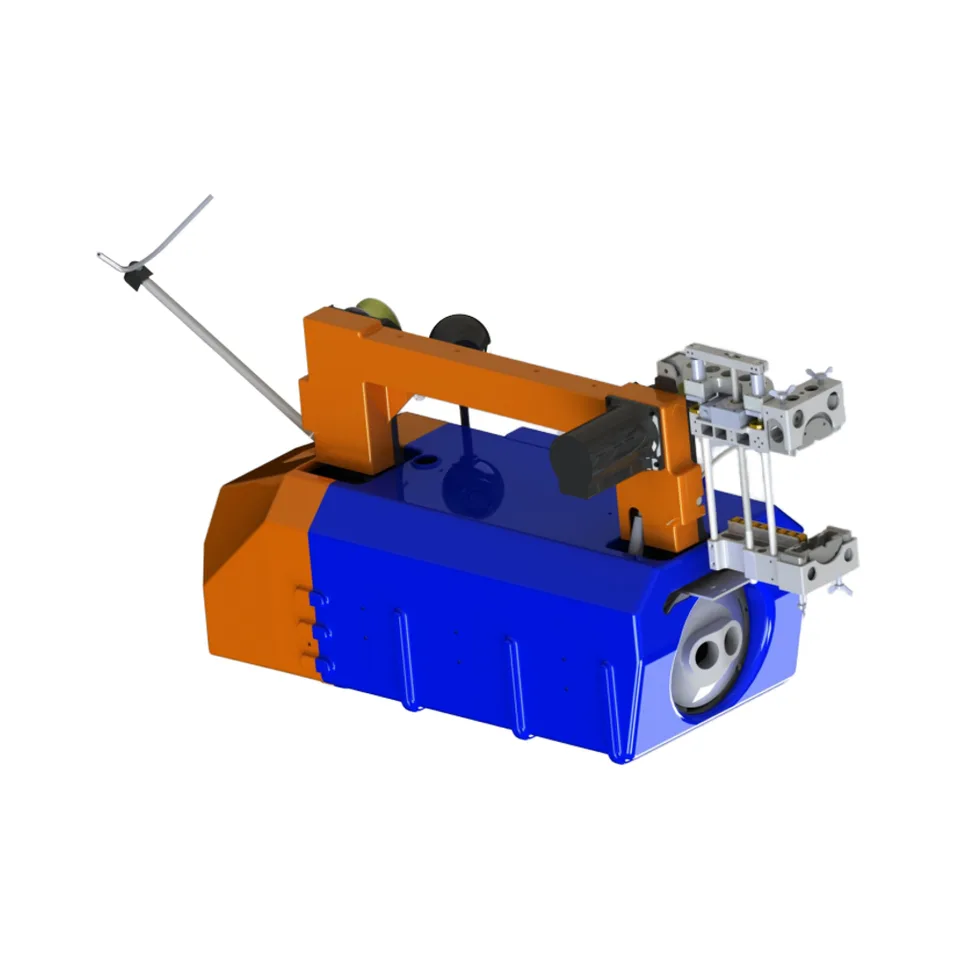

This live-line insulation coating robot is engineered for high-voltage line maintenance without power interruption. It supports conductor diameters from 8.16 to 19 mm and delivers precise coating thickness between 1–5 mm. With a lightweight design of only 20 kg, long 4-hour runti
Specifications
- Battery Life
- ≥4 hours
- Gradeability
- ≤25°
- Package Size
- 680 × 285 × 380 mm
- Running Speed
- ≤8 m/min
- Unloaded Weight
- ≤20 kg
- Coating Thickness
- 1–5 mm
- Equipment Dimensions
- 960 × 285 × 450 mm
- Maximum Working Height
- ≤19 m
- Maximum Loading Capacity
- 4 L
- Applicable Conductor Specs
- LGJ35/6 ~ LGJ185/30（Wire Ø 8.16–19 mm）
