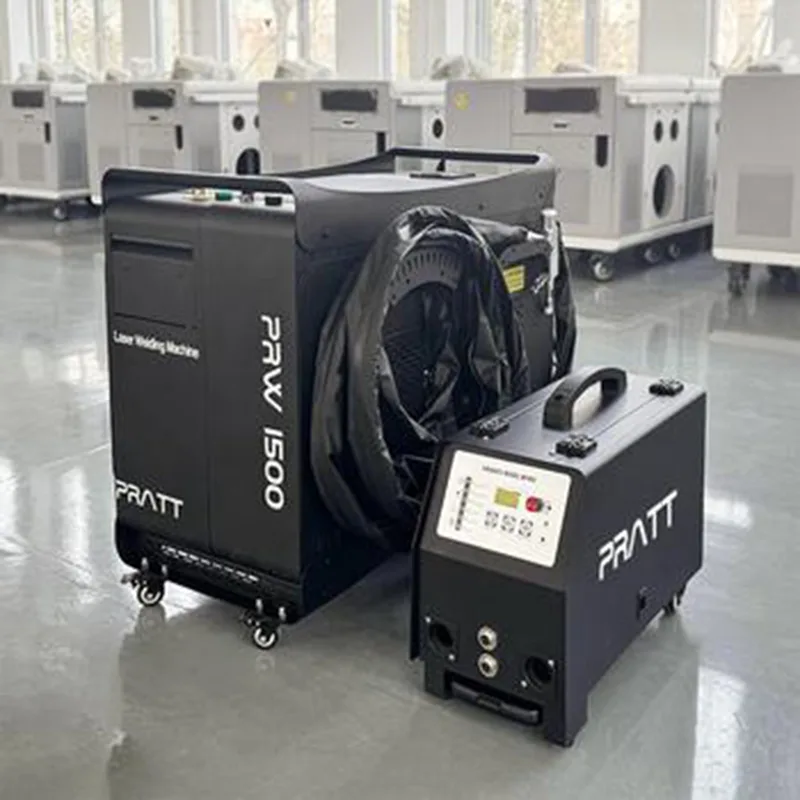

Handheld 4-in-1 Fiber Laser Welding Machine
The 4-in-1 handheld fiber laser welding machine integrates welding, weld-seam cleaning, cutting, and surface cleaning into a single compact unit. Designed for stainless steel, carbon steel, aluminum, and various metal applications, it delivers high efficiency, strong penetration,
Specifications
- 2000W
- 3000W
- PW-2000
- PW-3000
- 0–2000W
- 0–3000W
- Parameter
- PW-1500
- Laser Power
- 1500W
- Speed Range
- 0–120 mm/s
- Cooling System
- Water-cooled
- Humidity Range
- <70% non-condensing
- Machine Weight
- 125 kg
- Operating Mode
- Continuous Welding
- Laser Wavelength
- 1080 nm
- Operating System
- Handheld Welding System
- Fiber Cable Length
- 10 m (customizable)
- Operational Voltage
- 220V Single Phase
- Working Temperature
- 10–40°C
- Power Adjustment Range
- 0–1500W
- Welding Gap Requirement
- ≤0.5 mm
- Machine Dimensions (L×W×H)
- 970×595×825 mm
