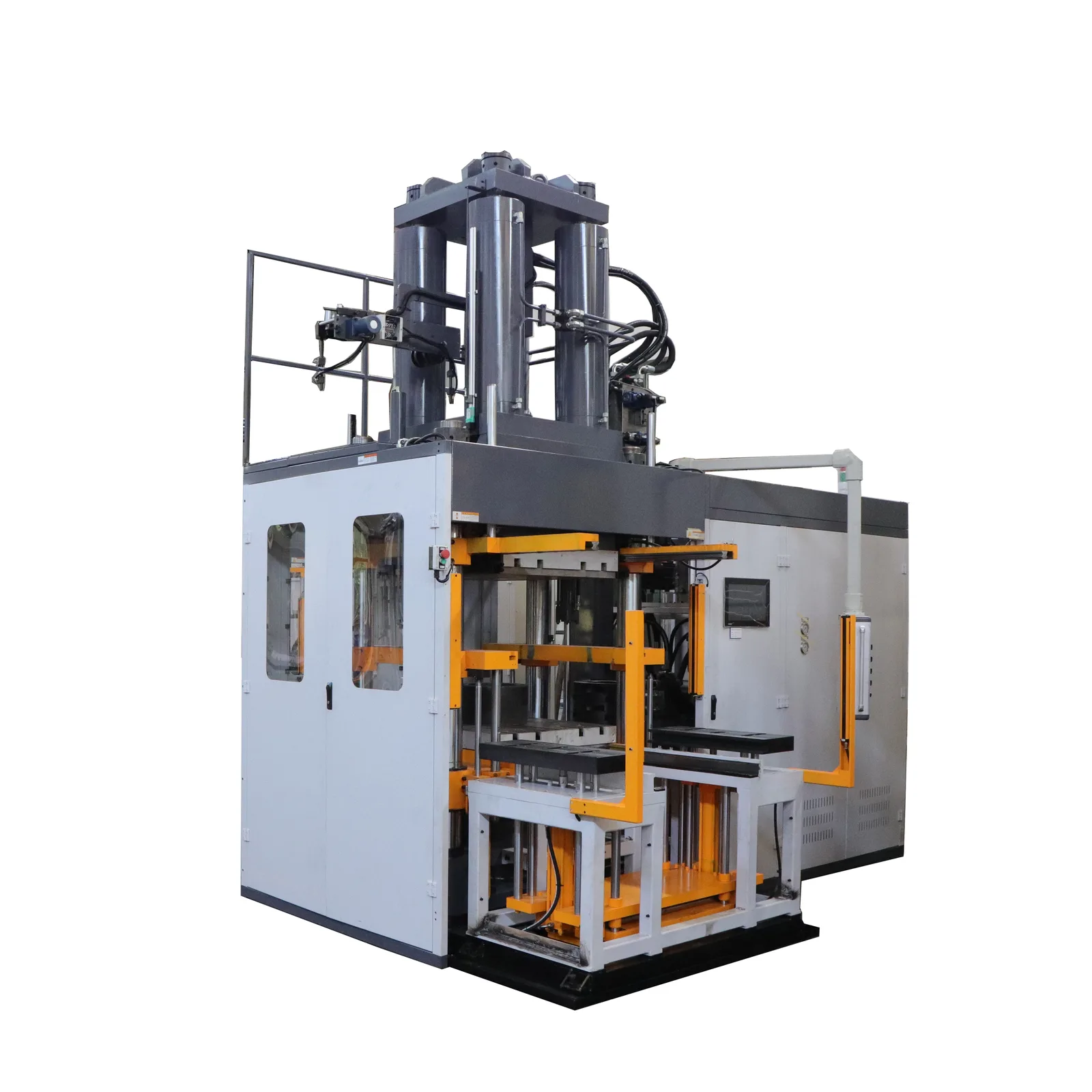

800-Ton Vertical Rubber Injection Machine
This 800 ton vertical rubber injection molding machine is designed for high-load, large-size rubber component production requiring precision, stability and consistent quality. Featuring a four-column vertical structure and a heavy-duty clamping system, the machine provides excell
Specifications
- Structure
- Four-column vertical structure
- Inspection
- Machinery test report & video inspection available
- Machine Type
- Vertical Rubber Injection Molding Machine
- Power Supply
- 220 V
- Clamping Force
- 8000 kN (800 Ton)
- Control System
- PLC control
- Machine Weight
- 50,000 kg
- Installed Power
- 60 kW
- Injection Volume
- 10,000 cc
- Injection Control
- Multi-stage pressure and speed
- Applicable Industry
- Industrial rubber product manufacturing
- Heating Platen Size
- 1000 × 1000 mm
- Temperature Control
- PID control, ±2 °C tolerance
- Space Between Platens
- 1400 mm
- Minimum Mold Thickness
- 410 mm
- Maximum Clamping Stroke
- 1000 mm
- Machine Dimensions (L×W×H)
- 4.3 × 2.8 × 5.0 m
