Amphibious Crawler Underwater ROV

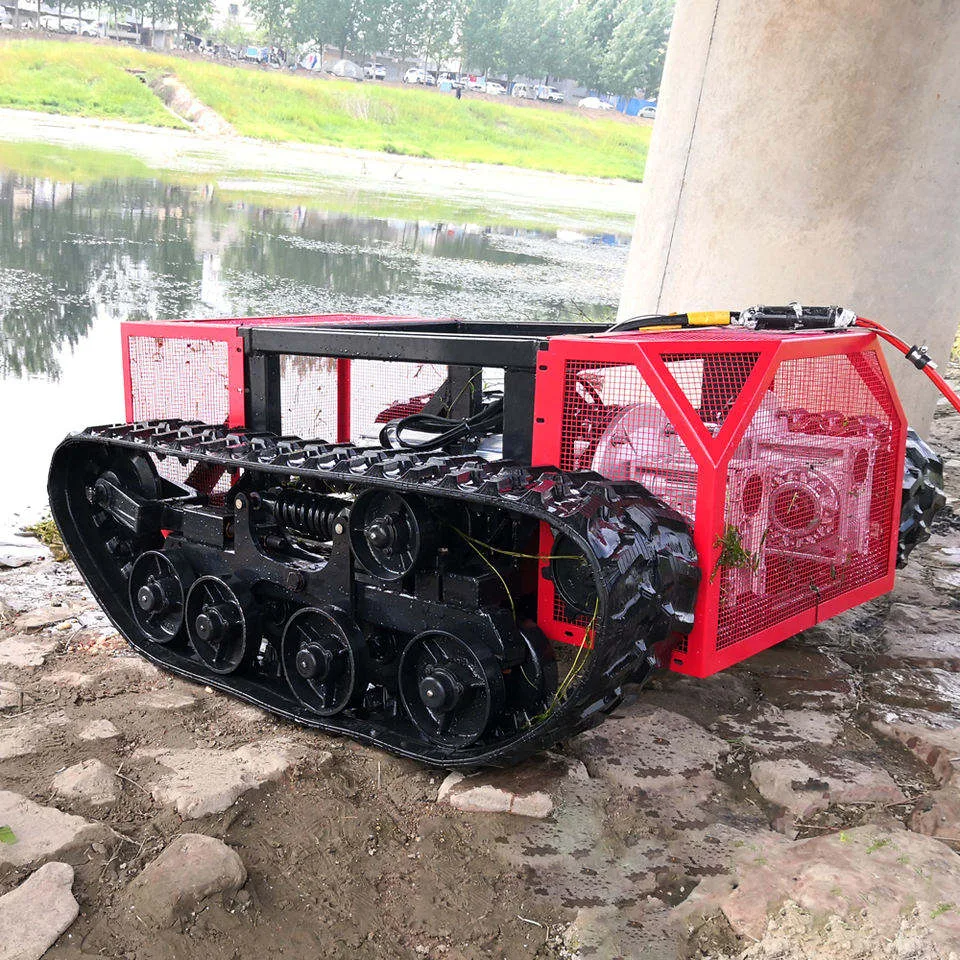

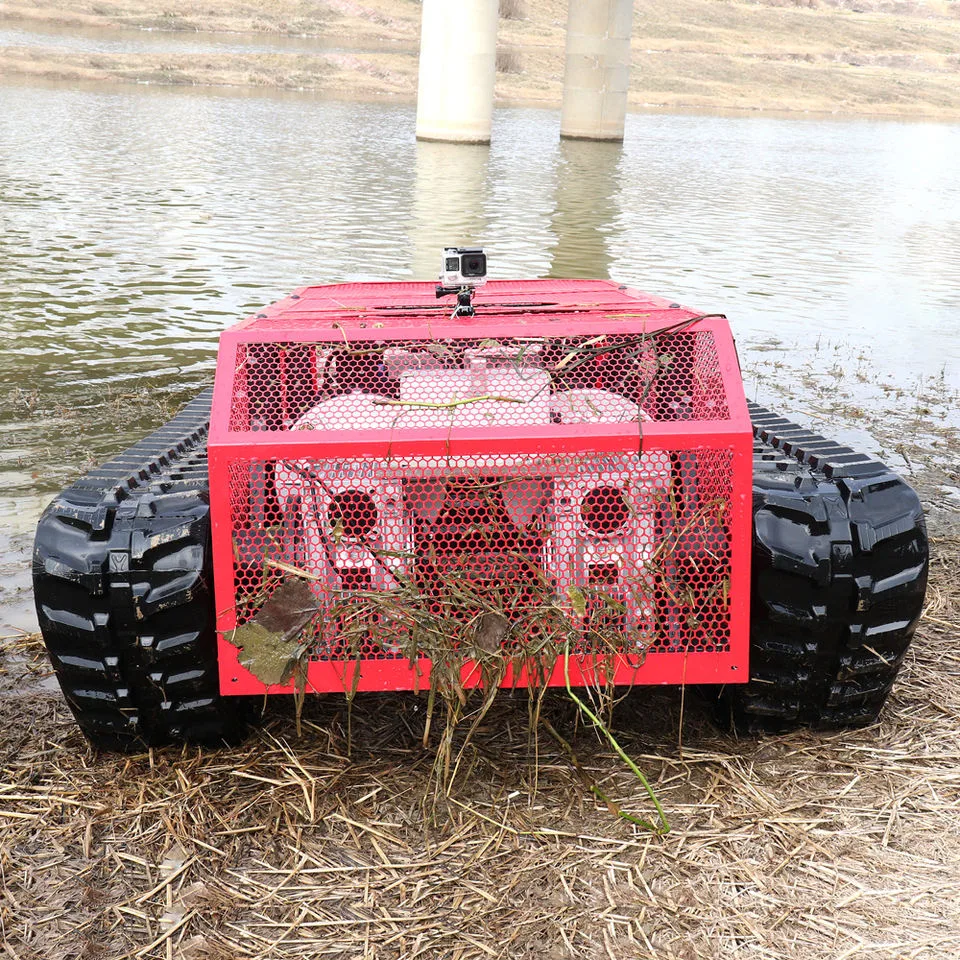

The Amphibious Track Crawler Platform is a waterproof robotic chassis designed for both land and underwater operations. Built with an integrated welded frame, industrial-grade waterproof sealing, and IP68 protection, it is ideal for dredging, inspection, and underwater maintenanc
Specifications
- Item
- Description
- Speed
- 2.5–4 km/h
- Weight
- 120 kg
- Dimension
- 1220 × 890 × 520 mm
- Drive Type
- Dual-motor crawler drive system
- Gear Ratio
- 1:10–1:40
- Application
- Underwater dredging, inspection, cleaning, and amphibious robotic operations
- Motor Power
- 0.75–1.5 kW × 2
- Track Width
- 130 mm
- Power Supply
- Generator or 380V external power
- Product Name
- Amphibious Track Crawler Platform Waterproof Crawler ROV Underwater Robot
- Rated Torque
- 100–500 Nm
- Load Capacity
- 100–300 kg
- Motor Voltage
- 380V AC (customizable)
- Climbing Ability
- ≤30° (can climb stairs)
- Waterproof Level
- IP68
- Motor Rated Speed
- 1500 r/min
- Maximum Track Span
- 620 mm
- Reducer Efficiency
- 65–85%
- Structure Material
- Rust-proof welded steel frame, industrial rubber tracks
- Control Mode Options
- Handheld remote control / Visual control box with 4-channel video feed
- Cable Control Distance
- Standard 50 m (optional up to 150 m)
- Maximum Underwater Depth
- 30 m
- Obstacle Crossing Height
- 130 mm
