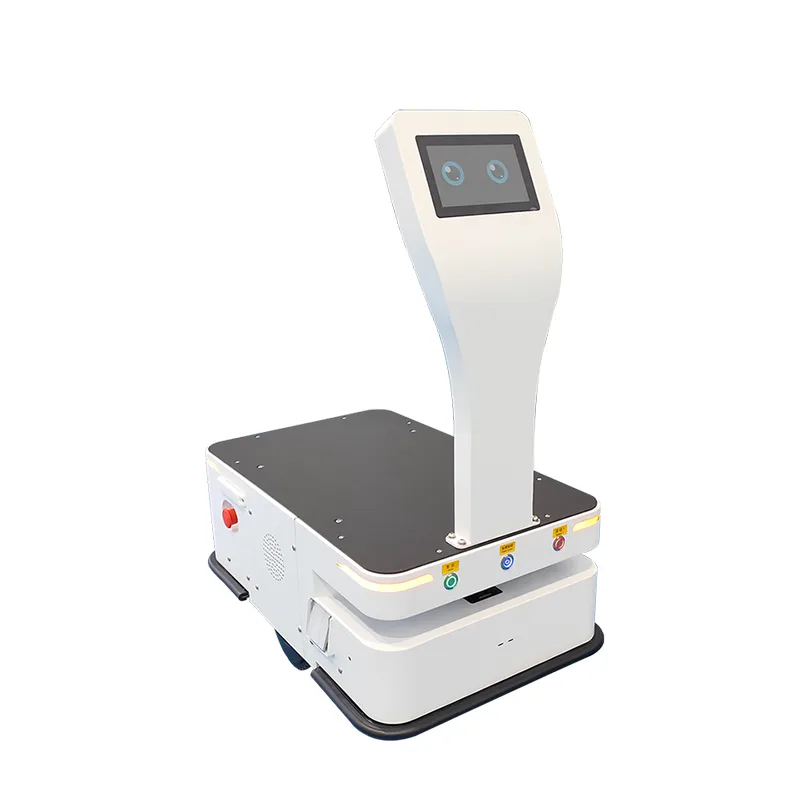

Auto-Charging Warehouse AMR
The Auto-Charging Autonomous Mobile Robot (AMR) is an intelligent logistics vehicle designed for warehouse, manufacturing, and industrial automation environments. It uses SLAM laser navigation for precise positioning and flexible movement — including forward, reverse, turning, an
Specifications
- Item
- Details
- Weight
- 70 kg
- Voltage
- 24 V
- Material
- Metal chassis
- Mobility
- Compact chassis for narrow aisles
- Warranty
- 1 year
- Use Cases
- Material handling, trolley transport, goods transfer, automated logistics
- Protection
- Vision-assisted obstacle avoidance
- Application
- Warehousing, logistics, factories, hospitals, industrial automation
- Rated Speed
- 0–1.2 m/s (adjustable by section)
- Control Mode
- Fully autonomous with manual override
- Power Supply
- Battery-powered with auto-charging support
- Product Type
- Autonomous Mobile Robot (AMR)
- Vehicle Size
- 695 × 450 × 935 mm
- Load Capacity
- 80 kg
- System Interface
- RCS interface, expandable with WMS / MES systems
- Driving Direction
- Forward / Reverse / Left / Right / In-place rotation
- Navigation Method
- Laser SLAM navigation
- Operation Interface
- Digital touch screen
- Positioning Accuracy
- ±10 mm
