AseanMachine Selected

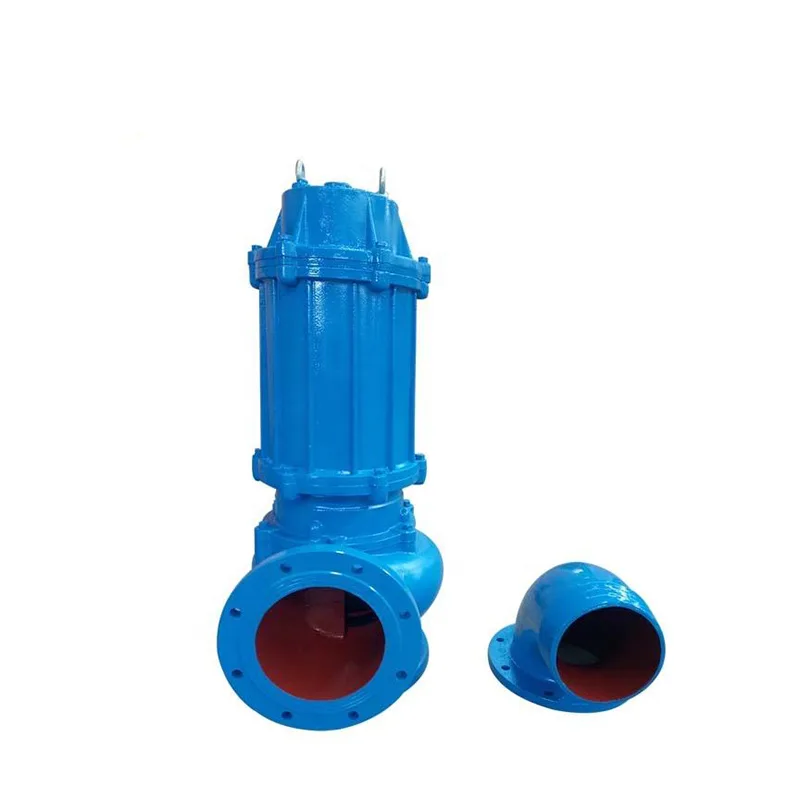

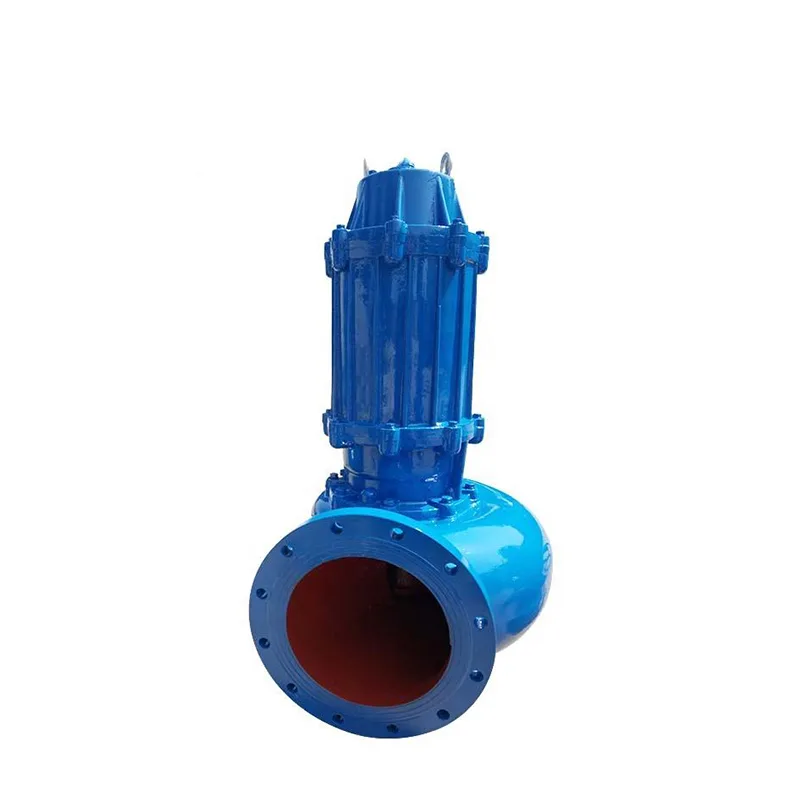

Auto-Coupling Submersible Sewage Pump
This auto coupling submersible sewage pump is designed for efficient pumping of wastewater, effluent, and solid-laden liquids in industrial utilities and related infrastructure systems. Equipped with an automatic coupling system and guide rail installation, the pump allows quick
Specifications
- Warranty
- 1 Year
- Seal Type
- Dual Mechanical Seal (Oil Bath Lubricated)
- Efficiency
- Up to 52%
- Flow Range
- 15 – 800 m³/h
- Head Range
- 12 – 60 m
- Horsepower
- Up to 40 HP
- Application
- Industrial Wastewater / Sewage / Effluent
- Outlet Size
- 6 inch
- Rated Power
- Up to 30 kW (Customizable)
- Cable Length
- Customizable
- Power Source
- Electric
- Product Type
- Auto Coupling Submersible Sewage Pump
- Pump Material
- Cast Iron
- Cooling System
- Built-in (External Cooling Optional)
- Pump Structure
- Submersible Centrifugal Pump
- Rated Pressure
- Up to 30 m
- Shaft Material
- Stainless Steel
- Voltage Options
- 220 – 440 V
- Motor Protection
- IP68
- Guide Rail Length
- Customizable
- Installation Type
- Submersible with Auto Coupling & Guide Rail
- Customization Support
- OEM / ODM
- Motor Insulation Class
- Class F
