L-Type Sealing Shrink Packaging Machine
The RL-400 automatic L-type sealing and shrink packaging system integrates film feeding, sealing, cutting, and shrink wrapping into a fully automated continuous workflow. Equipped with a high-efficiency shrink tunnel (RYT-4020), this system delivers consistent packaging results f
Specifications
- MODEL
- RYT-4020
- Conveyor
- Chains with Rotating Silicon Coated Rods
- Film Type
- Center Folded POF/ PVC Film
- Oven Size
- 1200MM (L), Entrance 450(W) X 250(H) MM
- Air Pressure
- 0.5MPA (5 BAR)
- Packing Size
- Width + Height < 400mm, Length + Height < 480mm
- Power Supply
- 380V/50-60HZ/3Phase
- Sealing Type
- L-Sealing
- Packing Width
- 350MM
- Conveyor Speed
- Variable, 40 M/Min
- Film Thickness
- 12-30 Micron (Minimum-Maximum)
- Sealing Height
- 150MM
- Working Height
- 780 - 850 MM
- Installed Power
- 380V/50-60HZ/3Phase
- Machine Material
- Carbon Steel
- Packing Capacity
- Max. 35 packs per minute (depends on product size)
- Power Consumption
- 1.5 KW
- Max Film Roll Size
- 530MM (Width) X 280MM (Outer Diameter)
- Weight (Net/ Gross)
- 490KGS/ 540KGS (For Reference Only, Including Sealer and Tunnel)
- Rated Power Consumption
- Max. 7 KW

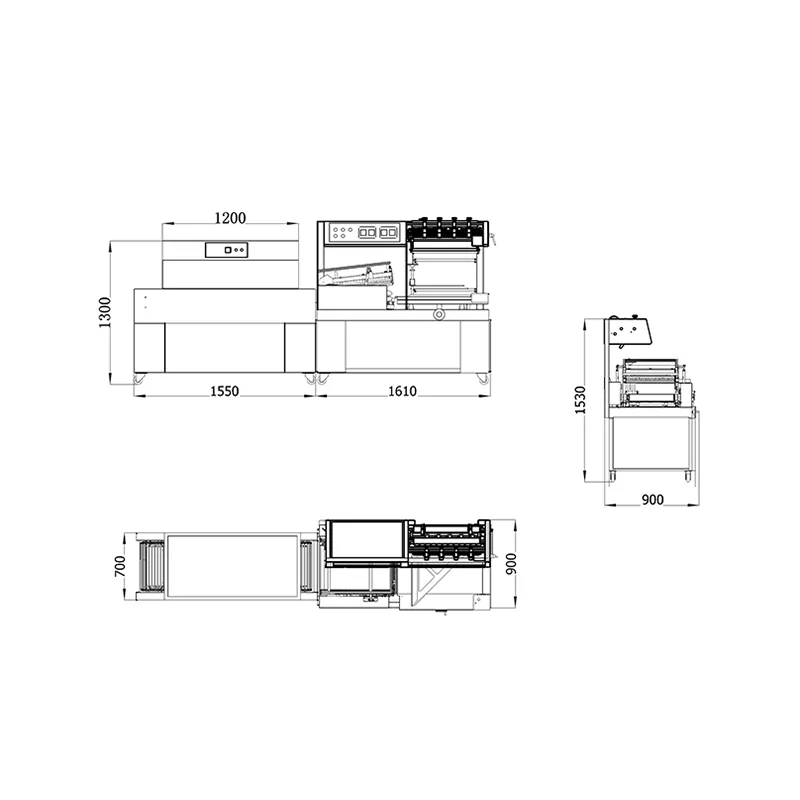

- Tunnel Machine Dimensions
- 1550 X 700 X 1300 MM
