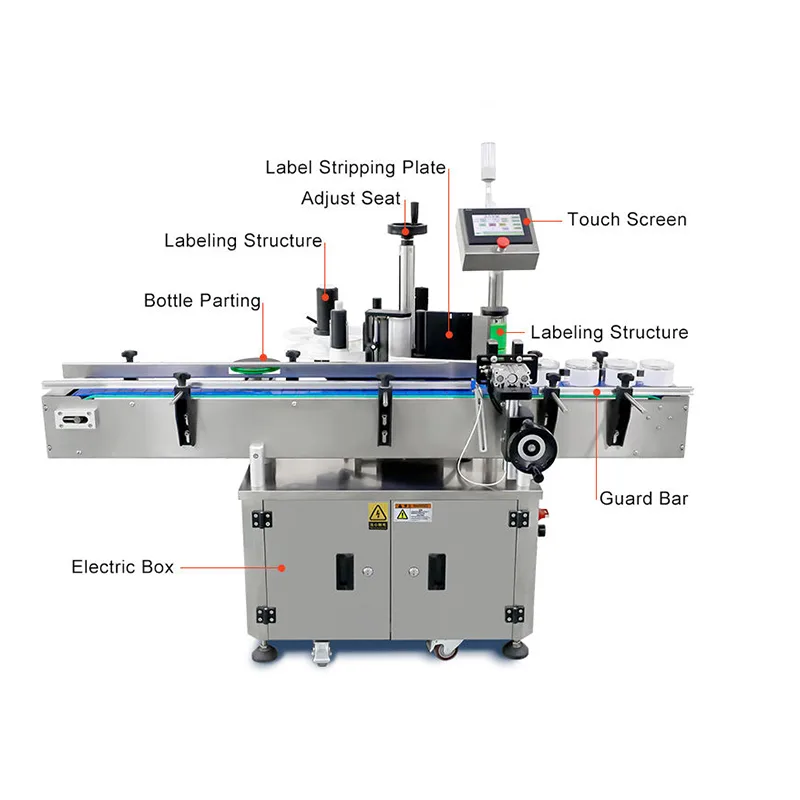

Automatic Round Bottle Labeling Machine
The Auto Round Bottle Pasting Labeling Machine is designed for high-precision labeling of cylindrical containers across cosmetics, pharmaceuticals, food, and FMCG industries. It supports both partial and full-wrap labeling, conical bottle labeling, and optional fixed-position lab
Specifications
- Power
- 1KW
- Parameter
- Value
- Air Supply
- 0.5–0.8 MPa, 10L/min
- Label Length
- 20–450mm
- Power Supply
- AC220V, 50Hz, Single Phase
- Labeling Speed
- 10–30 pcs/min
- Conveyor Height
- 800 ± 50mm
- Labeling Accuracy
- ±1mm
- Machine Dimension
- 1800 × 1100 × 1300 mm
- Package Dimension
- 1850 × 1150 × 1400 mm
- Machine Net Weight
- 180 kg
- Operating Humidity
- 15–85%
- Label Backing Width
- 10–100mm
- Label Roll Diameter
- Max 300mm (Inner 76mm)
- Machine Gross Weight
- 290 kg
- Product Height Range
- 10–300mm
- Operating Temperature
- –20°C ~ 45°C
- Product Diameter Range
- 20–150mm
