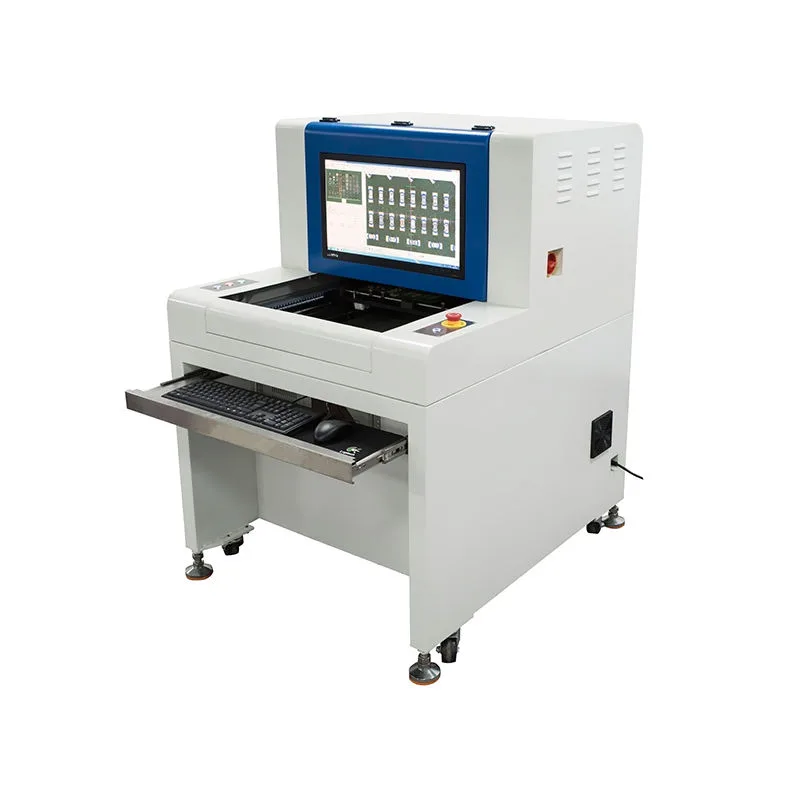

Automated Optical Inspection (AOI) Machine
This Automated Optical Inspection (AOI) machine is designed for high-speed, high-accuracy visual inspection in SMT PCB production. Equipped with a 5MP GigE Vision camera, servo-driven motion system, and machine-learning based detection algorithms, it delivers stable and efficient
Specifications
- Power
- 350W
- Weight
- 380kg
- Packing
- Wooden Box
- Voltage
- 220V
- Function
- LED Soldering Inspection
- Warranty
- 1 Year
- Condition
- New
- Operation
- Automatic Touchscreen Interface
- Application
- SMT PCB Production Line
- Camera Type
- GiGE Vision (Gigabit Network Interface)
- Test Method
- Arithmetic Parameter Debugging & Machine Learning
- Monitor Size
- 22-inch LED
- Product Name
- Automated Optical Inspection (AOI) Machine
- PCB Thickness
- 0.3–10mm (warpage <5mm)
- Driving Device
- Servo Motor + Ball Screw + Linear Slide
- Core Components
- PLC, Bearing
- Camera Resolution
- 2592×1944 (5MP)
- Dimensions (L×W×H)
- 900×1100×1400mm
- Applicable Industries
- Manufacturing Plant / Machinery Repair Shops
