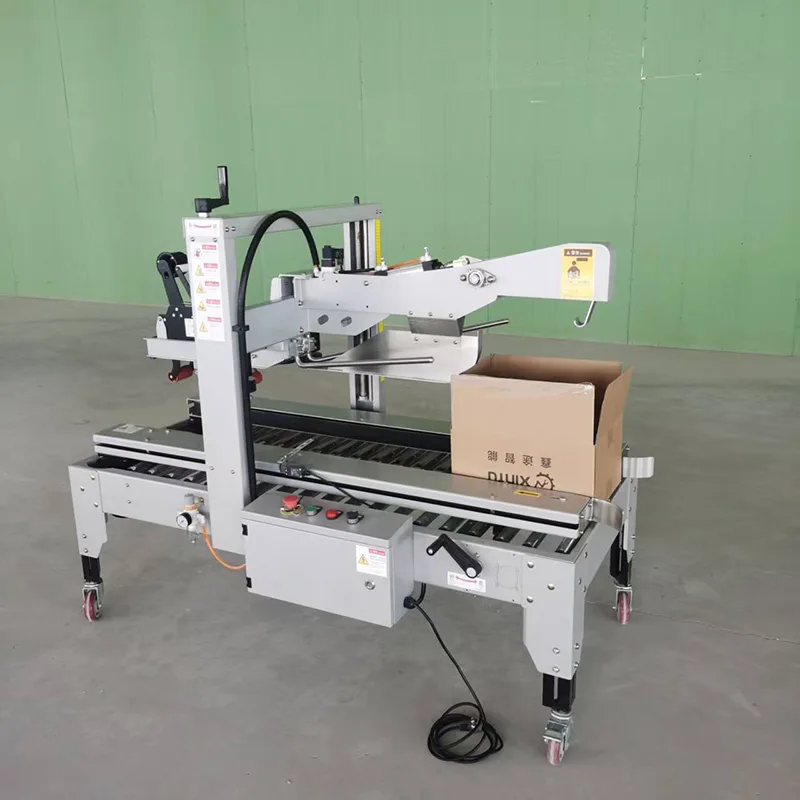

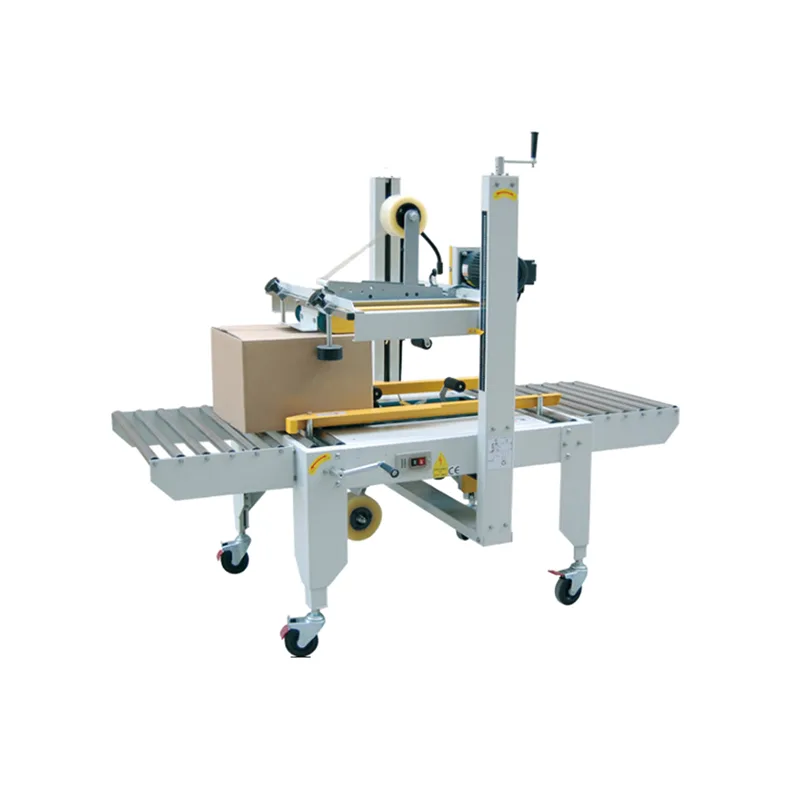

Carton Top Sealing Machine
An automatic carton top sealing machine designed for high-speed e-commerce and logistics packaging. It folds the top lid automatically and seals cartons efficiently, supporting a wide range of carton sizes. Ideal for continuous packaging lines requiring stable, consistent sealing
Specifications
- Model
- FZ500K
- Belt Speed
- 28–30 m/min
- Machine Size
- L1650 × W1050 × H1350 mm
- Table Height
- 450 / 600 / 700 mm (customizable)
- Sealing Speed
- 20–35 cases/min
- Operating Noise
- < 75 dB
- Carton Size Range
- Min: L200 × W120 × H90 mm；Max: L500 × W400 × H400 mm
- Tape Width Options
- 3.6–7.2 cm
- Machine Performance

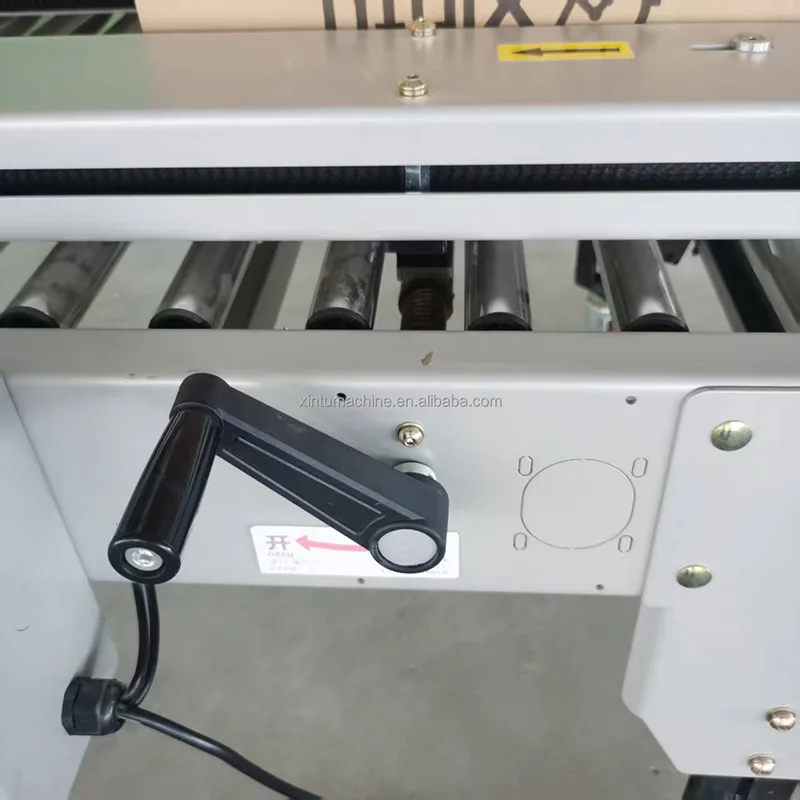

- Automatic lid folding; manual width/height adjustment; dual-side bottom belt drive
- Compressed Air Supply
- 6 kgf/cm²，90 NL/min
