AseanMachine Selected

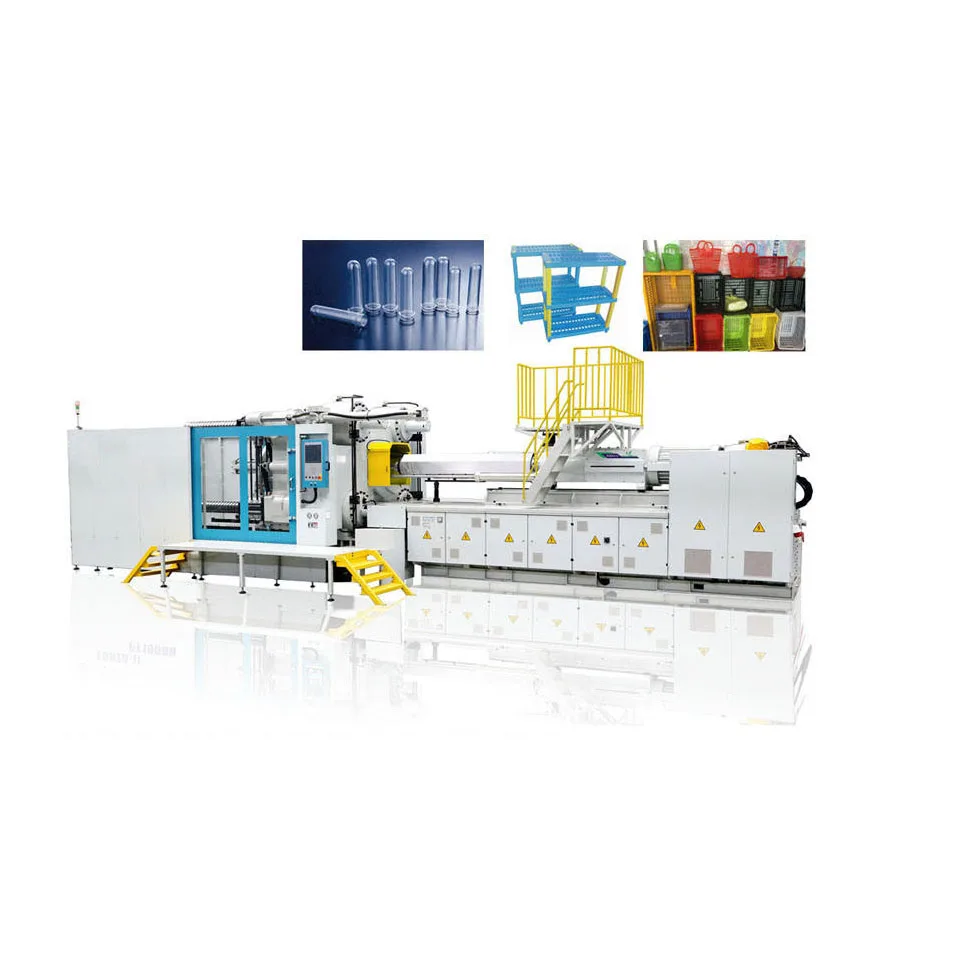

PET Preform Injection Molding Machine
This automatic PET preform injection moulding machine is designed for high-efficiency and high-precision production of PET bottle preforms. Featuring a horizontal structure and electric-driven injection system, it delivers fast injection speed, large shot volume and stable plasti
Specifications
- Structure
- Horizontal
- Application
- PET bottle preform production
- Screw Speed
- 1–190 rpm
- Machine Type
- Electric PET Preform Injection Moulding Machine
- Ejector Force
- 800 kN
- Clamping Force
- 1600 kN
- Control System
- PLC with LCD display
- Ejector Number
- 5
- Ejector Stroke
- 800 mm
- Injection Rate
- Up to 1200 g/s
- Operation Mode
- Fully automatic
- Screw Diameter
- 67 mm
- Installed Power
- 25 kW
- Production Type
- Continuous high-volume production
- Screw L/D Ratio
- 25
- Injection Weight
- Up to 1165 g
- Plastic Material
- PET
- Mold Height Range
- 400–480 mm
- Mold Opening Stroke
- 600 mm
- Plasticizing Capacity
- 1375 g/s
- Theoretical Shot Volume
- 1375 cm³
- Distance Between Tie Bars
- 800 × 600 mm
