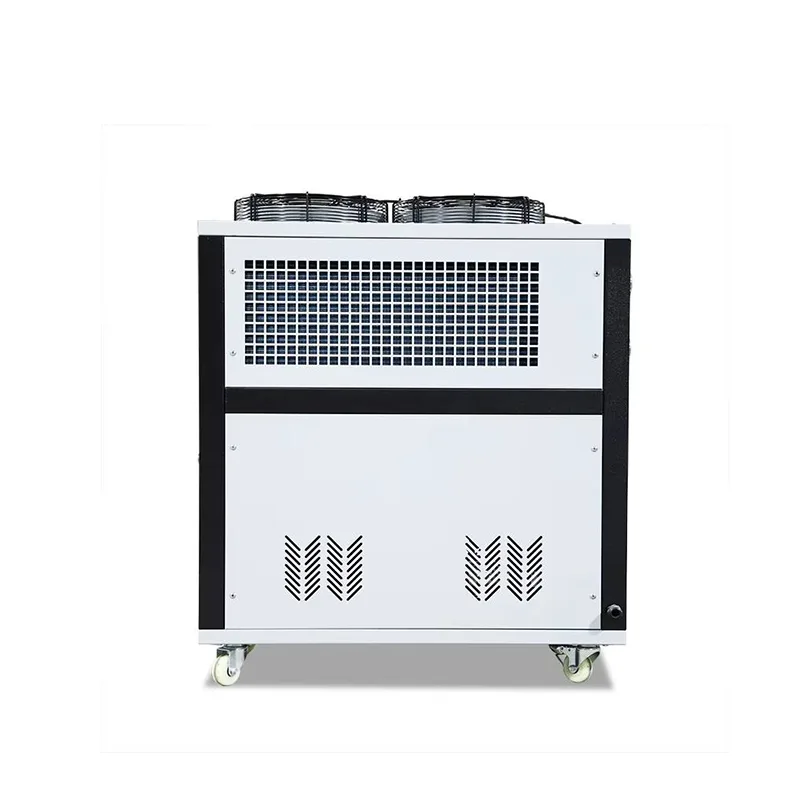

Box-Type Air-Cooled Scroll Chiller
This box-type air-cooled scroll water chiller is designed to provide stable and efficient chilled water for industrial cooling applications. It is suitable for equipment and process cooling where compact structure, low noise operation, and reliable performance are required. The c
Specifications
- Weight
- Approx. 130 kg
- Warranty
- 1 Year
- Application
- Industrial Chilled Water Cooling
- Rated Power
- 8.3 kW
- Product Type
- Air-Cooled Box-Type Water Chiller
- Pipe Diameter
- 1 inch
- Rated Voltage
- 3 Phase / 380 V / 50 Hz
- Condenser Type
- Finned Copper Tube + Axial Fan
- Cooling Method
- Air-Cooled
- Compressor Type
- Hermetic Scroll Compressor
- Core Components
- Compressor, Pump, Fan, Condenser, Evaporator
- Evaporator Type
- Shell & Tube / Plate / Coil-in-Tank
- Running Current
- 5.7 A
- Cooling Capacity
- Approx. 3 Ton
- Inspection & Test
- Factory Inspection Report Provided
- Power Consumption
- 2.95 kW
- Refrigerant Control
- Thermostatic Expansion Valve
- Refrigerant Options
- R22 / R134a / R407C / R410A
- Dimensions (L×W×H)
- 1020 × 540 × 1030 mm
- Chilled Water Flow Rate
- 1.5 m³/h
- Working Temperature Range
- 5 – 35 ℃
