AseanMachine Selected

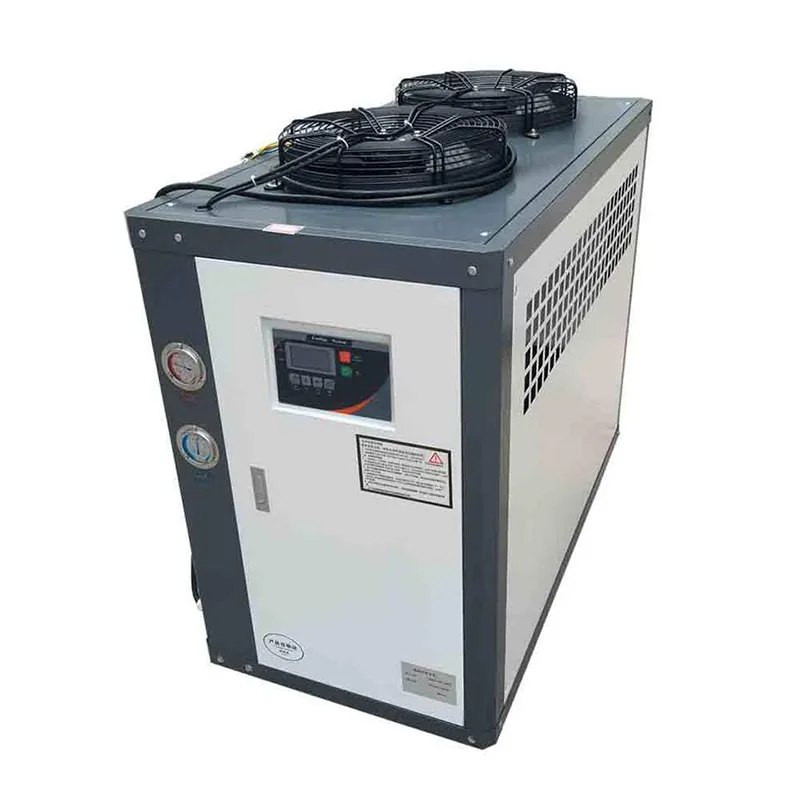

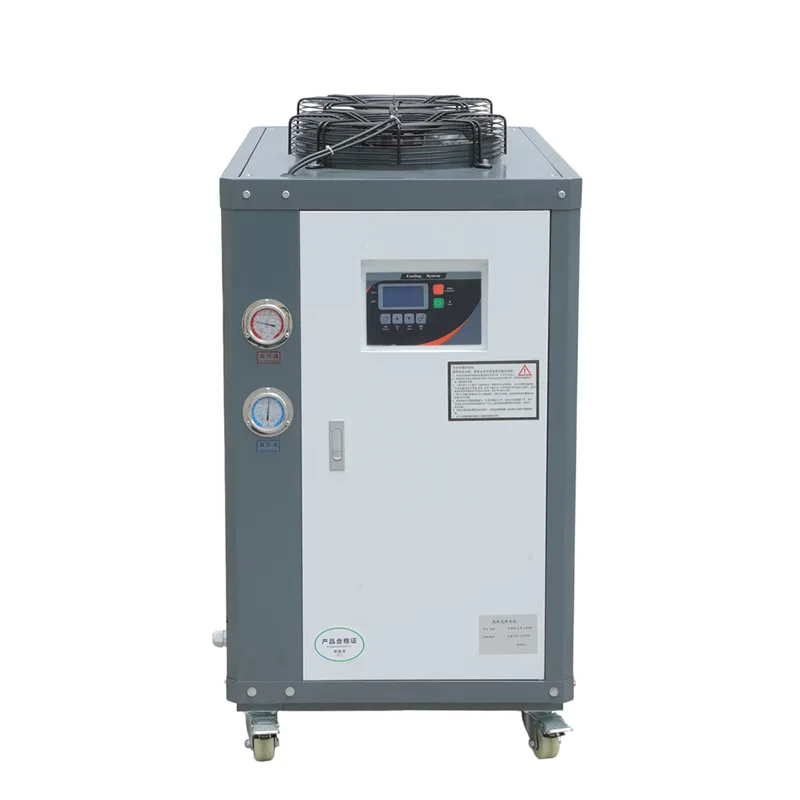

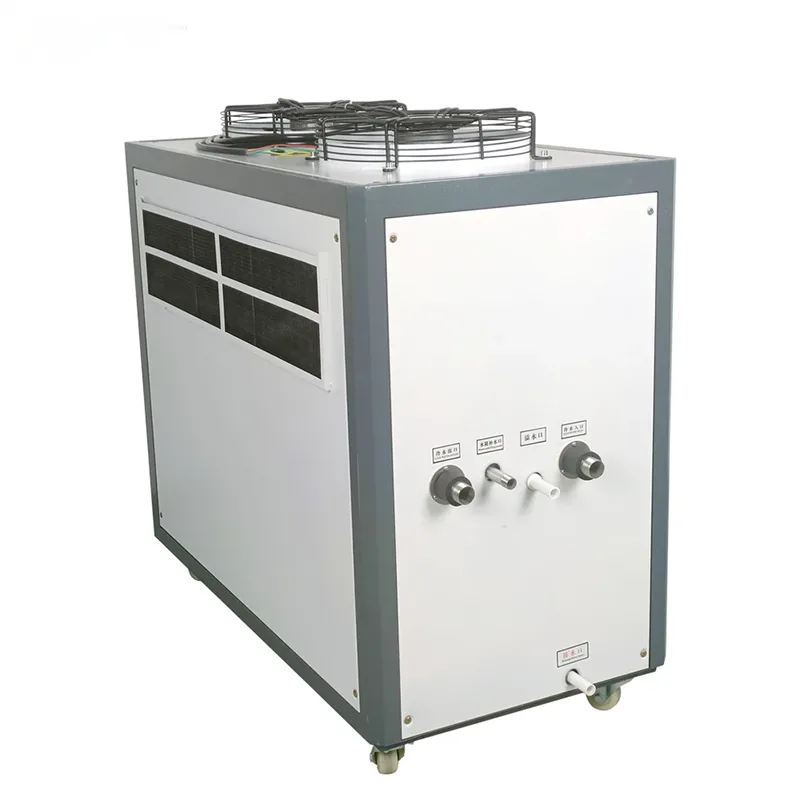

Air-Cooled Industrial Chiller
This air-cooled industrial chiller is designed to provide stable and efficient cooling for molds and industrial equipment. With an independent air-cooled heat dissipation structure, it operates without cooling towers or complex water pipelines, enabling fast installation and flex
Specifications
- Weight
- Approx. 140 kg
- Voltage
- 380 V
- Warranty
- 1 Year
- Fan Power
- 0.21 kW × 2
- Pump Type
- Water Pump
- Inspection
- Factory Test Report Provided
- Application
- Mold Cooling / Equipment Cooling
- Refrigerant
- R22
- Control Mode
- Automatic
- Power Rating
- 5–10 HP
- Product Type
- Air-Cooled Industrial Chiller
- Cooling Method
- Air-Cooled
- Compressor Type
- Vortex Type
- Fan Configuration
- Dual Fans
- Power Consumption
- Approx. 3.75 kW
- Water Tank Volume
- 60 L
- Ambient Temperature
- ≤ 35 °C
- Dimensions (L×W×H)
- 130 × 60 × 130 cm
- Evaporator Connection
- DN25
- Refrigeration Capacity
- Approx. 14 kW
- Refrigerant Control Mode
- Capillary Tube
- Working Temperature Range
- 5 – 30 °C
