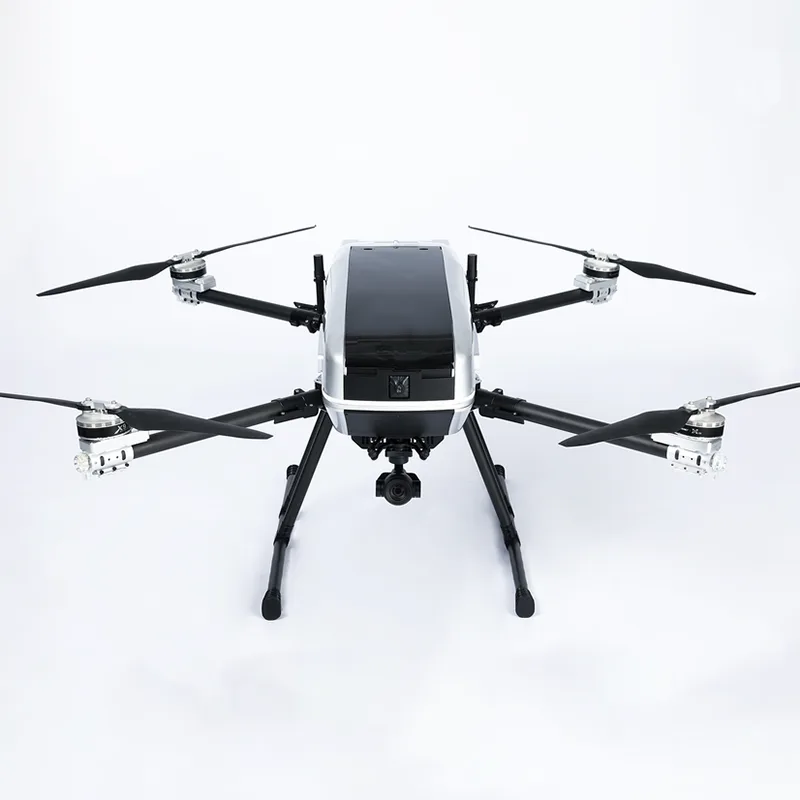

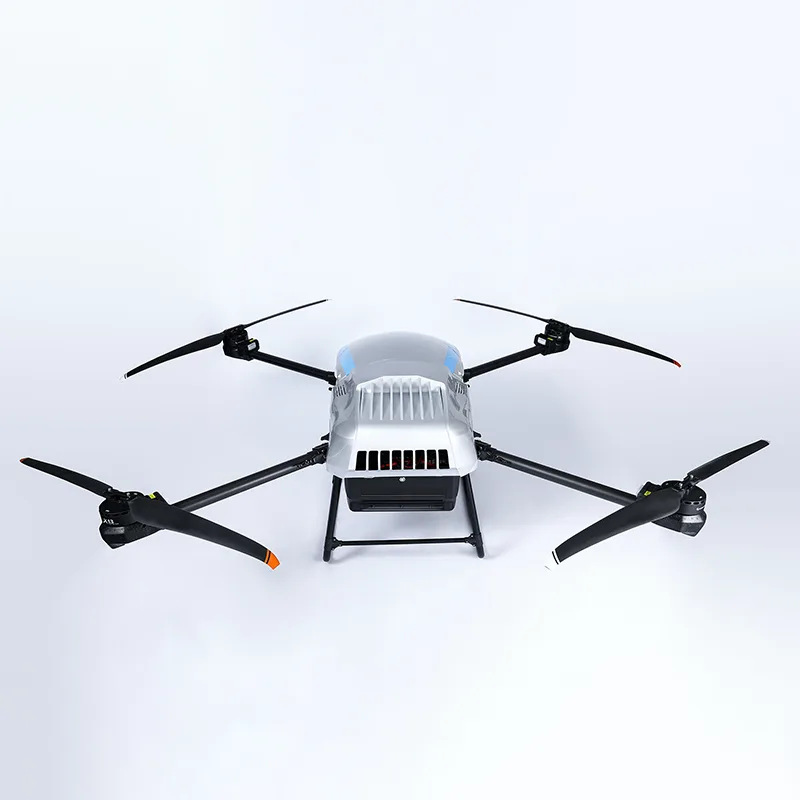

Autonomous Inspection Patrol Drone
The Commercial Autonomous Patrol Drone is an intelligent UAV platform designed for long-endurance inspection and security missions. With up to 45 minutes of flight time, 10 kg payload capacity, and high wind resistance (15 m/s), it performs efficiently in diverse scenarios such a
Specifications
- Item
- Details
- Usage
- Routine inspection, patrol, and monitoring
- Material
- Carbon fiber composites + aluminum alloy
- Endurance
- 45 minutes (typical)
- FPV Camera
- 2 MP ultra-wide-angle (120° FOV)
- Flight Mode
- Quadcopter
- Folded Size
- 860 × 660 × 790 mm
- Product Type
- Commercial Autonomous Patrol Drone
- Expanded Size
- 1250 × 1300 × 680 mm
- Cruising Speed
- 20 m/s
- Propeller Count
- 4
- Max Flight Speed
- 20 m/s
- Payload Capacity
- 3 kg (supports multiple sensor modules)
- Special Features
- Autonomous flight, GNSS navigation, real-time data link
- Max Wind Resistance
- 15 m/s
- Applicable Scenarios
- Land surveying, wind power inspection, sea patrol, forest security
- Max Take-Off Altitude
- 5000 m
- Operating Temperature
- –40 °C ~ 50 °C
- Hovering Accuracy (GNSS)
- Horizontal ±1.5 m / Vertical ±0.5 m
- Obstacle Detection Range
- 1.5 m – 20 m
- Max Transmission Distance
- 40 km
