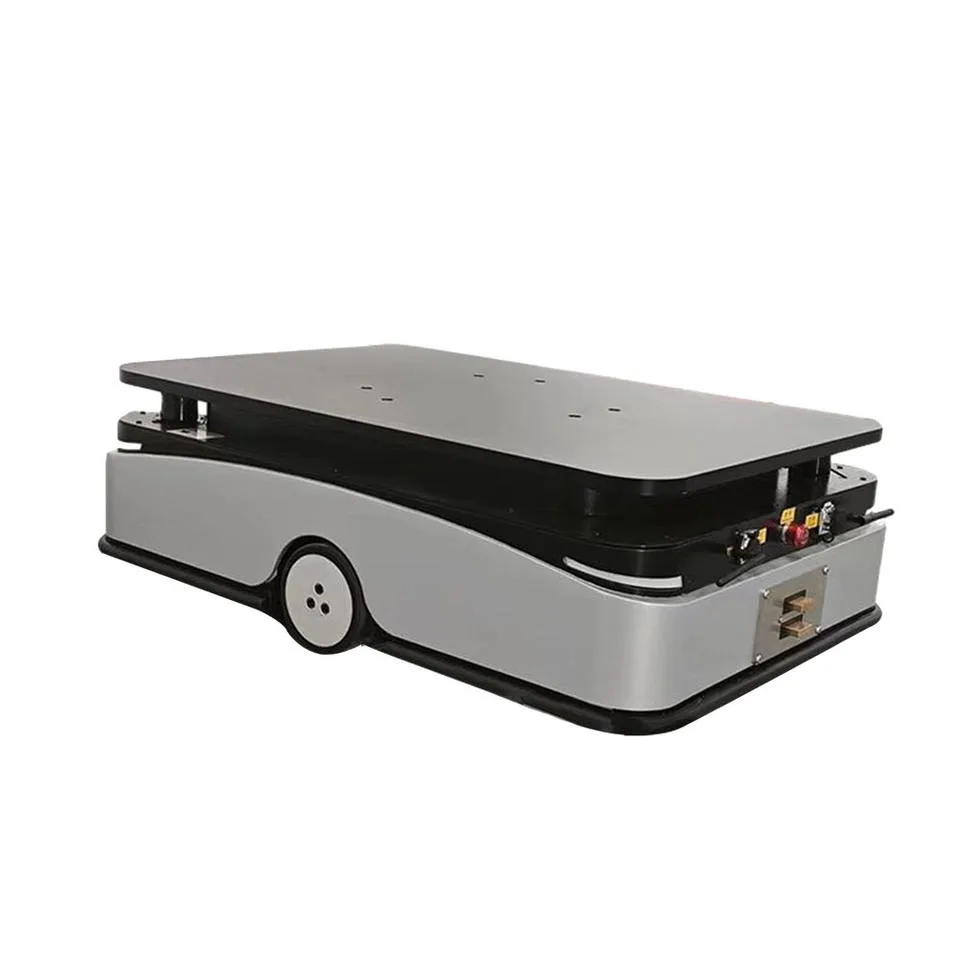

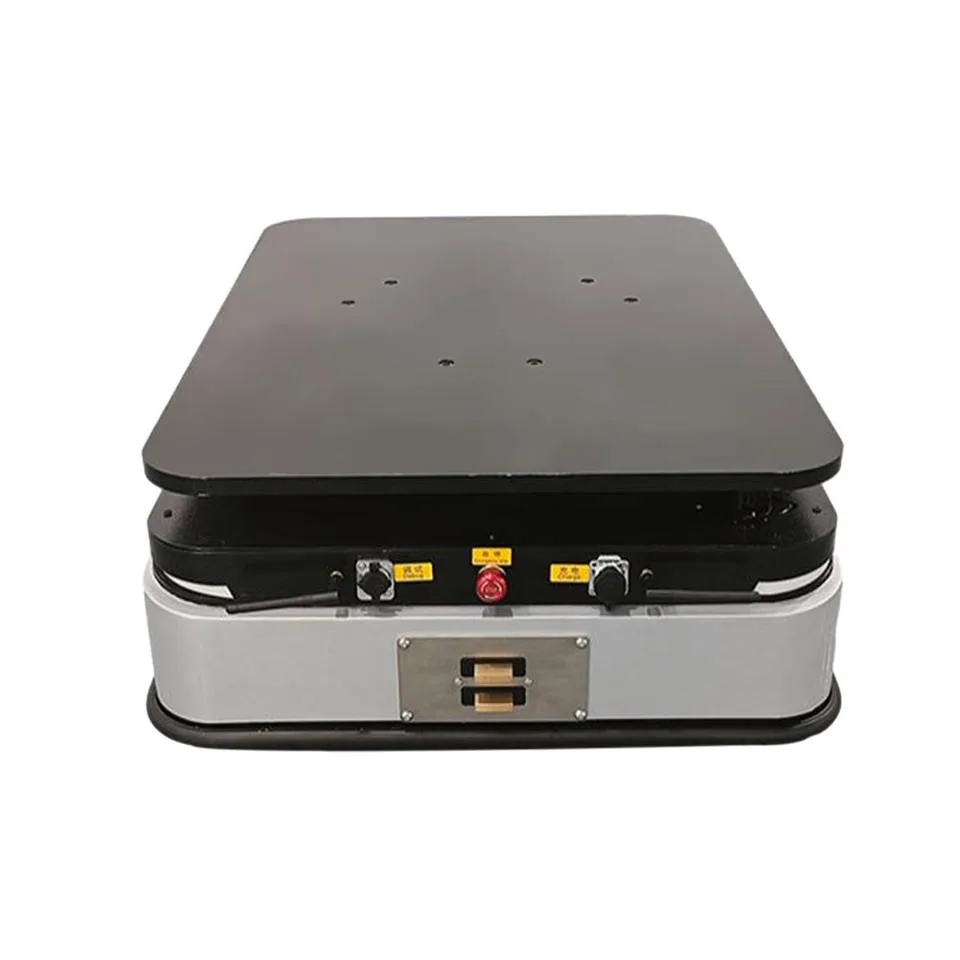

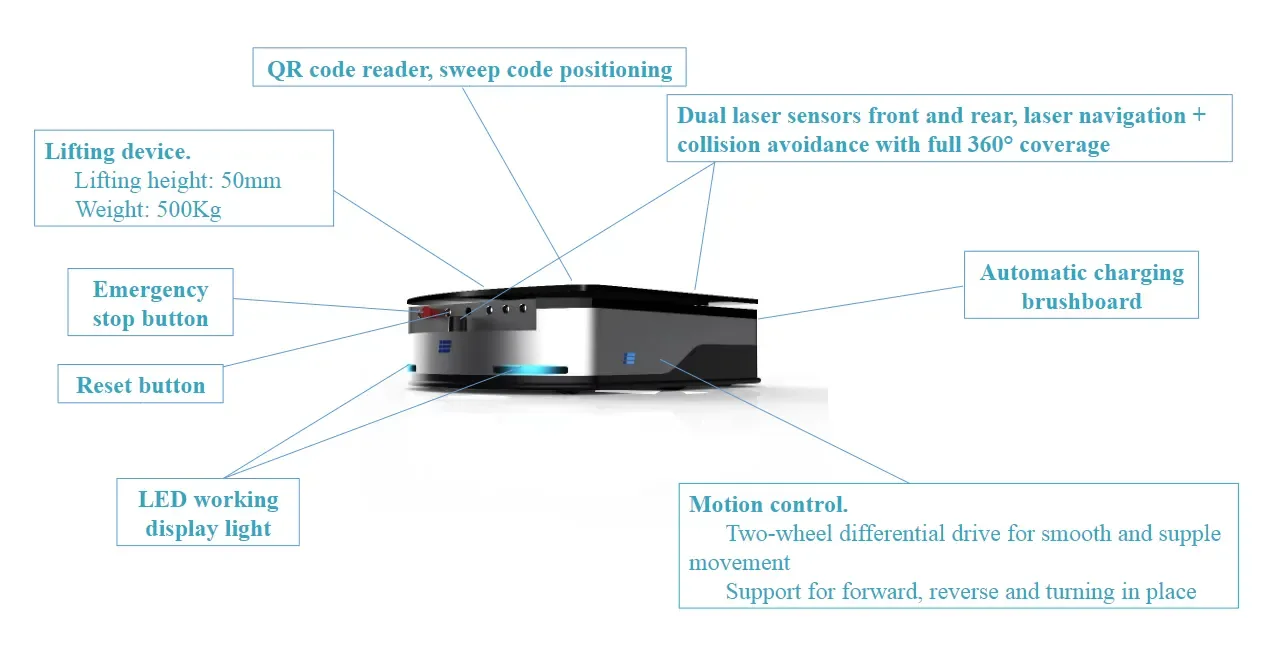

300kg Laser-Guided AGV Chassis
The Compact Laser-Guided AMR/AGV Chassis is a trackless, fully autonomous mobile robot platform designed for material handling, logistics automation, and smart manufacturing environments. Equipped with SLAM navigation, differential drive, and wireless communication, it offers pre
Specifications
- Item
- Details
- Model
- MDAMR-SL300
- Material
- Metal
- Drive Type
- Differential drive
- Self Weight
- 120 kg
- Battery Type
- 48 V / 25 Ah lithium iron phosphate battery
- Load Capacity
- 300 kg
- Maximum Speed
- 1.2 m/s
- Lifting Height
- 50 mm
- Charging Method
- Manual / Automatic (forward & reverse docking)
- Navigation Method
- SLAM laser navigation
- Safety Protection
- LIDAR + Collision bumper + Emergency stop button
- Working Direction
- Forward, reverse, left/right turn, in-place rotation
- Communication Mode
- Wireless communication
- Typical Application
- Industrial automation, logistics, warehousing, hospital transport
- Positioning Accuracy
- ±10 mm
- Dimensions (L × W × H)
- 822 × 602 × 265 mm
