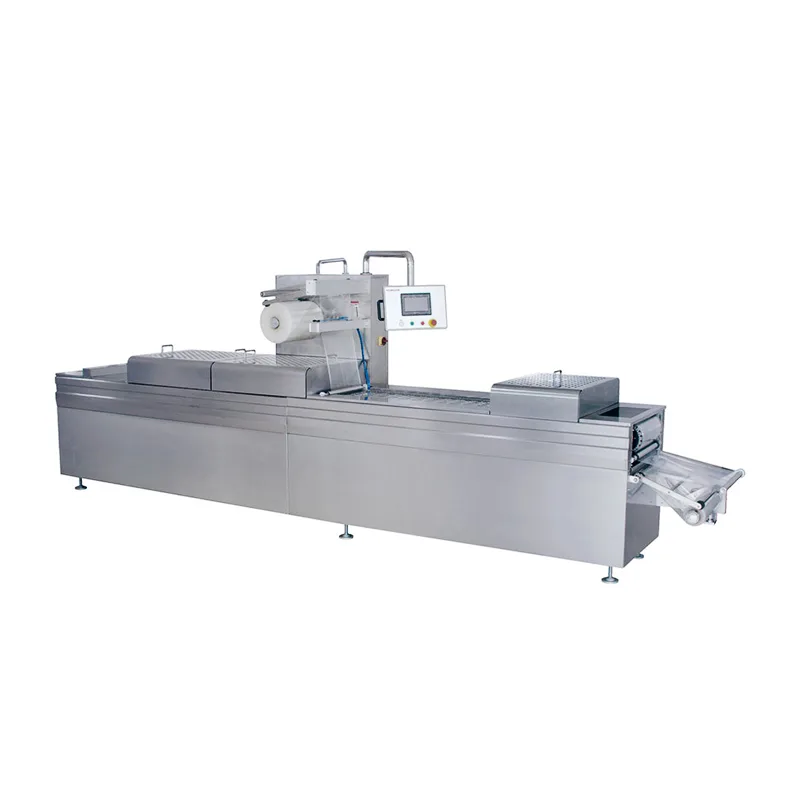

Continuous Stretch Film Vacuum Packaging Machine
This continuous stretch vacuum packaging machine is designed for high-speed and large-scale packaging applications. Using forming film and sealing film, it automatically completes forming, filling, vacuumizing, sealing, cutting, and output in one fully automated cycle. With a pac
Specifications
- Model
- YS-ZDZK-320R
- Net Weight
- 1500 kg
- Total Power
- 12 kW
- Machine Size
- 4500 × 1030 × 1900 mm
- Machine Type
- Continuous stretch vacuum packaging machine
- Power Supply
- 380V, 50Hz, 3-phase
- Heating Power
- 8 kW
- Vacuum Degree
- ≤ 200 Pa
- Working Speed
- 200–400 cycles/hour
- Air Consumption
- 0.8–1 m³/min
- Lower Film Width
- 322 mm
- Upper Film Width
- 293 mm
- Lower Film Thickness
- 0.12–0.30 mm
- Upper Film Thickness
- 0.08–0.12 mm
- Vacuum Pump Capacity
- 100 m³/h
- Packaging Applications
- Food, meat, seafood, vegetables, fruits, snacks, pickles, medical equipment, hardware, electronics, pharmaceuticals
- Compressed Air Pressure
- ≥ 0.6 MPa
- Film Core Shaft Diameter
- 76 mm (upper & lower)
- Lower Film Roll Diameter
- 350 mm
- Upper Film Roll Diameter
- 250 mm
- Main Electrical Components
- PLC, Inverters, Contactors, Relays, Servo Motors, Sensors, Pneumatic units
