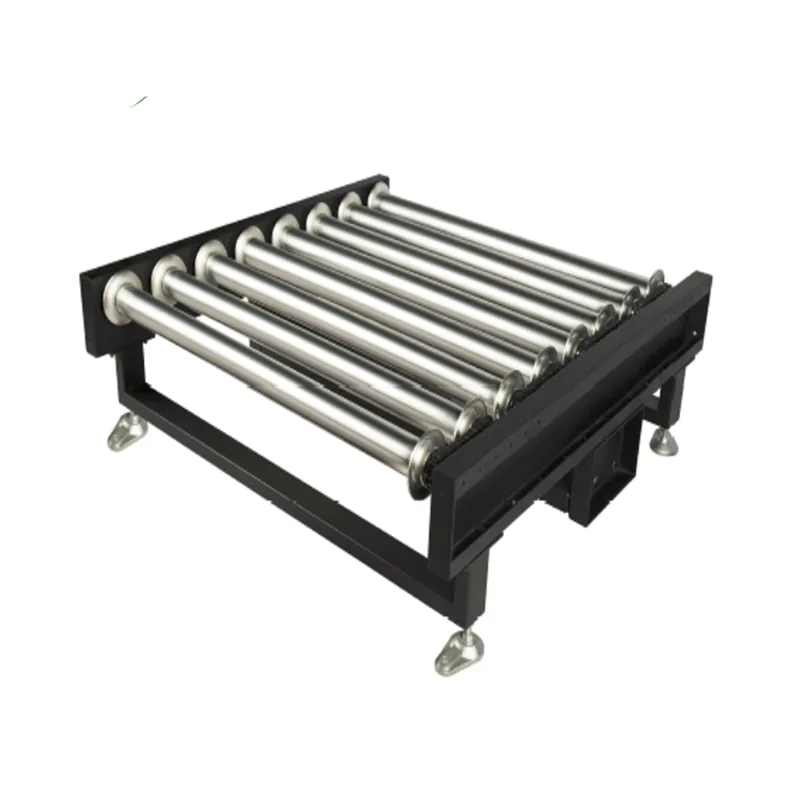

Sprocket Roller Conveyor
This sprocket-driven roller conveyor is engineered for efficient indoor material handling, supporting a wide range of products including boxes, bags, pallets, and irregular items placed in trays. With customizable roller diameters, widths, speeds, and lengths up to 20 meters, it
Specifications
- Item
- Details
- Speed
- Max 30 m/min
- Height
- 500 – 1500 mm
- Application
- Suitable for boxed, bagged, palletized, or irregular goods
- Roller Pitch
- 75 / 100 / 150 mm
- Power Options
- 0.37 kW / 0.55 kW / 0.75 kW / 1.5 kW
- Conveyor Length
- Up to 20 m
- Effective Width
- 500 / 600 / 700 / 800 / 900 / 1000 / 1500 mm
- Roller Diameter
- Φ38 / Φ42 / Φ50 / Φ60 / Φ76 / Φ89
- Structure Material
- Folded plate 140×40×15×3; Aluminum profile 130×23
- Support Stand Material
- Square tube 60×40×2; Aluminum profile 40×40
