AseanMachine Selected
Digital Laser Displacement Sensor
This digital laser triangulation displacement sensor provides stable, high-precision measurement for industrial automation and quality inspection applications. It adopts a compact design with an OLED display, intuitive four-key operation, and a robust PBT housing with a PMMA opti
Specifications
- Type
- Digital laser triangulation displacement sensor
- Weight
- 90 g
- Display
- OLED display + status LED
- Category
- Details

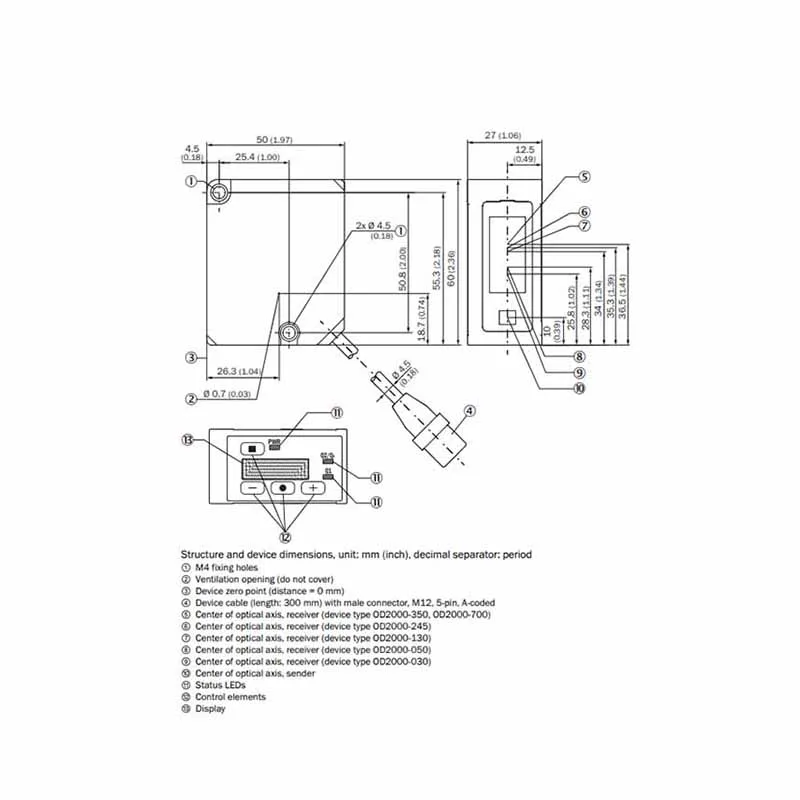

- Dimensions
- 36.1 × 62.7 × 57.7 mm / 27 × 60 × 50 mm
- Application
- Displacement, position, thickness, motion measurement
- Operation Keys
- 4-button control
- Connection Type
- M12 5-pin A-coded plug, 30 cm cable
- Preheating Time
- < 30 minutes
- Housing Material
- PBT plastic
- Power Consumption
- 1.5 W at 24 V DC
- Optical Window Material
- PMMA
