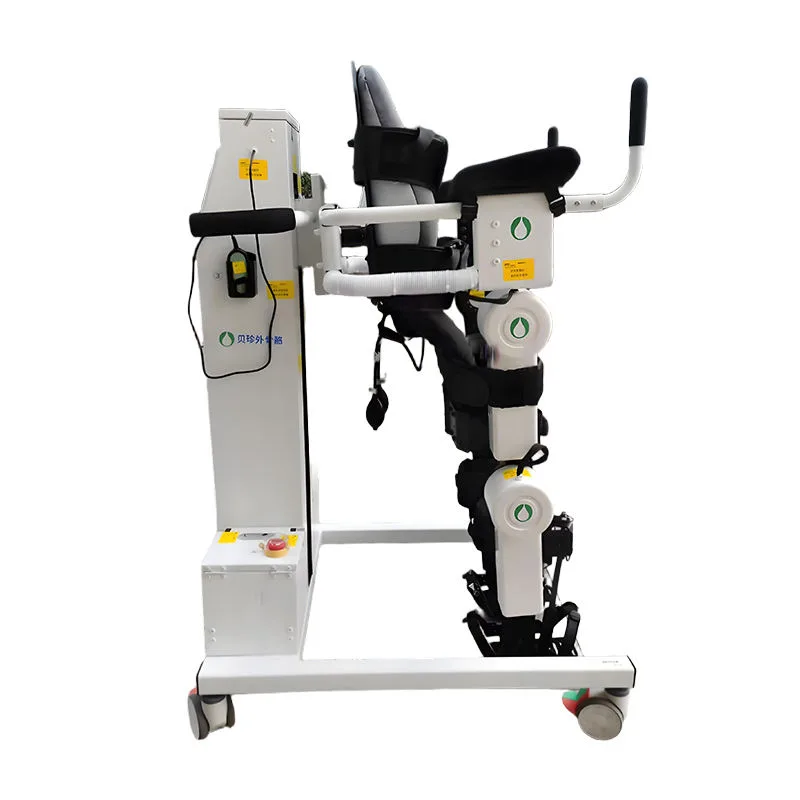

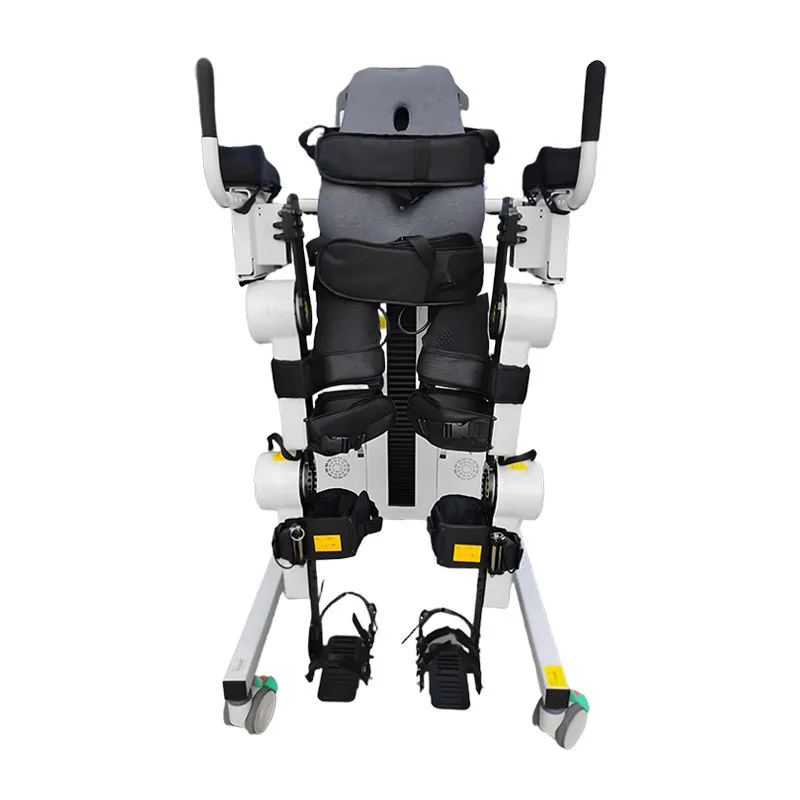

Lower-Limb Rehabilitation Robot
This lower-limb rehabilitation robot is designed to assist users with mobility training and daily movement recovery. Built with a lightweight aluminum alloy frame and dual brushless motors, it offers stable, smooth, and adjustable movement performance. Its ergonomic seating syste
Specifications
- Frame
- Aluminum alloy
- Motor
- 150W × 2 brushless motors
- Wheels
- 7-inch front, 11-inch rear, anti-roll wheel
- Battery
- 24V 12Ah lithium battery
- Seat Depth
- 430 mm
- Seat Width
- 430 mm
- Folding Size
- 590 × 340 × 760 mm
- Gross Weight
- 26 kg
- Charging Time
- 4–6 hours
- Driving Range
- 15 km (12Ah battery)
- Load Capacity
- 120 kg
- Vehicle Width
- 590 mm
- Battery Weight
- 2.2 kg
- Packaging Size
- 610 × 360 × 790 mm
- Seat Thickness
- 40 mm
- Vehicle Height
- 1030 mm
- Vehicle Length
- 940 mm
- Backrest Height
- 490 mm
- Climbing Ability
- 9°
- Max Forward Speed
- 6 km/h
- Max Reverse Speed
- 2 km/h
- Wheel Hub Material
- Magnesium alloy / plastic steel
- Seat Cushion Material
- Oxford cloth, memory cotton sponge
- Gully Width Capability
- 100 mm
- Minimum Turning Radius
- 900 mm
- Seat-to-Footrest Height
- 410 mm
- Seat Height (from ground)
- 490 mm
- Obstacle Height Capability
- 25 mm
- Net Weight (without battery)
- 19 kg + 0.55 kg
