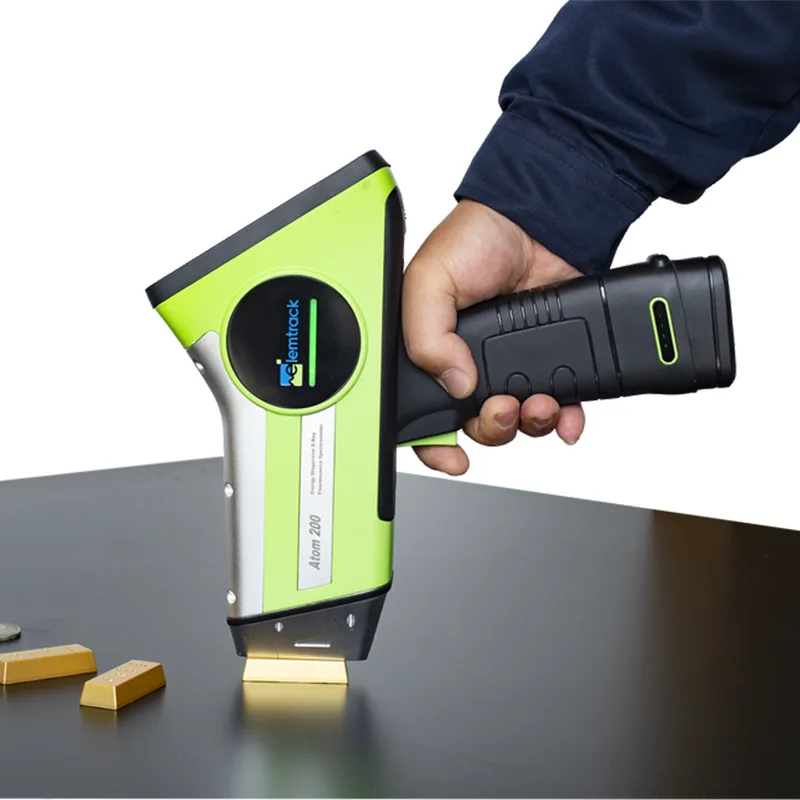

ATOM 200 Handheld XRF Gold Analyzer
The ATOM 200 Handheld XRF Analyzer is a compact, high-performance device designed for fast, accurate detection of gold, precious metals, and alloys. Equipped with an advanced SDD/Si-PIN detector, 50 kV X-ray tube, and low-noise signal processing system, it ensures laboratory-grad
Specifications
- CPU
- 4-core 1.8 GHz
- Model
- ATOM 200
- Memory
- 24 GB
- Battery
- Hot-swappable; 8+ hours working time; power display
- Cameras
- HD dual camera (environment camera optional)
- Navigation
- GPS & Beidou (optional)
- Connectivity
- WiFi, Bluetooth, mobile APP control
- Machine Size
- 27.5 × 24.5 × 8.2 cm
- Optical Path
- Ultra-ST X-ray optical path
- Product Type
- Handheld XRF Analyzer
- X-ray Source
- 50 kV / 200 μA, programmable adjustable
- Detector Type
- SDD or Si-PIN Detector
- Machine Weight
- 1.5 kg (with battery)
- Design Features
- Lightweight, anti-radiation, strong heat dissipation
- Operating System
- Industrial-grade Linux
- Analysis Software
- Alloy analysis software with built-in grade library
- Measurement Range
- ppm ~ 99.99%
- Signal Processing
- Low-noise pulse signal processing system
- Additional Features
- Built-in air pressure compensation (optional), multi-interface power sync display
- Measurable Elements
- Mg(Ti) ~ U
- Working Environment
- -10°C ~ 50°C
