AI Vision Humanoid Robot

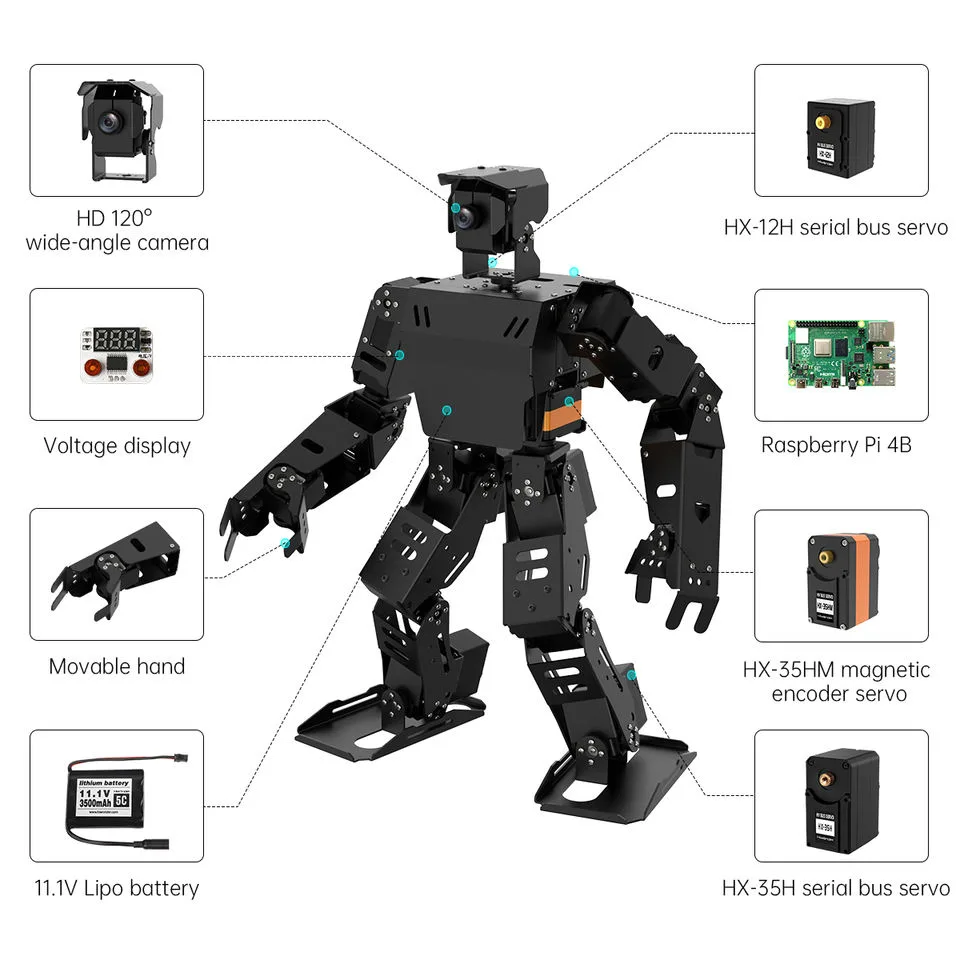

The Education AI Vision Humanoid Robot is a high-performance teaching and research platform based on the Robot Operating System (ROS) and Raspberry Pi. Featuring 24 degrees of freedom (DOF), advanced self-stabilizing inverse-kinematics algorithms, and a dual-axis HD camera, it su
Specifications
- Item
- Details
- Speed
- 7 cm/s (adjustable walking speed)
- Camera
- 120° wide-angle 1 MP HD camera (2 DOF manual focus)
- Weight
- Lightweight for desktop education
- Feedback
- Voltage, position, and temperature monitoring
- Warranty
- 1 Year
- Processor
- Raspberry Pi computing module
- IMU Module
- 3-axis gyroscope + accelerometer + compass
- Application
- Robotics education / AI vision training / STEM research
- Power Supply
- 11.1 V 3500 mAh Li-Po battery
- Product Type
- Educational Humanoid Robot
- Communication
- Wi-Fi / USB / Serial ports
- Mounting Type
- Assembled, ready to run
- Control Software
- WonderROS App (Android/iOS) & AiNex Visual Action Editor
- Operating System
- ROS (Robot Operating System)
- Motion Simulation
- Gazebo 3D simulation support
- Size (L × W × H)
- 193 × 135 × 415 mm
- Structure Material
- CNC-machined aluminum alloy frame
- Programming Language
- Python / C++
- Degrees of Freedom (DOF)
- 24 DOF full-body motion
