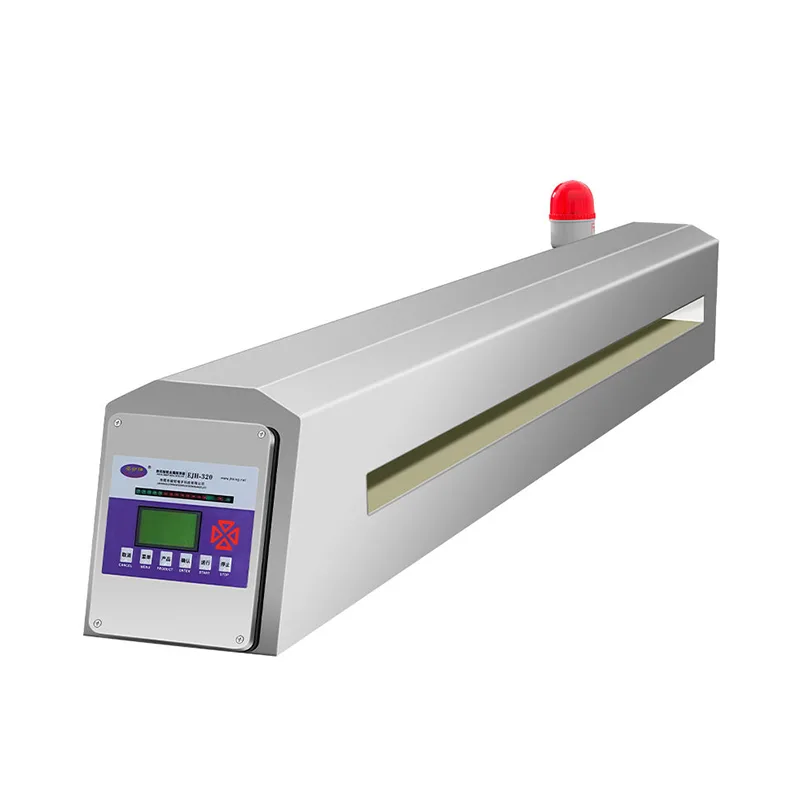

Tunnel Food Metal Detector
This industrial conveyor tunnel metal detector is designed for detecting metal contaminants in food, pharmaceuticals, plastics, textiles, and recycling production lines. Equipped with DSP processing, auto-balance calibration, phase-tracking, and product-effect compensation, it en
Specifications
- Item
- Details
- Type
- Conveyor Tunnel Metal Detector
- Model
- EJH-360
- Material
- SUS304 for detector, stainless steel frame
- Alarm Mode
- Sound + Light
- Flow Speed
- 25 m/min fixed or 10–40 m/min adjustable
- Application
- Food, pharmaceuticals, chemicals, toys, garments, recycling lines
- Sensitivity
- Detects ferrous, non-ferrous, stainless steel
- Power Supply
- 110V/60Hz or 220V/50Hz
- Belt Material
- Food-grade PU/PVC
- Flow Direction
- L→R or R→L (optional)
- Conveyor Height
- 750 mm ± 100 mm (adjustable, with wheels)
- System Language
- English / Spanish
- Rejection System
- Pusher / Air Jet / Drop Down
- Waterproof Level
- IP66
- Power Consumption
- 90W / 120W / 200W
- Operating Frequency
- 10 kHz
- Conveyor Belt Length
- 1500 mm
- Search Coil Diameter
- 12 cm
