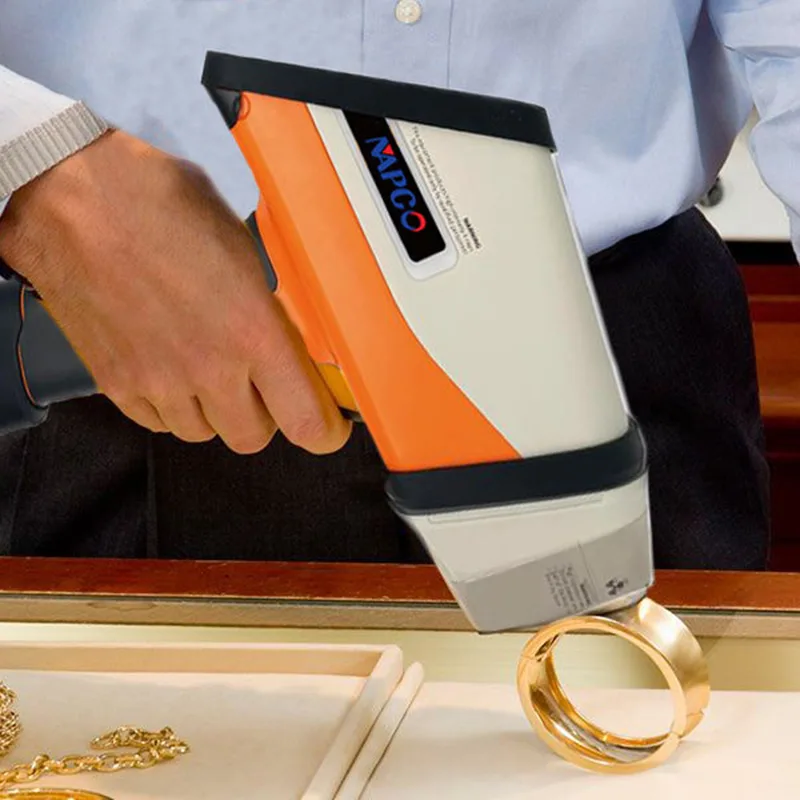

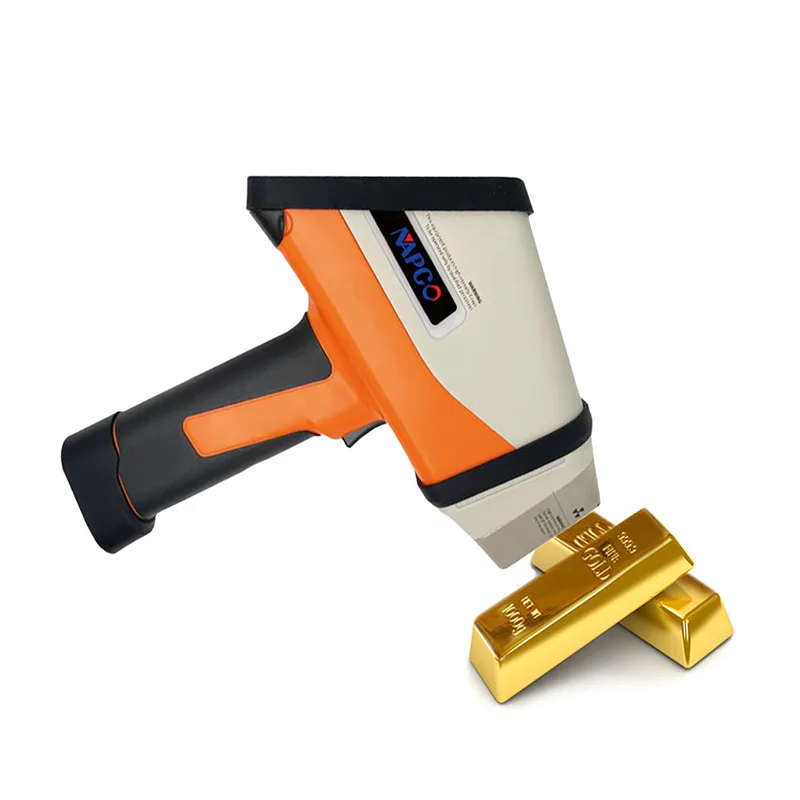

Handheld XRF Gold Analyzer
This handheld XRF analyzer provides fast, accurate, and non-destructive testing of precious metals, alloys, and plated materials. Equipped with a high-performance semiconductor detector, multi-position automatic filters, and optional CCD camera positioning, it delivers laboratory
Specifications
- Filter
- Multi-position automatic filter changer
- Weight
- Approx. 1.5 kg (including battery)
- Window
- Kapton window with anti-puncture design
- Display
- Capacitive touch color display
- Detector
- High-performance Si-PIN detector / Optimized SDD detector
- Humidity
- 0%–80%
- Collimator
- 5 mm collimator
- Dimensions
- 220 × 91 × 276 mm
- Data Storage
- 100,000+ results
- Data Transfer
- WiFi, USB
- Radiation Safety
- Safety guard device; tube shutoff without sample; password security
- Camera (Optional)
- Integrated CCD camera with autofocus for positioning and recording
- Elements Measured
- Ti, V, Cr, Mn, Fe, Co, Ni, Hf, Ta, Re, Cu, Zn, W, Se, Pb, Bi, Zr, Nb, Mo, Al, Pd, Ag, Sn, Sb, etc.
- Software Language
- English + multilingual options
- Environmental Temperature
- -10°C to 50°C
