6WD Off-Road UGV Chassis

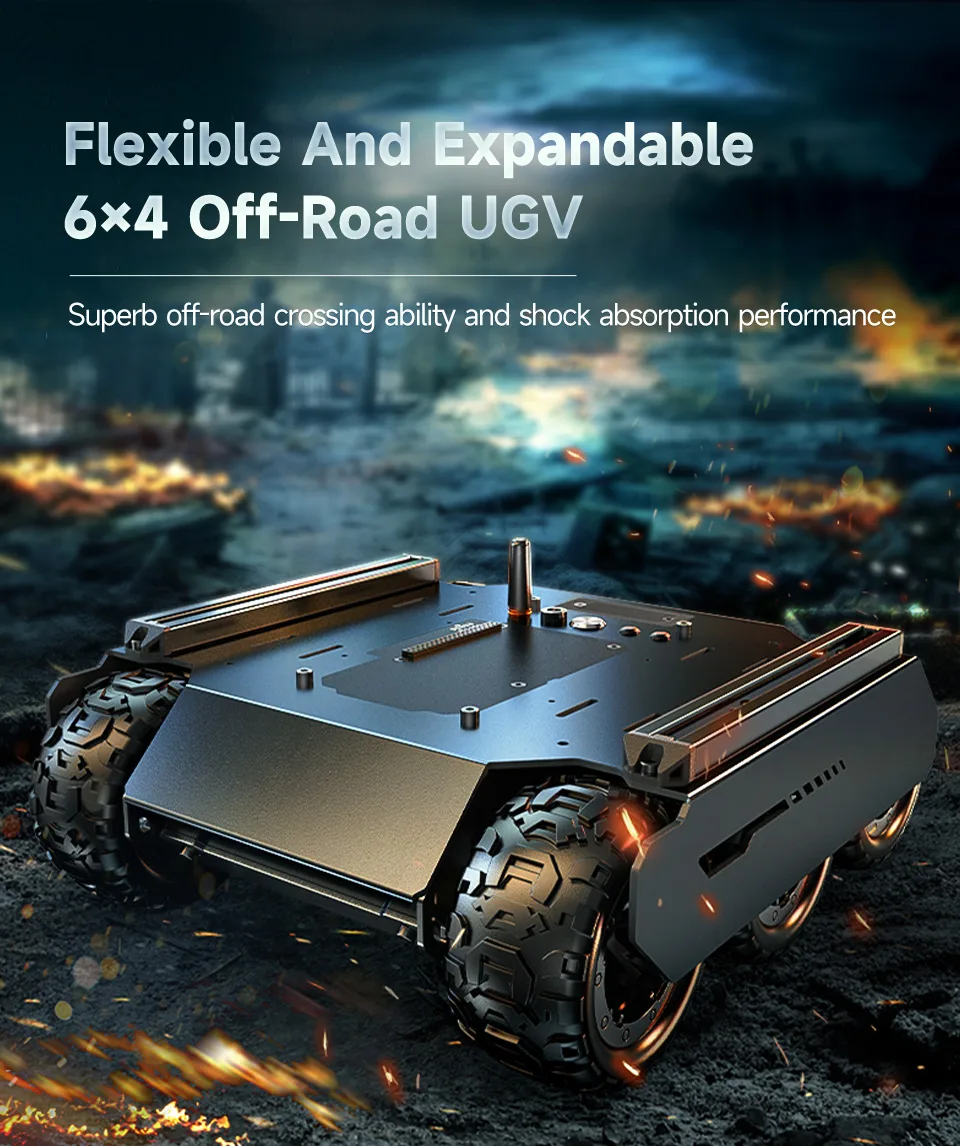

The 6×4 Off-Road UGV Mobile Robot Chassis is a flexible and expandable unmanned ground vehicle designed for robotics research, outdoor exploration, and industrial development applications. Equipped with high-speed motors, ESP32-based control system, and open-source Web APP, it of
Specifications
- Item
- Details
- Display

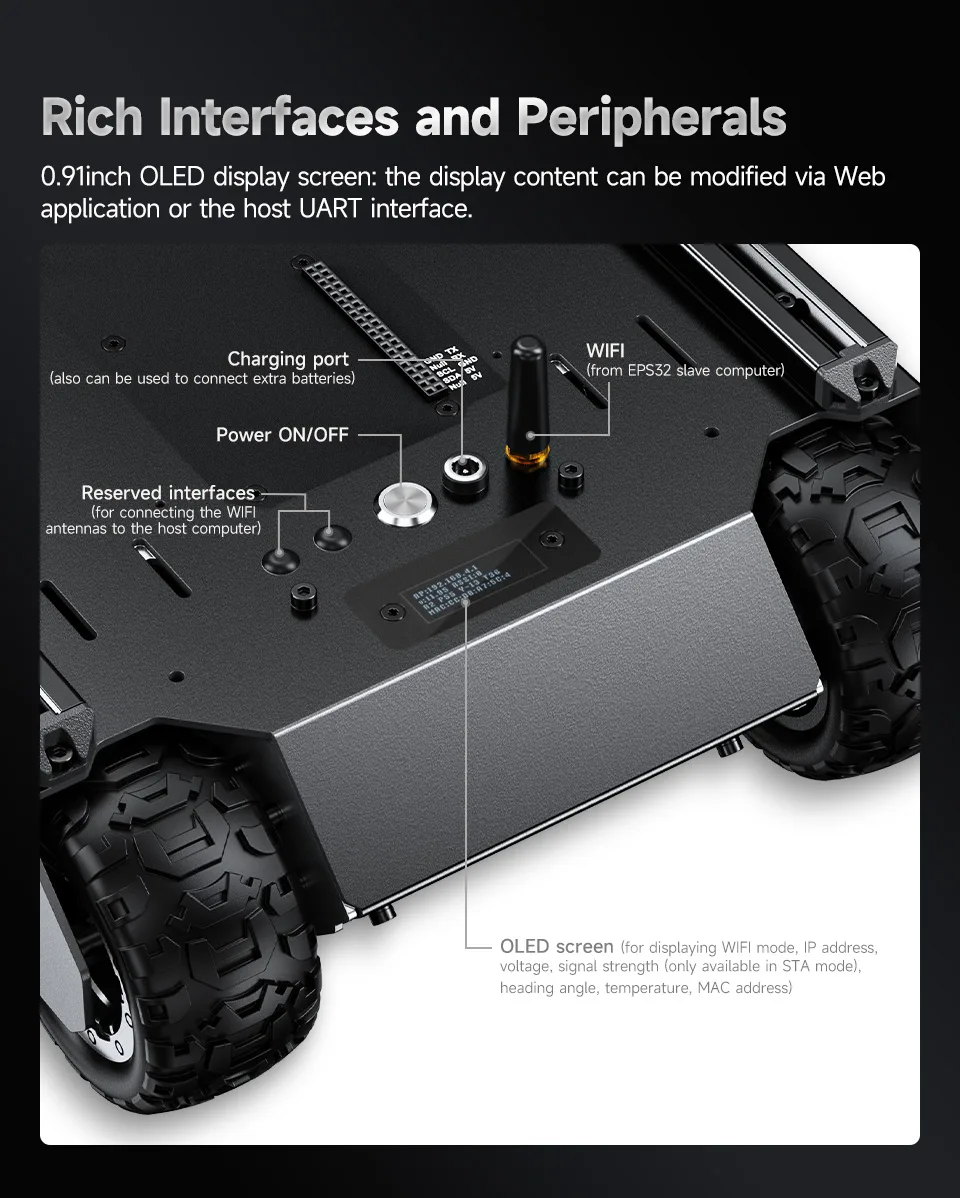

- 0.91” OLED screen
- Software
- Open-source Web application with secondary development support
- Use Cases
- Research, inspection, industrial development, education
- Drive Mode
- 6 Wheels × 4WD
- Motor Type
- High-speed motor with closed-loop PID control
- Product Type
- Off-Road UGV Mobile Robot Chassis
- Body Material

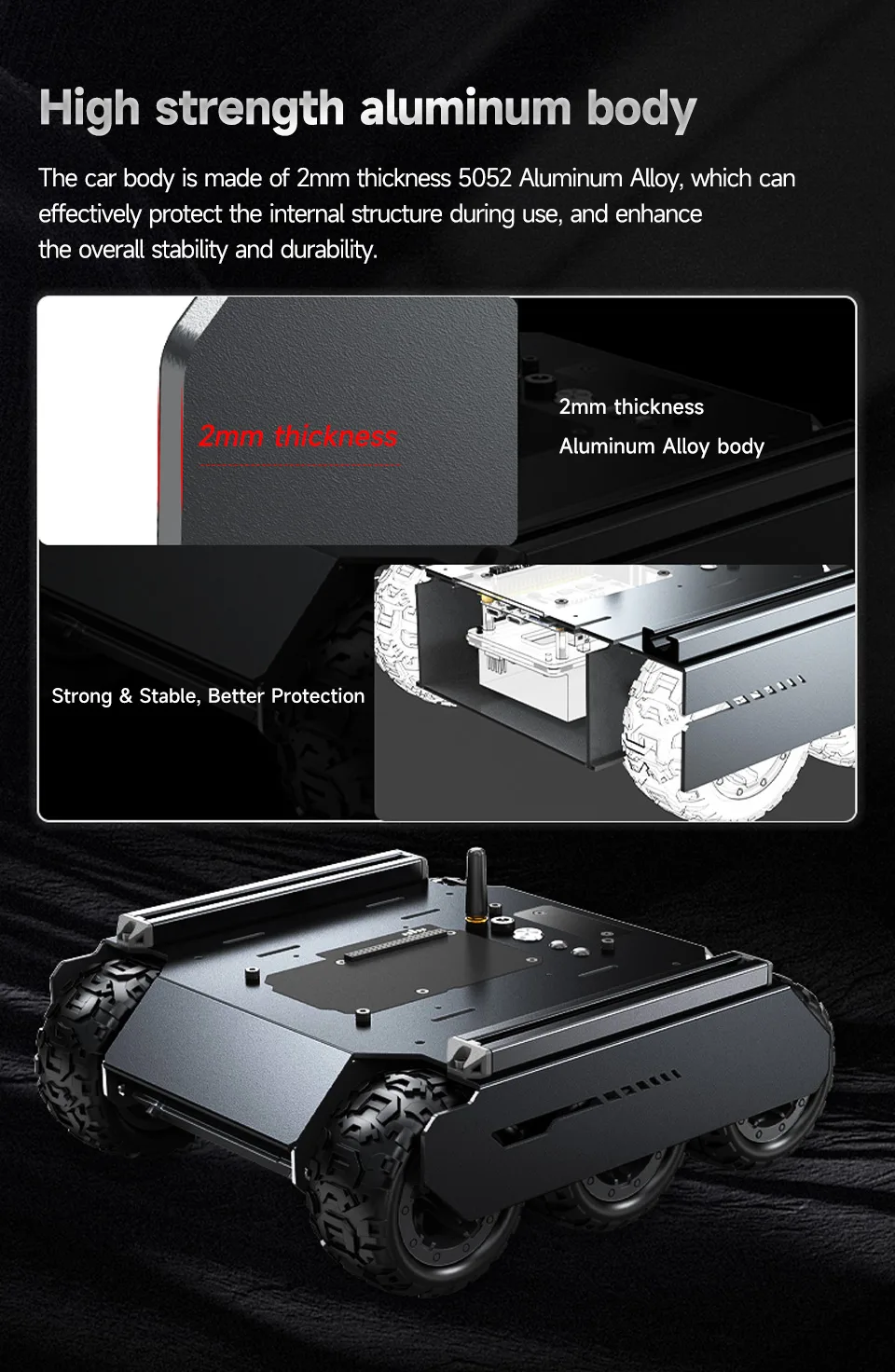

- 2 mm 5052 Aluminum Alloy
- Maximum Speed
- 1.3 m/s
- Control System
- ESP32 Slave Controller
- Frame Expansion

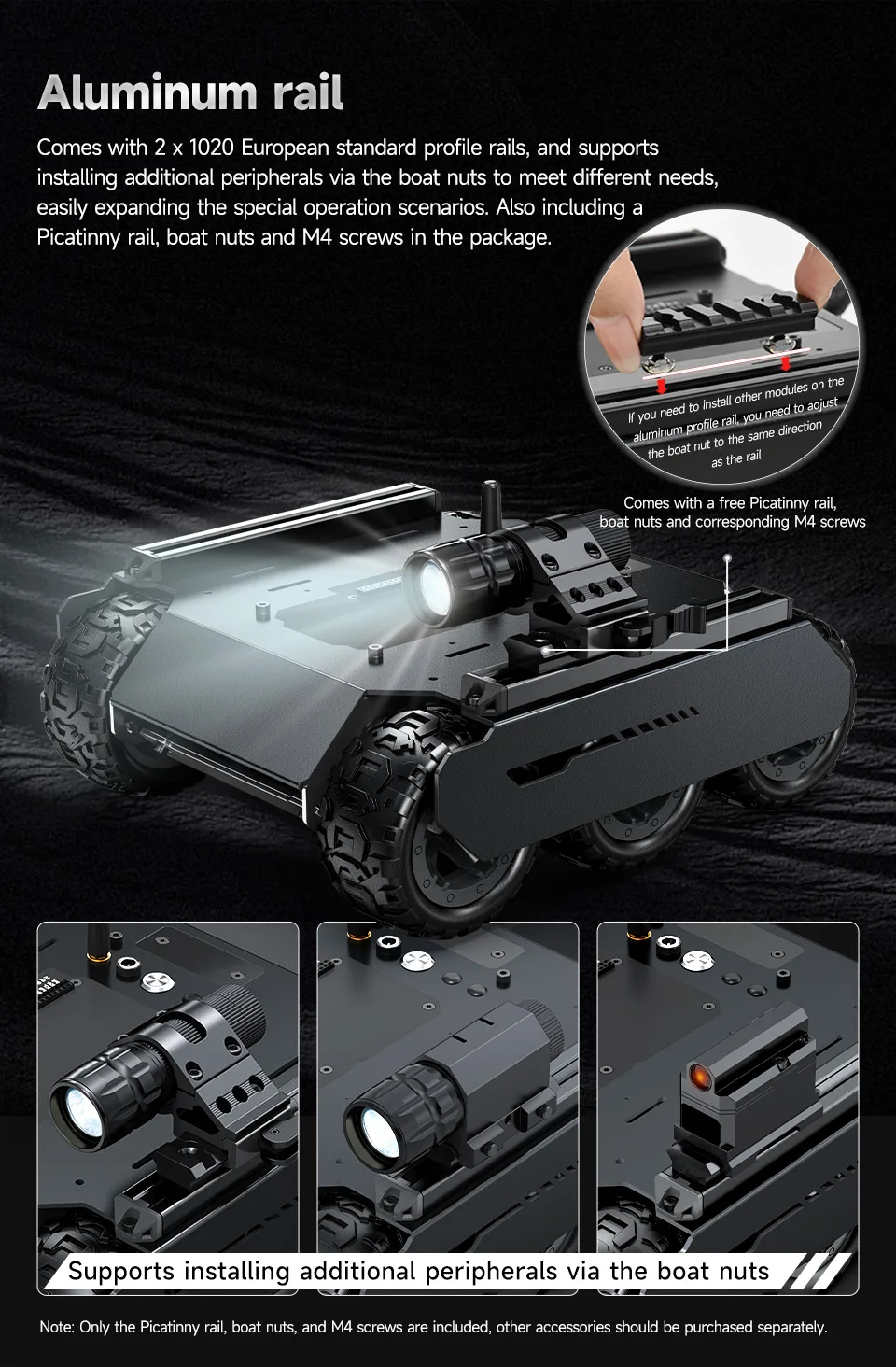

- Dual 1020 aluminum extension rails + Picatinny rail
- Shock Absorption
- Independent suspension with enhanced damping
- Applicable Terrain
- Grassland, gravel, sand, uneven surfaces
- Supported Platform
- Multi-host & Web APP (wireless remote control)
- Included Accessories
- Boat nuts, M4 screws, and installation kit
- Communication Interface
- UART / I²C
