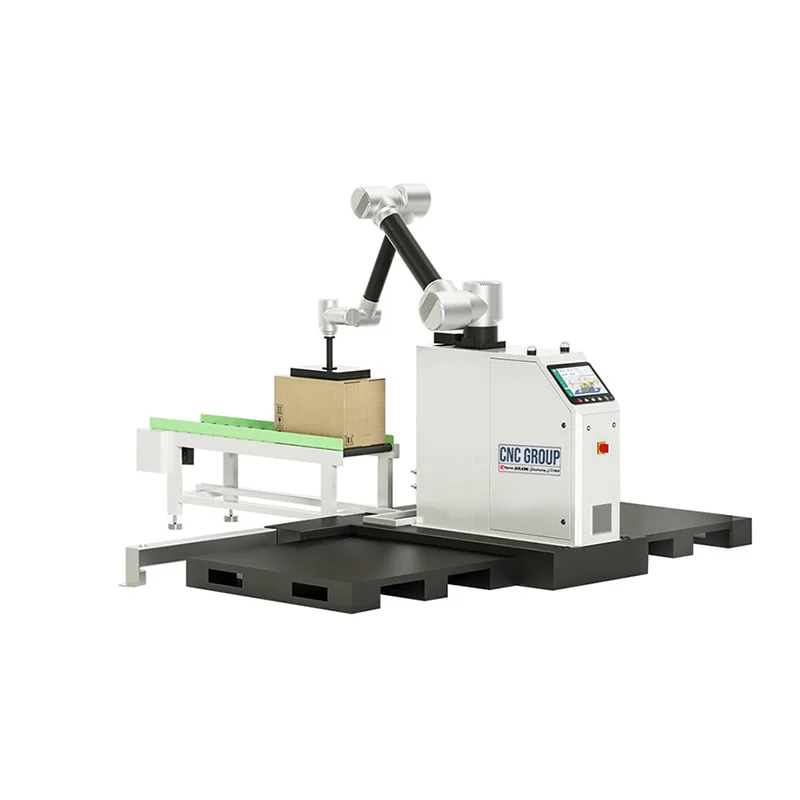

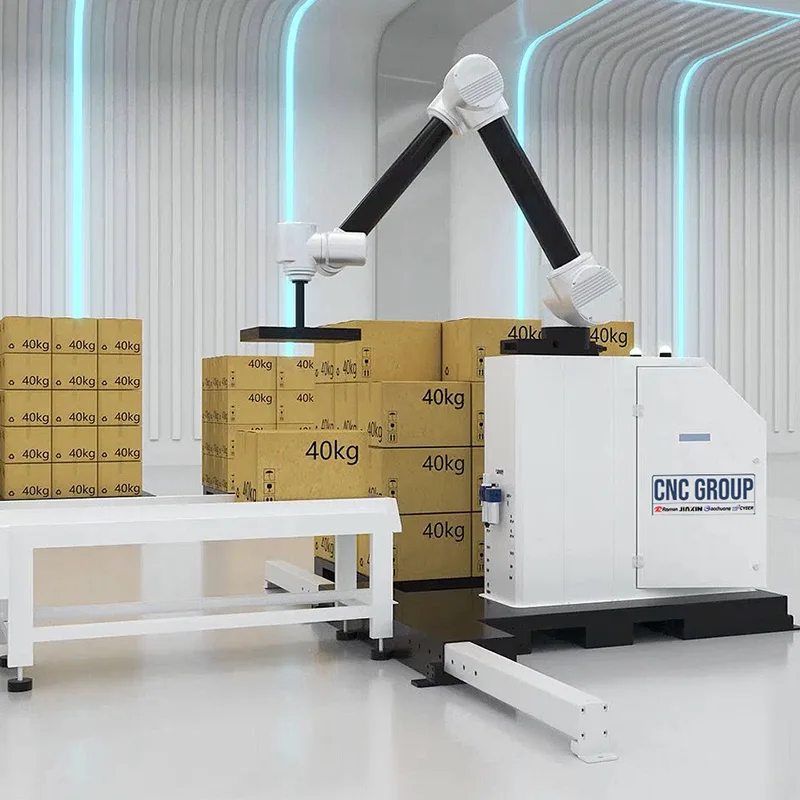

Automatic Packing & Palletizing Line
This fully automated packing and palletizing system integrates unpacking, sealing, case packing, and palletizing into a single streamlined workflow. With a 1700 mm working radius, 40 kg load capacity, and stacking speeds up to 12 pcs/min, it enables efficient handling of various
Specifications
- Floor Area
- 1505 × 1716 mm
- Power Supply
- Single Phase 220V / 50Hz
- Load Capacity
- 40 kg
- Machine Weight
- ≈ 360 kg
- Stacking Speed
- 6–12 pcs/min
- Working Radius
- 1700 mm
- Protection Level
- IP54
- Vertical Distance
- Fixed H = 1600 mm
- Communication Mode
- TCP/IP
- Maximum Pallet Size
- 1200 × 1200 mm
- Operating Temperature
- 0–55°C
- Maximum Power Dissipation
- 4 kW
- Repeated Positioning Accuracy
- ±0.04 mm
