Automatic Carton Forming Machine
A fully automatic carton opening and forming machine designed for fast-paced e-commerce and logistics packaging lines. It integrates carton opening, forming, and bottom sealing with stable performance, low energy consumption, and multiple safety protections.
Specifications
- Tape Width
- 4.8–7.2 cm
- Air Pressure
- 5–6 kg/cm²
- Power Supply
- 220V, 50Hz, 400W
- Table Height
- 650 mm
- Machine Weight
- 450 kg
- Air Consumption
- 200 NL/min

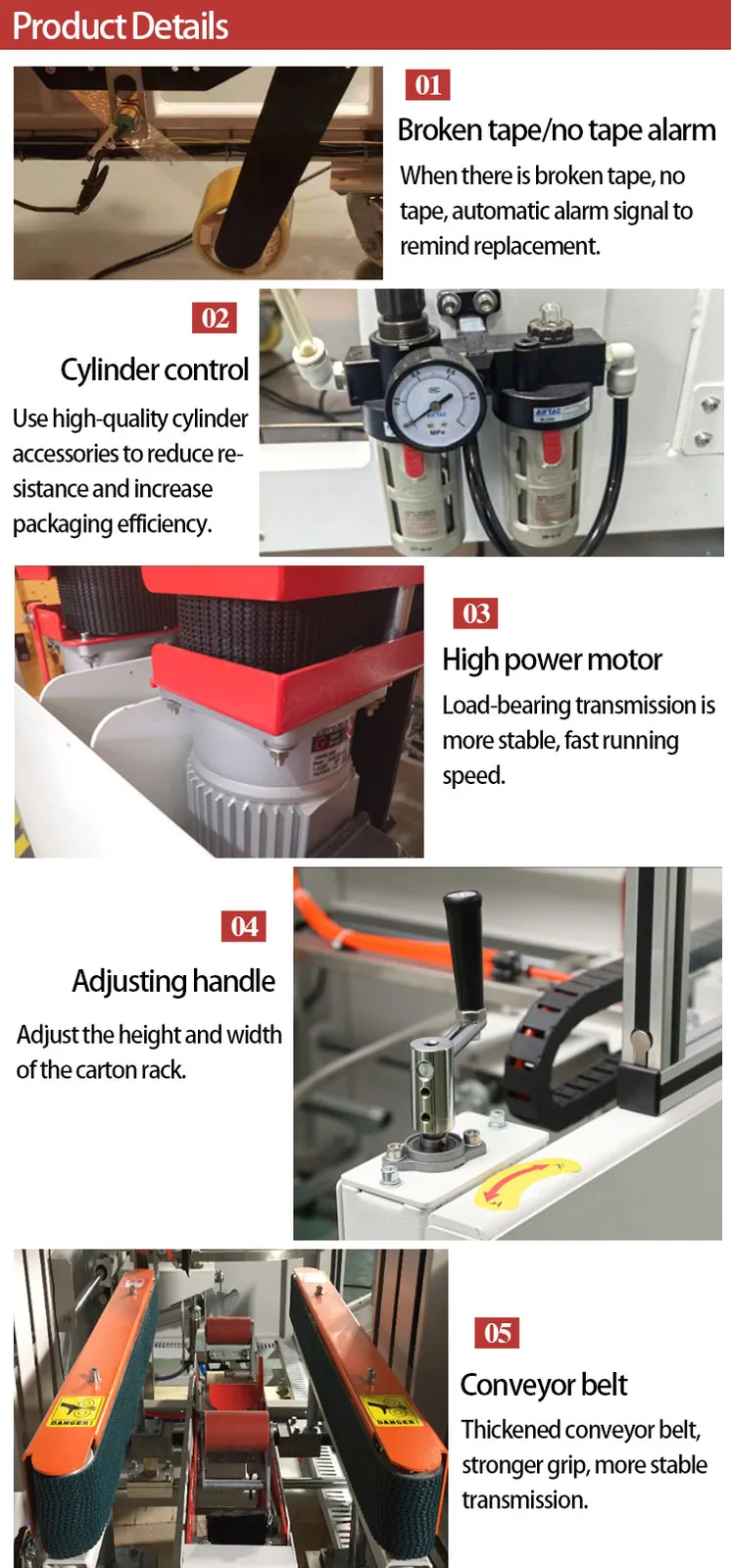

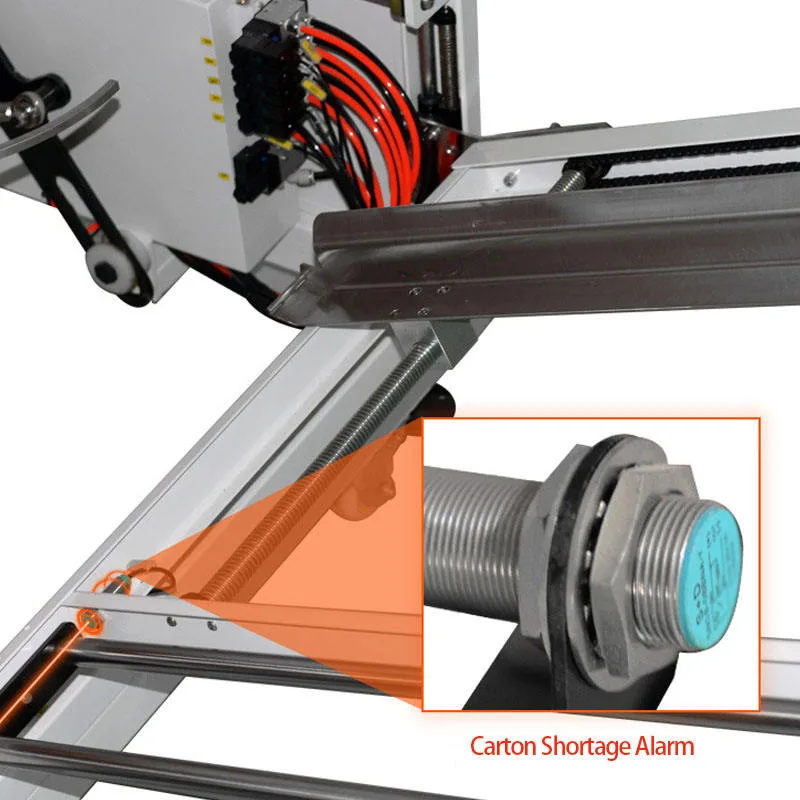

- Alarm Functions
- No tape alarm, no box alarm
- Safety Features
- Overload protection, safety door
- Storage Capacity
- Approx. 50 cartons (depends on carton thickness)
- Machine Dimensions
- 2075 × 1270 × 1475 mm
- Carton Forming Speed
- 8–10 boxes/min
