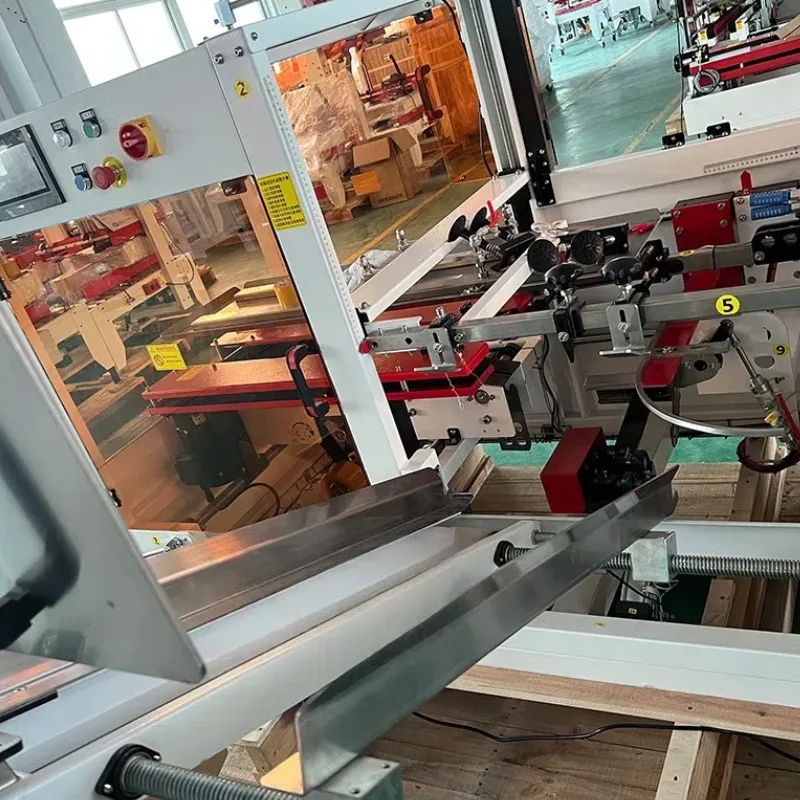

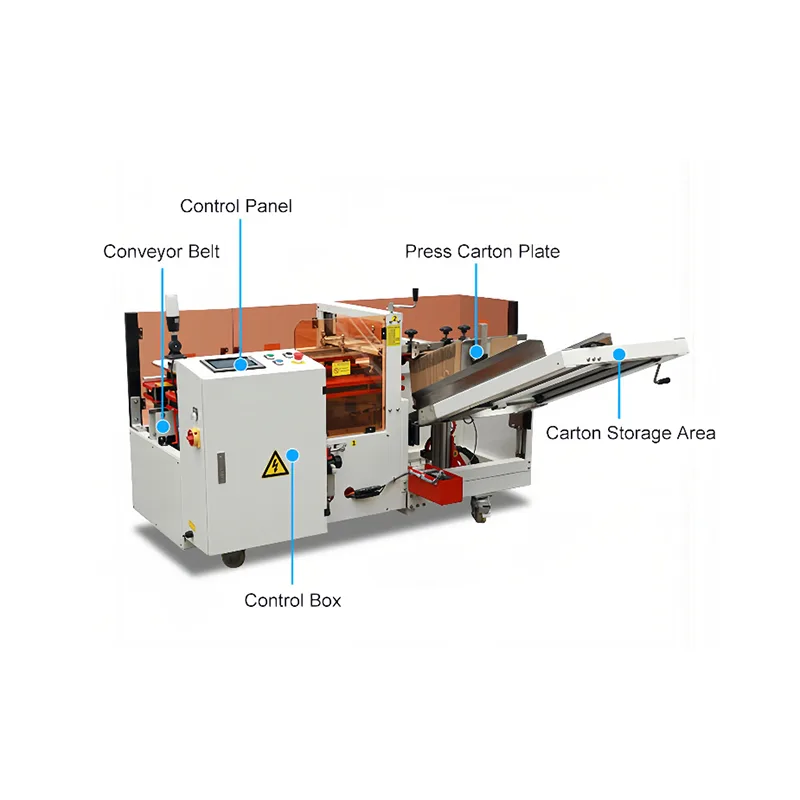

Servo Carton Erecting Machine
A fully automatic high-speed servo-driven carton opening machine designed for e-commerce and industrial packaging lines. It supports multiple carton sizes, delivers fast and stable box forming, and ensures precise sealing with servo-controlled accuracy. Ideal for continuous, high
Specifications
- Model
- CS-5050
- Tape Width
- 48 / 60 / 75 mm
- Power Supply
- 220V, 50/60Hz, 240W
- Machine Weight
- 500 kg
- Air Consumption
- 500 NL/min
- Carton Dimensions
- L 250–450 mm / W 150–400 mm / H 100–400 mm
- Machine Dimensions
- 2450 × 2100 × 1450 mm
- Carton Opening Speed
- 18 cartons/min
- Carton Storage Capacity
- 80–100 cartons（约1000 mm）
