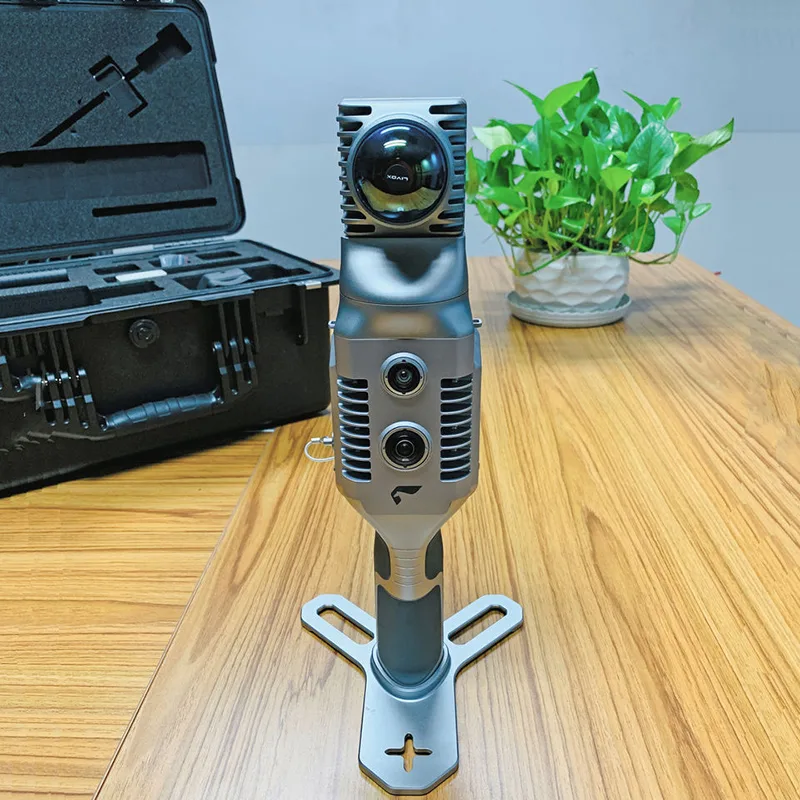

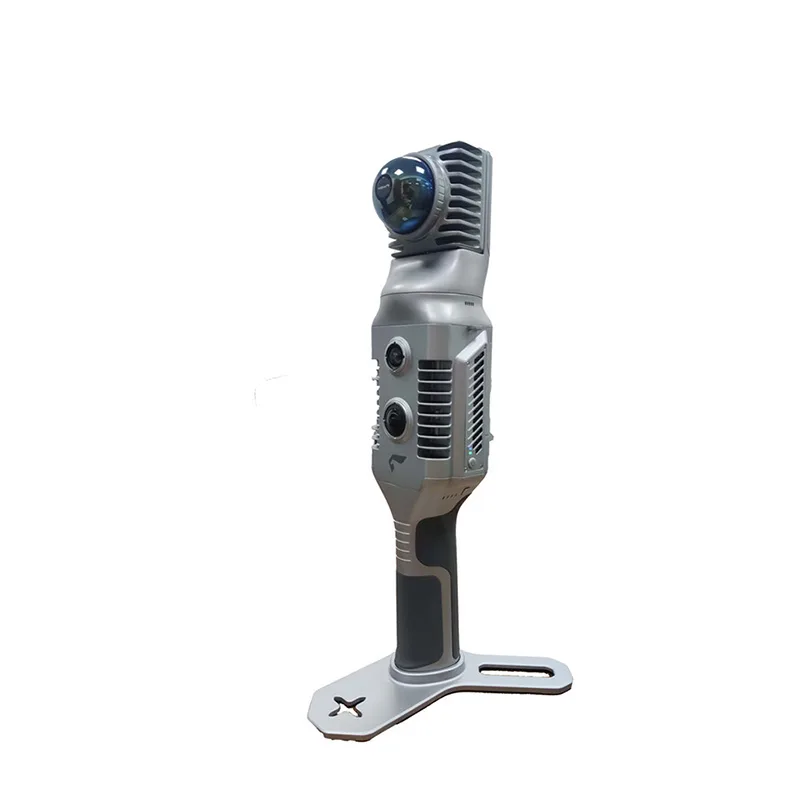

360 Handheld 3D Laser Scanner
This handheld 3D laser scanner is designed for real-time spatial data acquisition and mapping in both indoor and outdoor environments. Equipped with a 360-degree rotating laser head, integrated visual and texture cameras, and an advanced SLAM-based positioning system, it enables
Specifications
- FOV
- 100° (Diagonal)
- Echo
- Single (Strongest)
- Range
- 0.1 m ~ 70 m @ 80%
- Weight
- 925g (Host), 1450g (With handle and base)
- CMOS size
- 1 inch
- Dimensions
- 94.5 mm x 84.6 mm x 219 mm (Host)
- Frame rate
- 30 Hz
- Resolution
- 12 MP
- Wavelength
- 905 nm
- Laser class
- Class 1
- Scanning FOV
- Panoramic 360°
- Input voltage
- 20 V
- Internal storage
- 512 GB SSD
- Protection class
- IP54
- Absolute accuracy
- ≤ 5cm (Post-processing)
- Power consumption
- 20 W (Typical)
- Relative accuracy
- ≤ 2cm (Post-processing), ≤ 3cm (Real-time)
- Point cloud thickness
- ≤ 1cm (Post-processing), ≤ 2cm (Real-time)
- Laser pulse repetition rate
- 200 kHz
