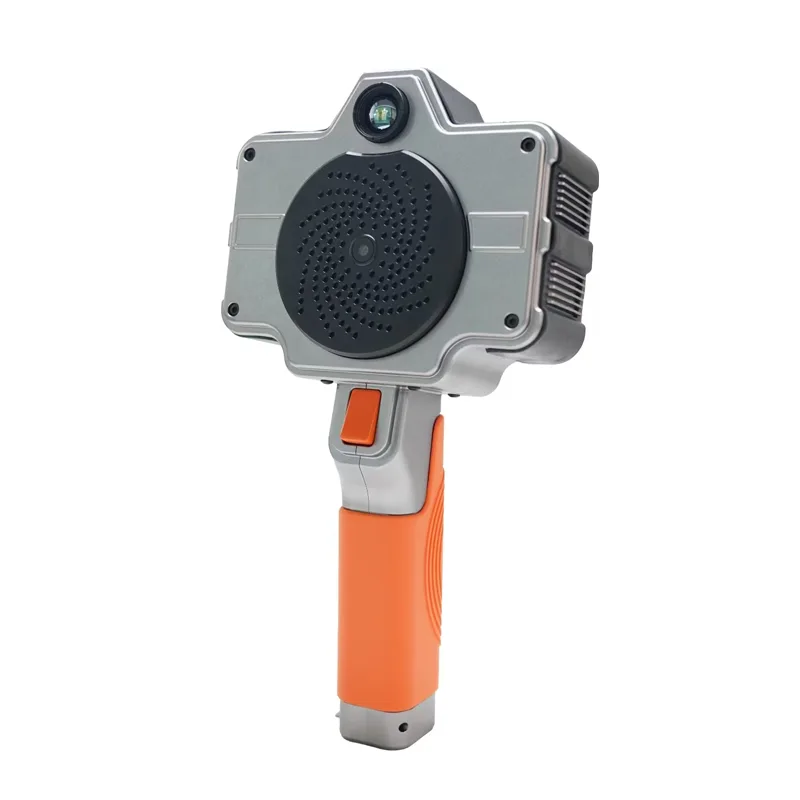

Handheld Acoustic Thermal Imager
The handheld acoustic thermal imager is an advanced diagnostic tool combining infrared imaging with a 162-microphone acoustic array, enabling real-time visualization of temperature anomalies and ultrasonic sound sources. With a 13-megapixel visible camera, high-resolution 640×512
Specifications
- Screen Size
- 5.0-inch, 720 × 1280 resolution
- Battery Life
- ≥3 hours, removable fast-charging battery
- Data Storage
- 64 GB built-in, SD card expandable
- IR Resolution
- 640 × 512 pixels
- Frequency Range
- 2 kHz – 100 kHz
- Microphone Array
- 162 high-sensitivity digital microphones
- Temperature Range
- -20°C to 550°C
- Detection Distance
- 0.3 m – 150 m
- Visible Light Camera
- 13 MP resolution
