Handheld XRF Precious Metal Analyzer

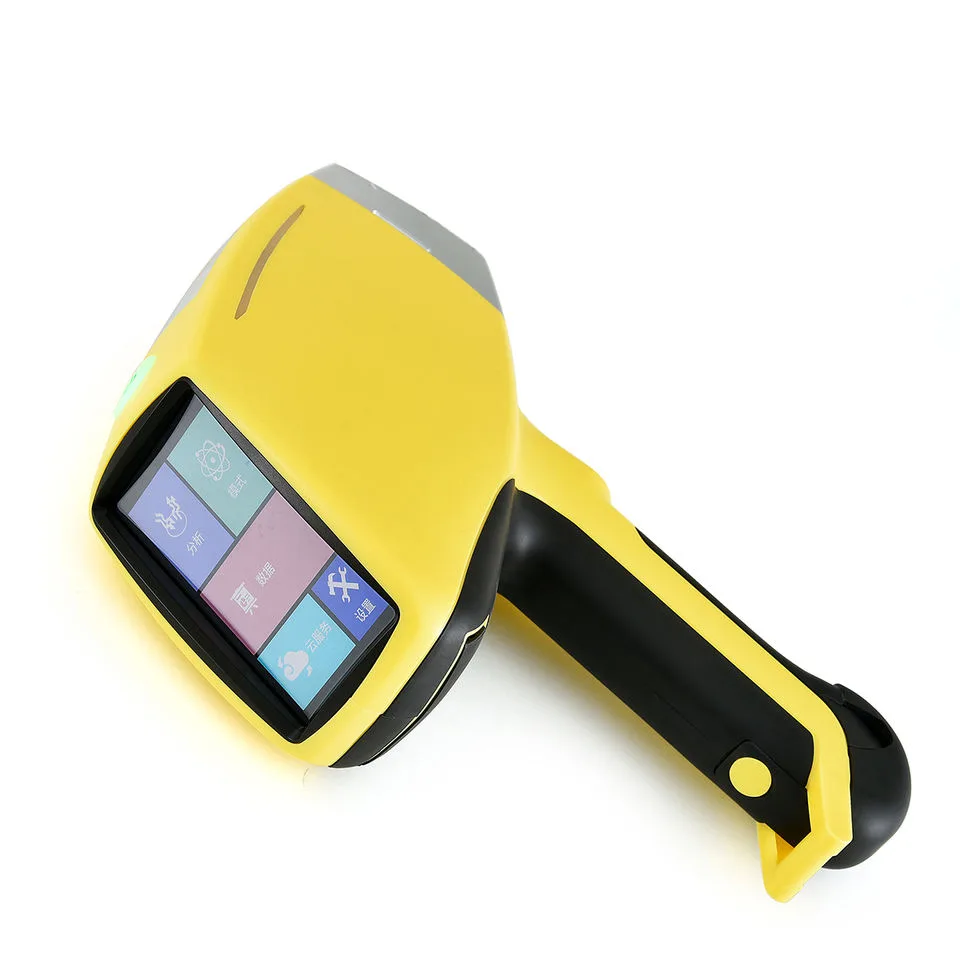

The handheld portable XRF gold tester is a fast, non-destructive metal analysis device designed for on-site precious metal identification and alloy composition testing. Equipped with an adjustable 50kV excitation source, high-performance Si-PIN or SDD detector, smart battery syst
Specifications
- Size
- 254 × 79 × 280 mm
- Weight
- 1.6 kg（with battery）
- Display
- 4.3” industrial-grade resistive touch screen; Auto-brightness
- Detector
- Si-PIN Detector / SDD Detector
- Protection
- Waterproof, dustproof, shockproof case
- Battery Life
- Approx. 8 hours per battery
- Battery Type
- Intelligent battery with MSBUS monitoring
- Connectivity
- USB; Remote setting & maintenance
- Data Storage
- Built-in 32GB storage
- Safety System
- DoubleBeam™ auto sample sensing for radiation protection
- Detection Range
- Mg–U
- Heat Dissipation
- T-slot radiator
- Battery Transport
- Complies with air transport regulations
- Excitation Source
- 50kV / 200μA adjustable; W / Ag / Rh target (optional)
- Safety Accessories
- Dedicated safety rope
