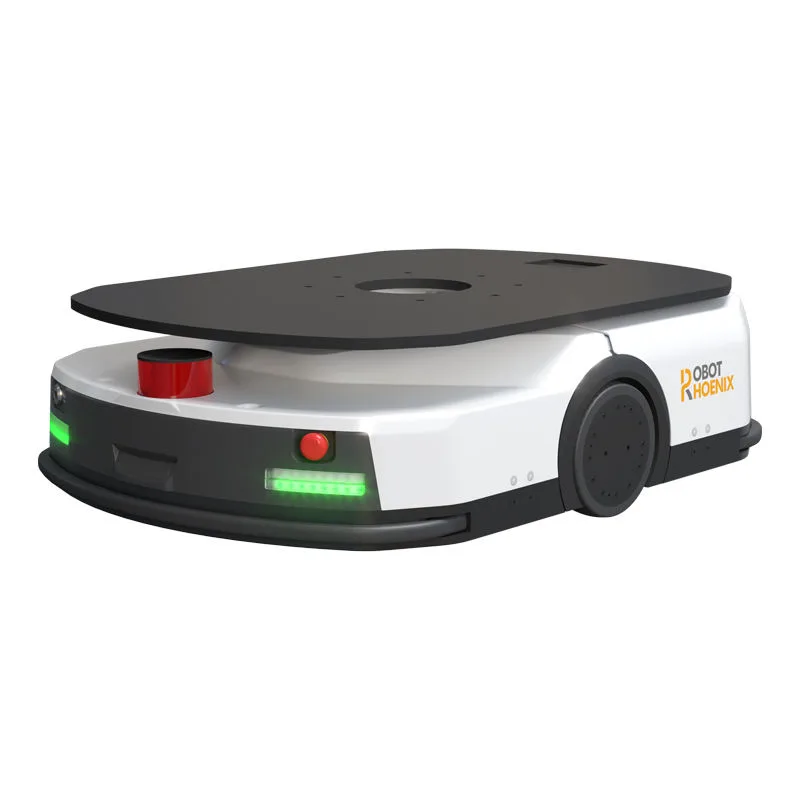

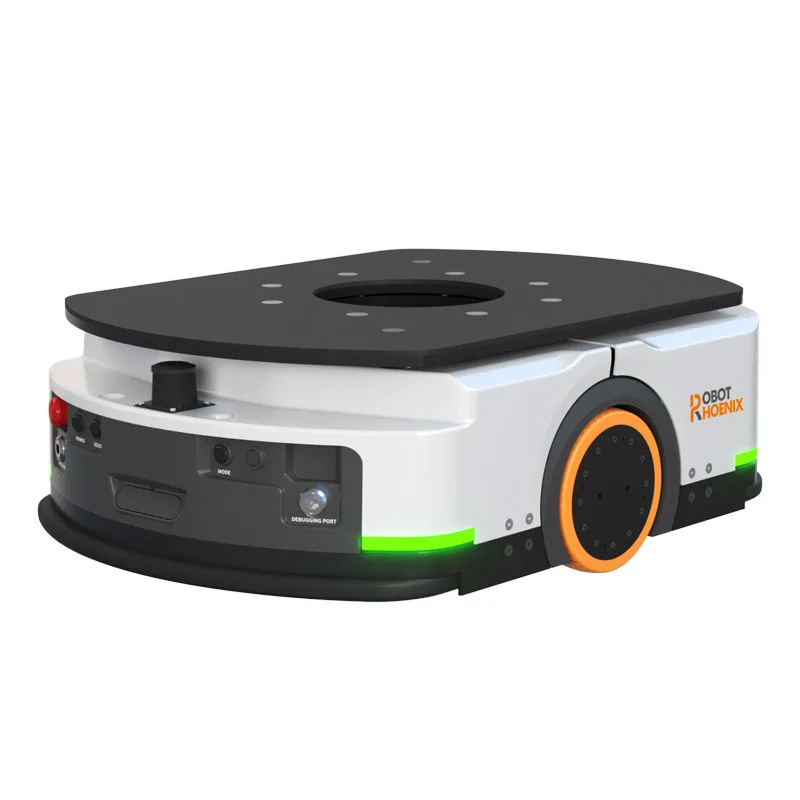

Heavy-Duty AGV Chassis
The Heavy-Duty AGV Chassis is an industrial-grade autonomous vehicle designed for factory, warehouse, and logistics automation. It utilizes a multi-sensor navigation system based on laser SLAM and QR code positioning to perform fully automatic, high-efficiency material transport
Specifications
- Item
- Details
- Material
- Industrial metal structure
- Warranty
- 1 year
- Application
- Industrial automation, warehouse logistics, production line delivery, factory handling
- Lidar System
- Multi-line high-precision LiDAR
- Power Supply
- Lithium battery system
- Product Type
- Heavy-Duty AGV / AMR Chassis
- Working Time
- 8 hours continuous operation
- Certification
- CE / ISO compliant
- Charging Time
- 1.5 hours
- Communication
- Wireless scheduling via WCS / RCS system
- Load Capacity
- 400 – 1500 kg
- Control System
- AGV motion control chip
- Operation Type
- Automatic material handling
- Navigation Type
- Laser SLAM / QR Code dual navigation
- Use Case Examples
- Factory automation, pharmaceutical logistics, food processing warehouses
- Obstacle Avoidance
- Laser obstacle avoidance + piezoelectric contact safety sensors
- Navigation Accuracy
- ±10 mm position / ±1° angle
- Travel Speed (Laden)
- 1.5 m/s
- Travel Speed (Unladen)
- 1.9 m/s
