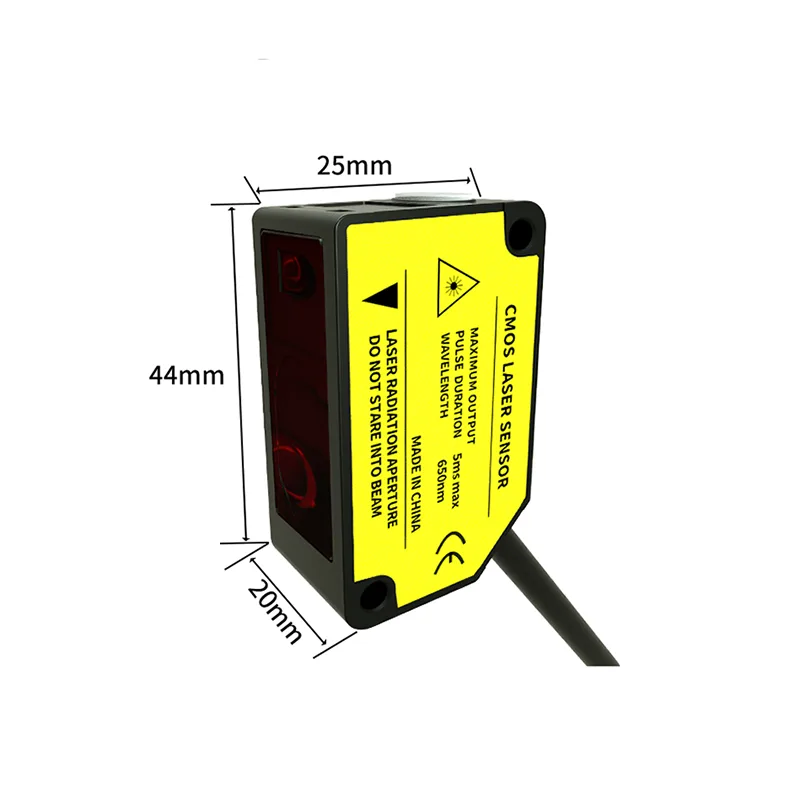

0.01mm Laser Displacement Sensor
This high-accuracy laser triangulation displacement sensor is designed for precise measurement, positioning, and detection tasks in industrial automation. Using a high-precision CMOS image sensor combined with an optimized processing algorithm, it achieves repeat accuracy as fine
Specifications
- Type
- Optical laser triangulation displacement sensor
- Theory
- Laser triangulation principle
- Category
- Details
- Linearity
- ±0.3% F.S.
- Application
- Distance measurement, displacement, flatness detection, presence detection
- Output Type
- PNP
- Beam Diameter
- 120 μm
- Repeatability
- 100 μm
- Series / Model
- FSD22 / FSD22-30P-UI
- Supply Voltage
- 10–30 VDC
- Repeat Accuracy
- 5 μm
- Full Scale (F.S.)
- 10 mm
- Measurement Range
- ±35 mm
- Power Consumption
- Standard low-power design
- Sensor Technology
- High-precision CMOS image sensor
- Measurement Center Distance
- 30 mm
