AseanMachine Selected

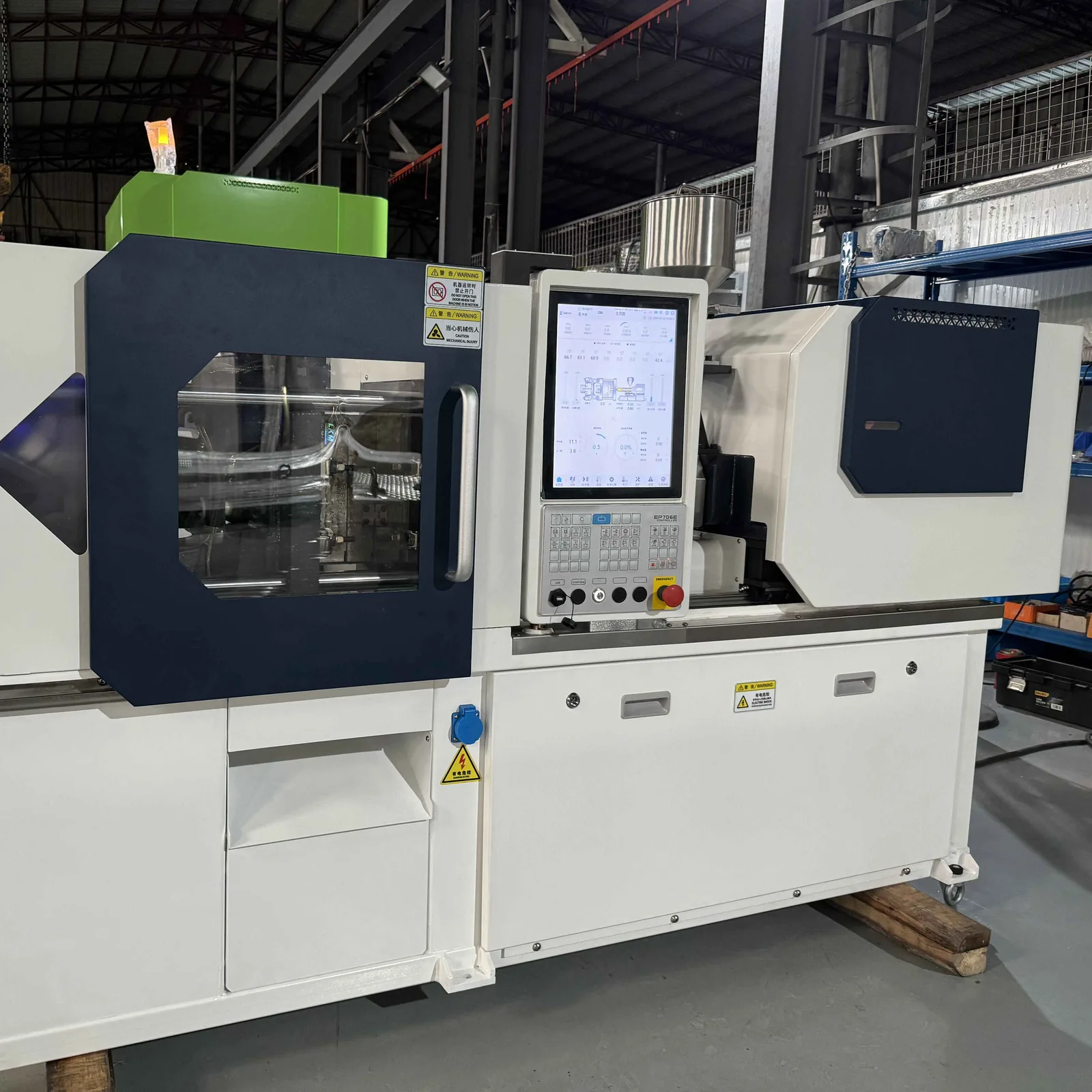

Electric Injection Molding Machine
This fully automatic electric injection molding machine is designed for high-efficiency and high-precision production of thin-wall plastic products such as mobile phone cases. Featuring a horizontal structure and full servo motor control system, it delivers accurate injection, st
Specifications
- Structure
- Horizontal
- Inspection
- Machinery test report and video inspection available
- Application
- Phone cases, thin-wall plastic products
- Screw Speed
- 0–380 rpm
- Machine Type
- Fully electric
- Plastic Type
- Thermoplastic
- Ejector Force
- 7 kN
- Control System
- PLC with servo motor drive
- Ejector Number
- 4
- Ejector Stroke
- 35 mm
- Injection Rate
- 6 g/s
- Machine Weight
- 800 kg
- Screw Diameter
- 20 mm
- Installed Power
- 12 kW
- Screw L/D Ratio
- 22
- Injection Weight
- 22 g
- Mold Opening Stroke
- 340 mm
- Compatible Materials
- PP, PC, ABS, PET, PVC, ABS/PP
- Plasticizing Capacity
- 30 g/s
- Theoretical Shot Volume
- 11 cm³
- Distance Between Tie Bars (W × H)
- 255 × 275 mm
