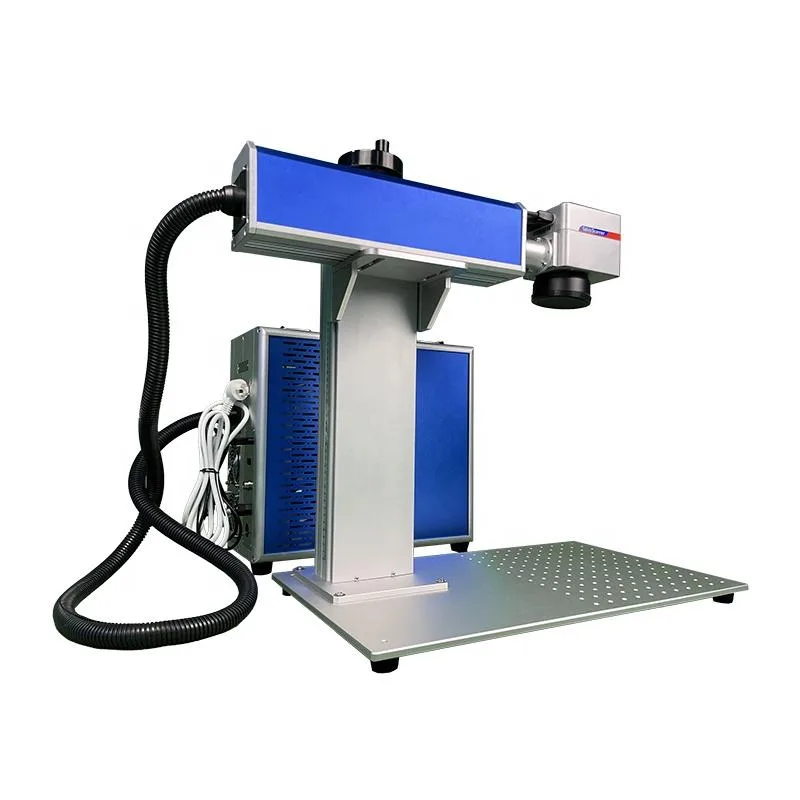

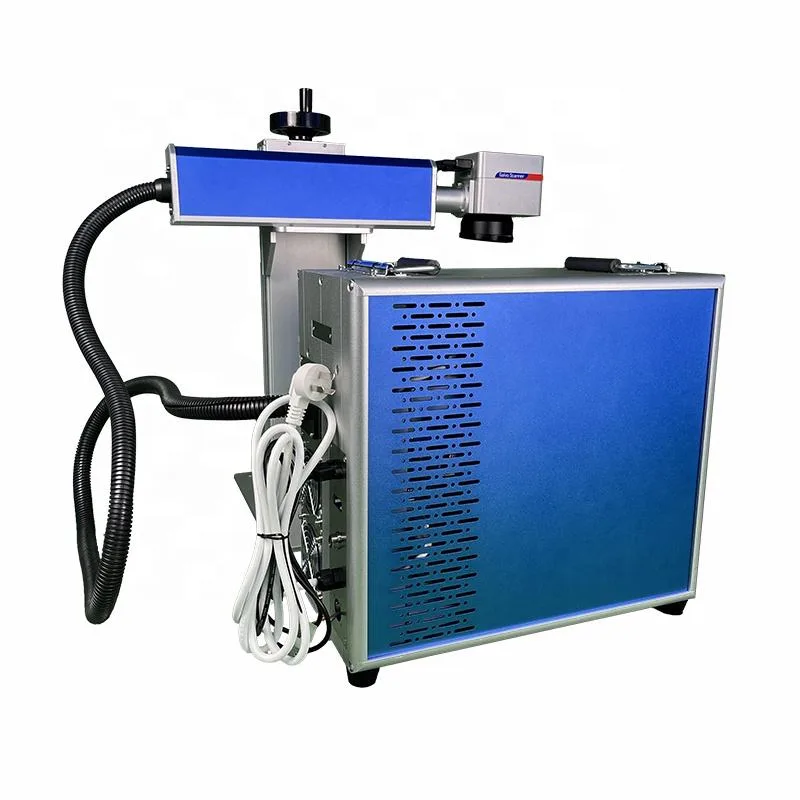

Mini Fiber Laser Marking Machine
This high-precision split fiber laser marking machine is designed for professional engraving and permanent marking in the advertising and manufacturing industries. Equipped with a stable fiber laser source, high-speed galvanometer, and precision field lens, it delivers ultra-fine
Specifications
- Component
- Description
- Field Lens
- High-transmittance precision lens; multiple working areas optional: 75×75mm / 110×110mm / 150×150mm / 175×175mm / 200×200mm / 300×300mm.
- Light Path
- Full fiber transmission; no need for optical path adjustment; simpler operation and higher stability.
- Laser Power
- 20W / 30W / 50W / 100W
- Cooling Mode
- Air Cooling
- Laser Source
- Multiple power options 20W–120W; high stability; long service life over 100,000 hours; delivers fine and consistent beam quality.
- Marking Ruler
- Allows accurate positioning for fast engraving; adapts to varying product heights; simplifies complex processes.
- Marking Speed
- 0–7000mm/s
- Control Switch
- User-friendly switch design; dust-proof construction; easy and safe to operate.
- Control System
- Genuine EZCAD control system; compatible with Windows 7/8/10; stable and powerful marking performance.
- Cooling System
- Integrated air-cooling system; compact, low maintenance, and efficient for long-term operation.
- Elevator Wheel
- High-precision adjustment wheel; aviation-grade aluminum; clear scale for accurate focusing.
- Working Voltage
- AC220V/110V; 50Hz/60Hz (optional)
- Control Software
- EZCAD (or other optional)
- Laser Wavelength
- 1064nm
- Working Accuracy
- 0.02mm
- Working Platform
- Durable aluminum platform; threaded positioning holes for easy and precise product placement; 10mm thick plate ensures high stability.
- Galvanometer Head
- High-precision galvanometer scanning head; fast marking response; stable and accurate scanning performance.
- Minimum Character
- 0.1mm
- Minimum Line Width
- 0.01mm
- Working Environment
- 0–35°C, humidity ≤90%
- Repeatability Accuracy
- 0.003mm
- Graphic Format Supported
- AI, PLT, DXF, BMP, DST, DWG, LAS, DXP
