Channel-Type Food X-Ray Detector
This high-precision channel-type X-ray inspection system is designed for advanced food safety and quality control.With ultra-fine detection capability—down to Ø0.3 mm stainless steel—it identifies foreign objects such as metal, glass, ceramic, stone, bone, and dense contaminants
Specifications
- Model
- 3500D

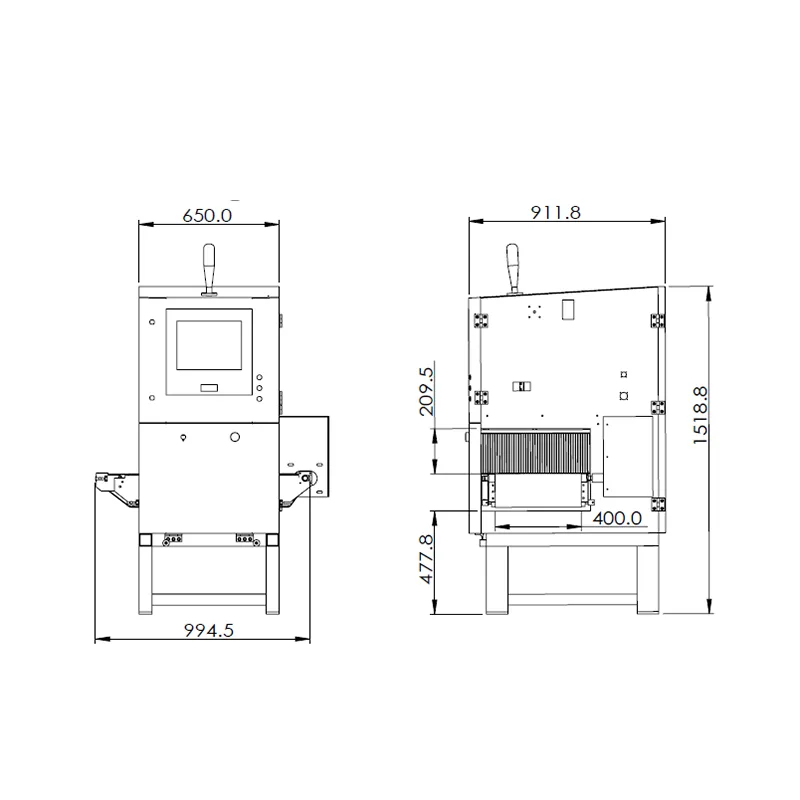

- Dimensions
- 1985 × 915 × 1790 mm (H×W×D)
- Belt Height
- 750 ± 50mm
- Power Supply
- 220V
- X-ray Output
- 80KV, 210W / 100KV, 150W (optional)
- X-ray Leakage
- < 1μSv/hour
- Conveyor Width
- 400mm
- Product Weight
- Approx. 580kg
- Detection Speed
- Max. 75 m/min / 43 m/min; Min. 10 m/min
- Learning Method
- Automatic or manual
- Max. Load Weight
- 20kg (5kg when speed >40m/min)
- Operating System
- Windows 10 Professional
- Power Consumption
- 1.6 kW
- Waterproof Rating
- IP66
- Product Management
- Daily/monthly/model capacity analysis
- Industrial Computer
- 21.5" Touch Screen
- Max. Passing Height
- 225mm
- Decorative Functions
- 16 modes; up to 10,000 product registrations
- Equipment Management
- MTBF, MTTR, error log & analysis
- Operating Environment
- 0°C – 35°C
- Minimum Detection Capability
- Iron: Ø0.3mm × 2mmStainless Steel: Ø0.3mm × 2mmGlass: Ø1.5mmCeramic: Ø1.0mm
