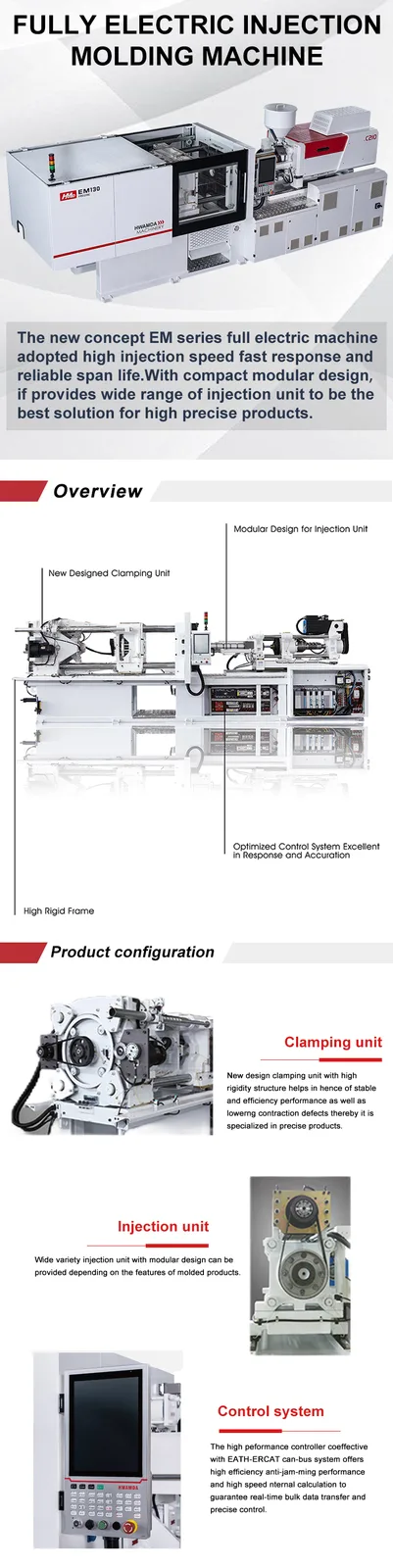

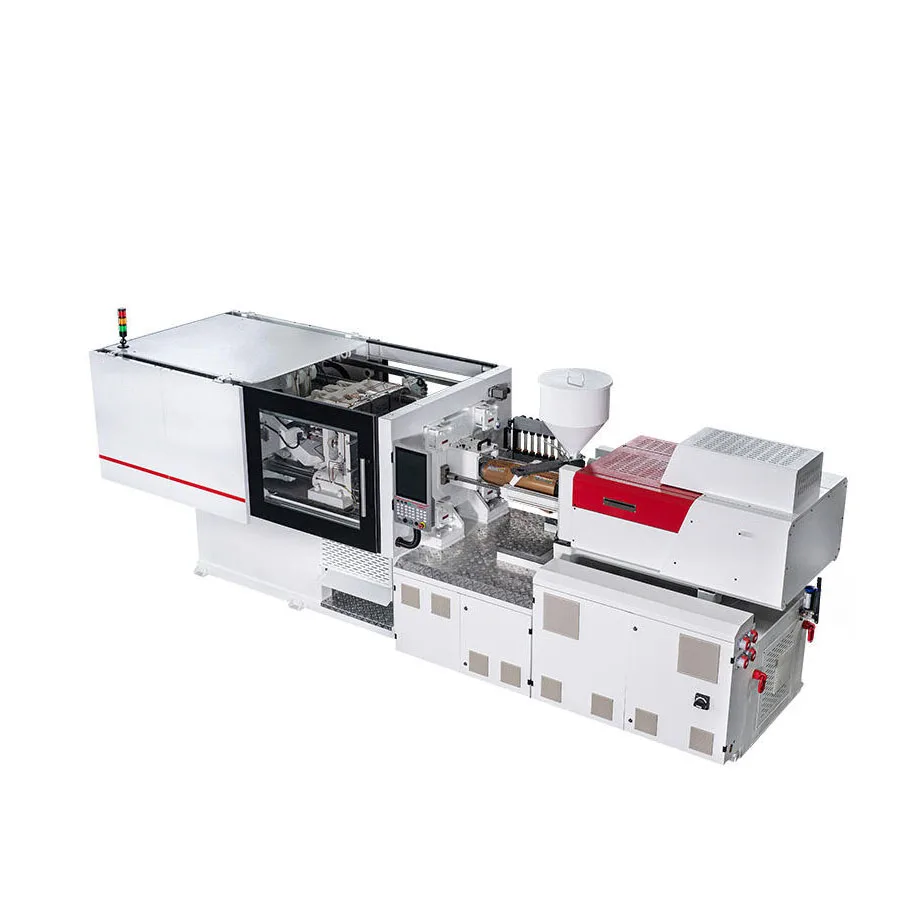

All-Electric Injection Molding Machine
This high-precision fully electric injection molding machine is designed for stable, efficient, and energy-saving production of precision plastic components. Equipped with a high-rigidity clamping unit and a full servo electric drive system, it delivers excellent repeatability, f
Specifications
- Structure
- High-precision, stable performance design
- Inspection
- Machinery test report and video inspection available
- Application
- Automotive parts, electronics components
- Platen Size
- 705 × 705 mm
- Machine Type
- Fully electric injection molding machine
- Ejector Force
- 30 kN
- Control System
- High-performance controller with high-speed bus communication
- Ejector Stroke
- 100 mm
- Injection Rate
- 280 g/s
- Machine Weight
- 5,300 kg
- Screw Diameter
- 32 mm
- Injection Speed
- Up to 350 mm/s
- Installed Power
- 35.8 kW
- Screw L/D Ratio
- 20.5
- Injection Weight
- 102 g
- Mold Height Range
- 150 – 500 mm
- Injection Pressure
- 211 MPa
- Mold Opening Stroke
- 400 mm
- Plasticizing Capacity
- 280 g/s
- Theoretical Shot Volume
- 113 cm³
- Distance Between Tie Bars
- 470 × 470 mm
- Machine Dimensions (L×W×H)
- 5.5 × 1.5 × 2.1 m
