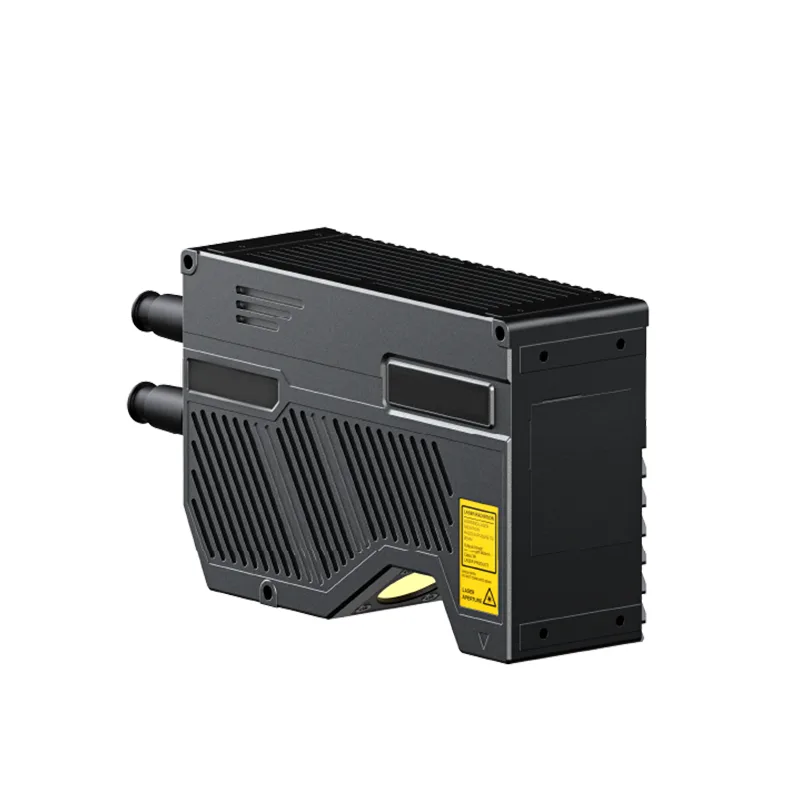

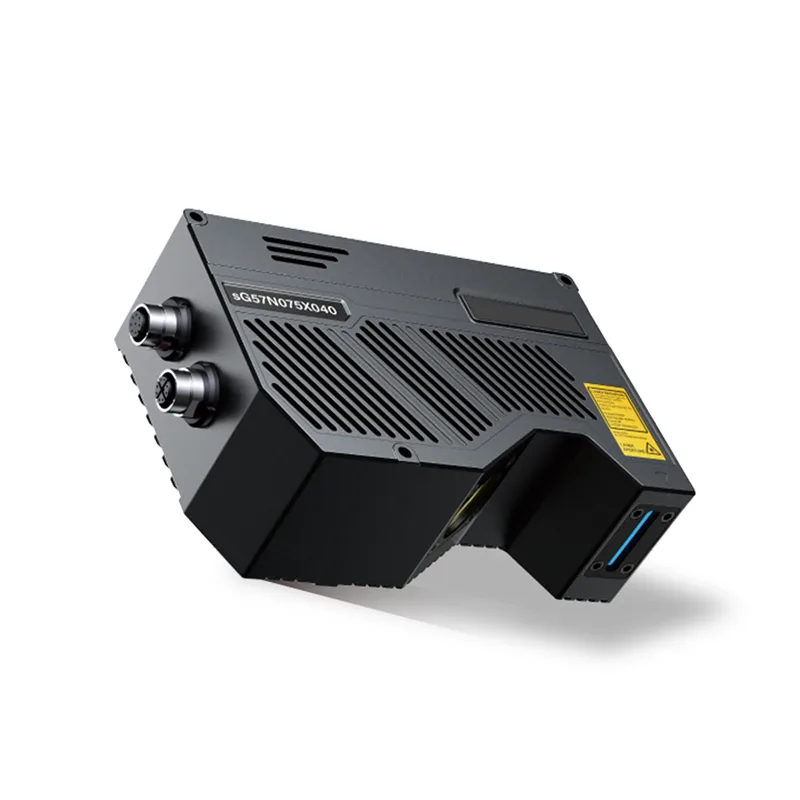

Industrial 3D Laser Profile Camera
This industrial 3D laser profile camera is designed for high-precision inline inspection, dimensional measurement, and defect detection in electronics, semiconductor, precision manufacturing, and automotive component applications. Equipped with a high-speed CMOS sensor and advanc
Specifications
- Weight
- 850–1900 g
- Accuracy
- Repeatability 0.2–0.3 μm; Linearity ±0.03% F.S.
- Warranty
- 1 Year
- Interface
- Gigabit Ethernet
- Application
- Electronics, semiconductor, automotive inspection
- SDK Support
- Halcon / LabVIEW / VisionPro / C++ / C# / Python
- Product Type
- Industrial 3D Laser Profile Camera
- Customization
- OEM / ODM Supported
- Mounting Type
- Fixed Mounting
- Sampling Speed
- Up to 24,000 Hz
- Housing Material
- Aluminum
- Laser Wavelength
- 405 nm / 638 nm
- Inspection Method
- 3D Laser Triangulation
- Protection Rating
- IP67
- Temperature Drift
- 0.01% F.S./°C
- Measuring Range (X-axis)
- 20–922 mm
- Measuring Range (Z-axis)
- ±2–420 mm
