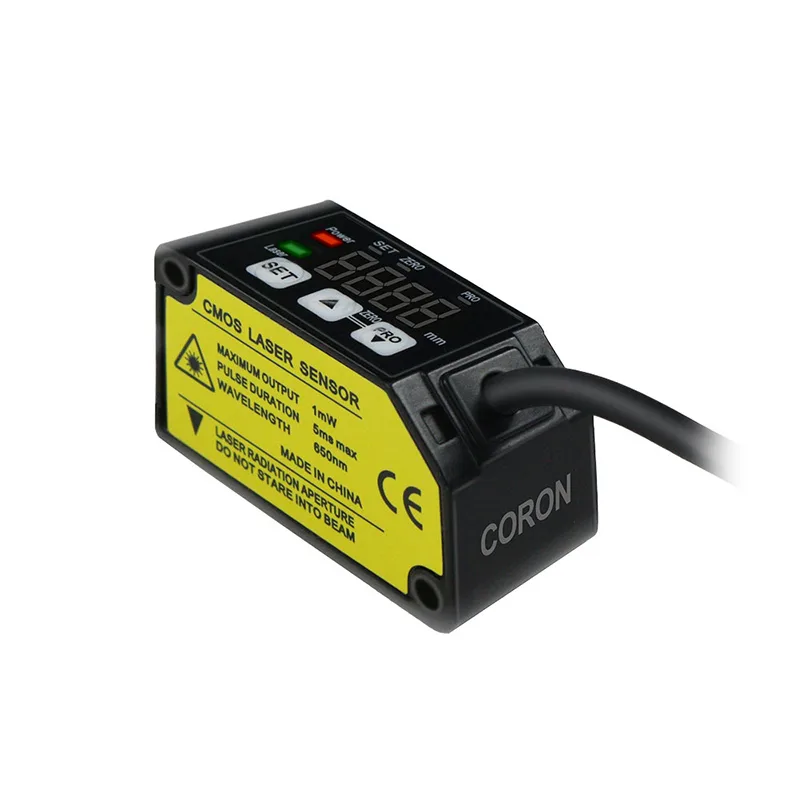

Laser Displacement Sensor
This high-precision laser displacement reflective sensor uses a laser triangulation method to measure extremely small objects with exceptional accuracy. It features a fine laser spot as small as 0.05 mm, making it suitable for detecting micro-components, vibration displacement, t
Specifications
- Type
- Laser reflective displacement sensor
- Cable

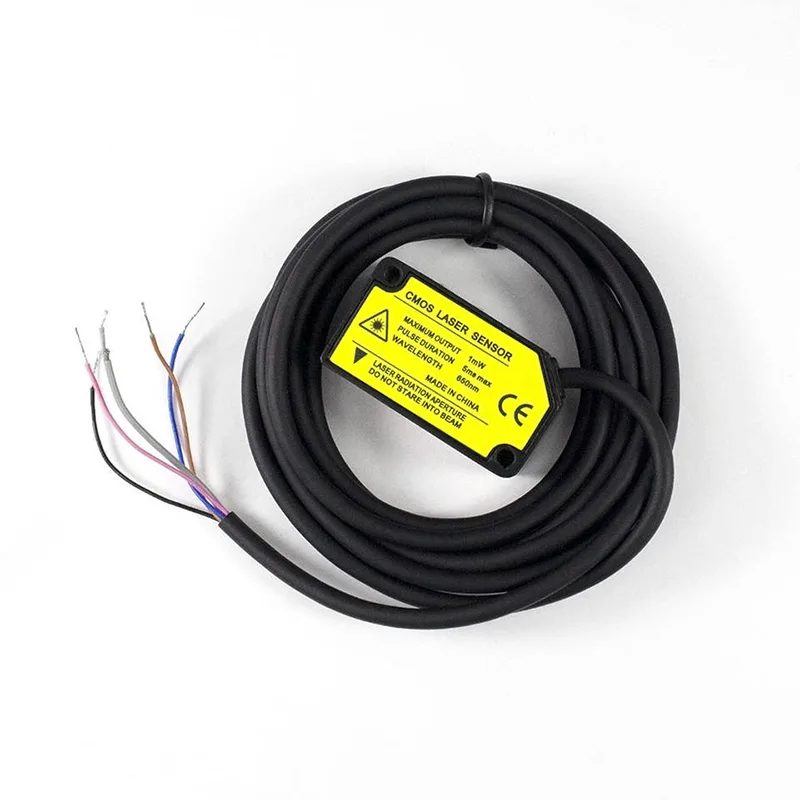

- 5-core composite cable, 2 m
- Weight
- 11 kg
- Display
- 4-digit LED digital display
- Category
- Details
- Humidity
- 35–85% RH (operation), 35–95% RH (storage)
- Linearity
- ±0.1%F.S / ±0.2%F.S
- Dimensions
- 100 × 100 × 432 mm
- Laser Source
- Red laser diode, 655 nm, Class 2, 1 mW max
- Analog Output
- 0–5 VDC, 4–20 mA
- Response Time
- 1.5 ms / 5 ms / 10 ms (switchable)
- Spot Diameter
- 50–500 μm (range dependent)
- Adjusting Mode
- Teaching mode with threshold setting
- Digital Output
- NPN / PNP, 50 mA max
- External Input
- NPN contactless input
- Supply Voltage
- 12–24 VDC ±10%
- Detection Ranges
- 25–35 mm / 35–65 mm / 65–135 mm / 120–280 mm / 200–600 mm
- Housing Material
- Aluminum casting body, acrylic cover plate
- Protection Level
- IP67
- Repeat Precision
- 10 μm / 50 μm / 100 μm / 200 μm / 400 μm / 800 μm
- Current Consumption
- <40 mA at 24 V / <60 mA at 12 V
- Protection Features
- Overload, short-circuit, reverse-polarity protection
- Storage Temperature
- −20 to +60°C
- Operating Temperature
- −10 to +40°C
- Temperature Characteristic
- 0.03%F.S/°C
