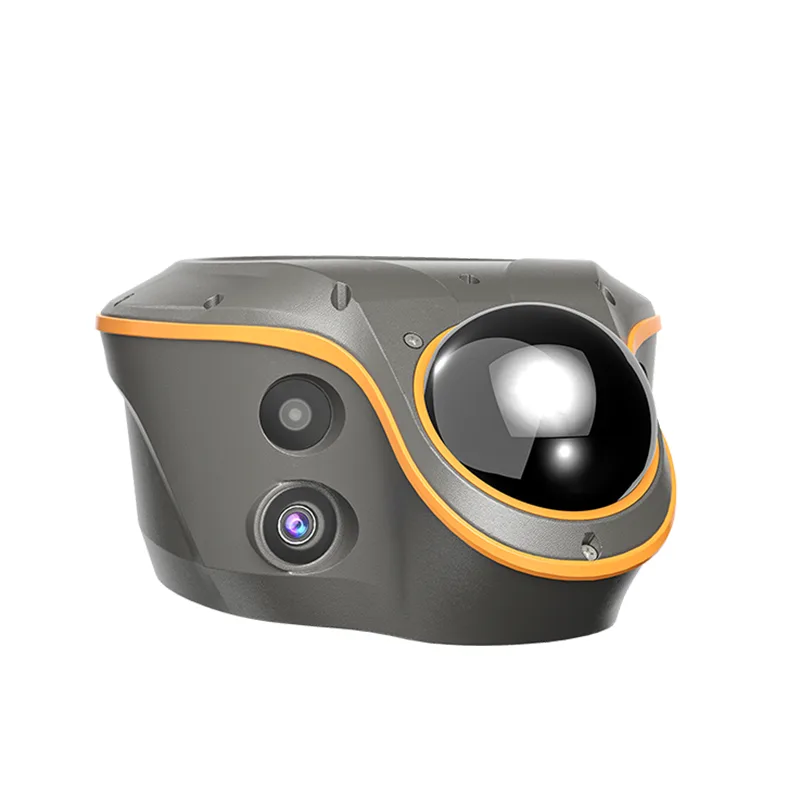

Non-Contact 3D Laser Scanner
This high-precision non-contact 3D laser measurement scanner is designed for accurate positioning and spatial data acquisition in complex and obstructed environments. By integrating laser scanning, multi-constellation GNSS positioning, and visual sensing technology, the device en
Specifications
- Channels
- 1408
- Data Storage
- 64 GB internal, expandable up to 1 TB
- Product Type
- Non-Contact 3D Laser Measurement Scanner
- Supported GNSS
- GPS, BDS, GLONASS, GALILEO, QZSS, SBAS
- Operating System
- Embedded system
- Protection Rating
- IP67 / IP68
- Output Data Format
- RTCM 2.x / RTCM 3.x
- Positioning System
- Multi-Constellation GNSS
- Operating Temperature
- -45 ℃ to +75 ℃
- Laser Data Output Rate
- Up to 860,000 points/second
- Measurement Technology
- Laser + Vision Fusion
- Wireless Communication
- Bluetooth, WiFi, Cellular
- Application Environment
- Urban areas, forests, narrow spaces, obstructed terrain
- Position Output Frequency
- 1 Hz – 20 Hz
- Absolute Measurement Accuracy
- Up to 5 cm in complex environments
